YORKING YDE8600TA-TA3 generator

Name: YORKING YDE8600TA-TA3 generator
Brand: Yorking
Price: 286400.0 DZD
Availability: InStock

DA 286,400.00 DA 399,100.00

Shipping will be calculated at checkout.

YORKING YDE8600TA-TA3 generator is not in stock and will be shipped as soon as available again.

Delivery time: approximately 2 weeks

Collection possible from warehouse Fabrikstr. 1

Collection date after consultation

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

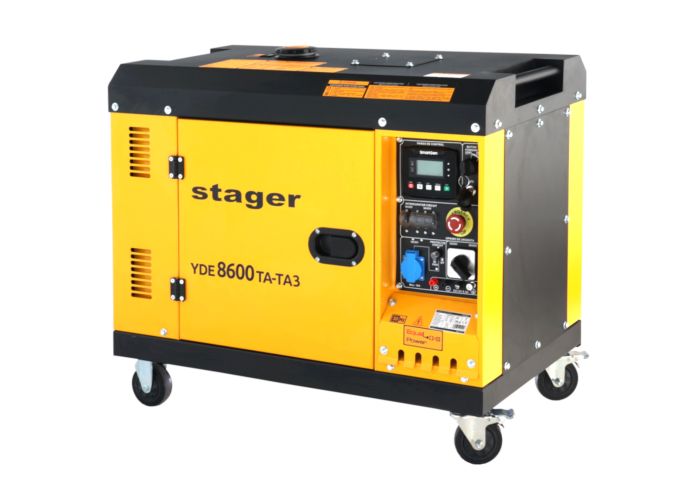

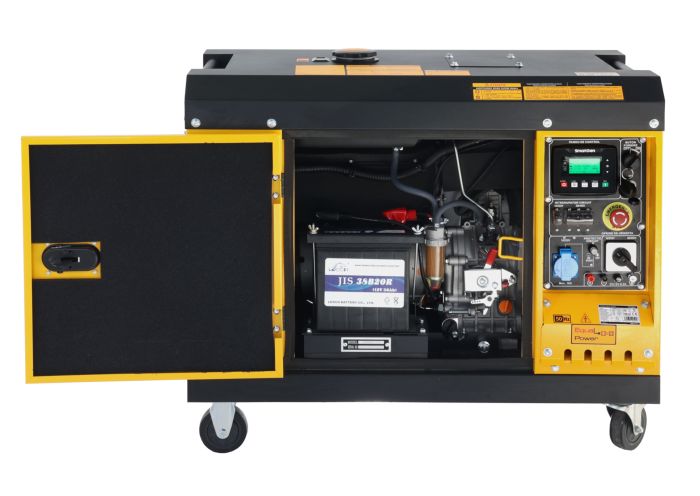

The soundproofed Stager YDE8600TA-TA3 V2 diesel generator is a versatile DualPower unit that can be switched between 230 V (single-phase) and 400/230 V (three-phase) as needed – ensuring optimal generator output for both single-phase and three-phase loads. The maximum output is 7.5 kVA (6 kW) in three-phase operation and 6.0 kVA (6 kW) in single-phase operation; the rated output is 6.9 kVA / 5.5 kW (3~) and 5.5 kVA / 5.5 kW (1~) at 50 Hz. The generator features AVR voltage regulation and a modern SmartGen control panel for monitoring and protection functions and is prepared for connection to an ATS automatic system. The unit is powered by a robust 1-cylinder 4-stroke diesel engine (EU V) with a displacement of 0.498 liters and a speed of 3000 rpm, started via a 12V electric starter (36 Ah battery). The 14.5-liter tank allows for a runtime of approximately 6.5 hours at 100% load; fuel consumption is approximately 2.23 l/h (100%), 1.75 l/h (75%), and 1.23 l/h (50%). Thanks to its soundproof enclosure, the unit is pleasantly quiet at 74 dB(A) at 7 m and is also easy to transport on its wheels; dimensions 955 × 525 × 680 mm, weight approximately 170 kg (net).

category	Technical data
Model	YDE8600TA-TA3 (Equal Power)
Rated power	5.5 kVA / 5.5 kW (1~ 230 V) or 6.9 kVA / 5.5 kW (3 ~ 400/230 V)
Maximum power	6.0 kVA / 6.0 kW (1~) or 7.5 kVA / 6.0 kW (3~)
Nominal voltage	230V (single phase) / 400/230V (three phase)
Rated current	23.9 A (1~) / 9.9 A (3~)
phases	1-phase / 3-phase
frequency	50 Hz
Rated speed	3000 rpm
Power factor (cos φ)	1 (1~) / 0.8 (inductive) (3~)
DC output	12 V / 8.3 A
Tank capacity	14.5 L
Runtime at 100% load	6.5 h
Noise level (LwA)	94 dB(A)
Noise level @ 7 m	74 dB(A)
Protection class	IP23
Insulation class	F
Design	Silent (soundproofed)
excitation	Controlled silicon self excitation, constant voltage
Dimensions (L×W×H)	1005 × 525 × 680 mm (without wheels)
Weight	170 kg
Motor
Engine model	YD192FG
Engine type	1 cylinder, 4-stroke, direct injection, air-cooled
Engine displacement	0.498 L
Engine rated power	7.5 kW @ 3000 rpm
startup system	Electric start
battery	DC 12 V, 36 Ah
starter	1.2 kW
Oil fill quantity	1.7 L
Oil quality	SAE 10W-30
Fuel consumption	1.23 L/h (50%), 1.75 L/h (75%), 2.23 L/h (100%)
steering

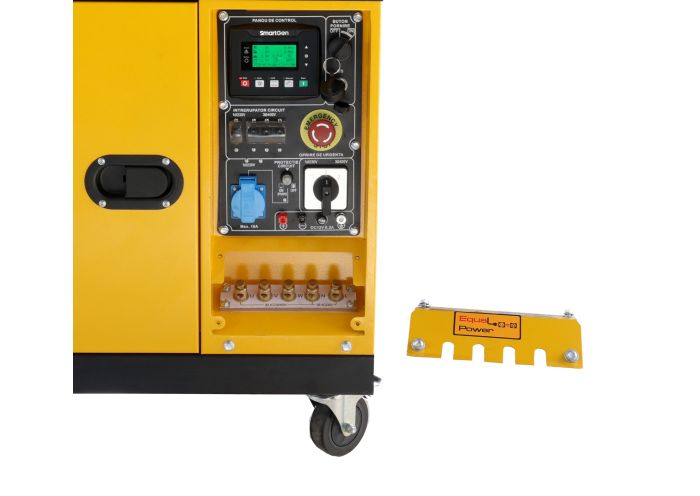

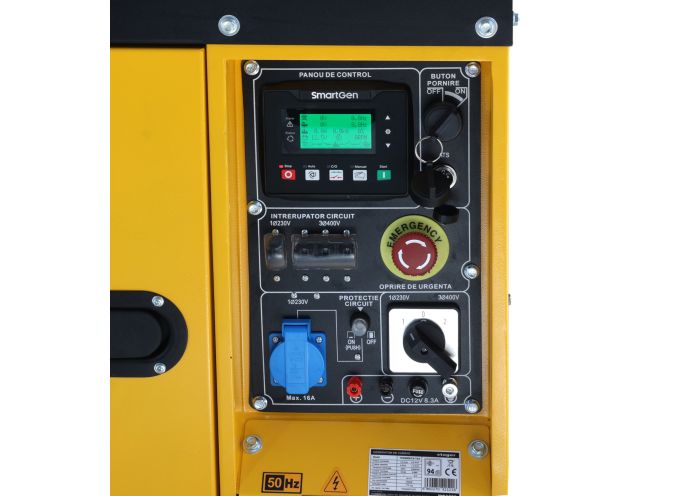

Control Panel	Smartgen HGM4020
