Yorking | SKU: SEV-00838

Reduced by 23%

Inverter Generator Stager DigiS 4000i

Name: Inverter Generator Stager DigiS 4000i
Brand: Yorking
Price: 59000.0 DZD
Availability: InStock

DA 59,000.00 DA 76,900.00

Shipping will be calculated at checkout.

Inverter Generator Stager DigiS 4000i is not in stock and will be shipped as soon as available again.

Delivery time: approximately 2 weeks

Collection possible from warehouse Fabrikstr. 1

Collection date after consultation

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

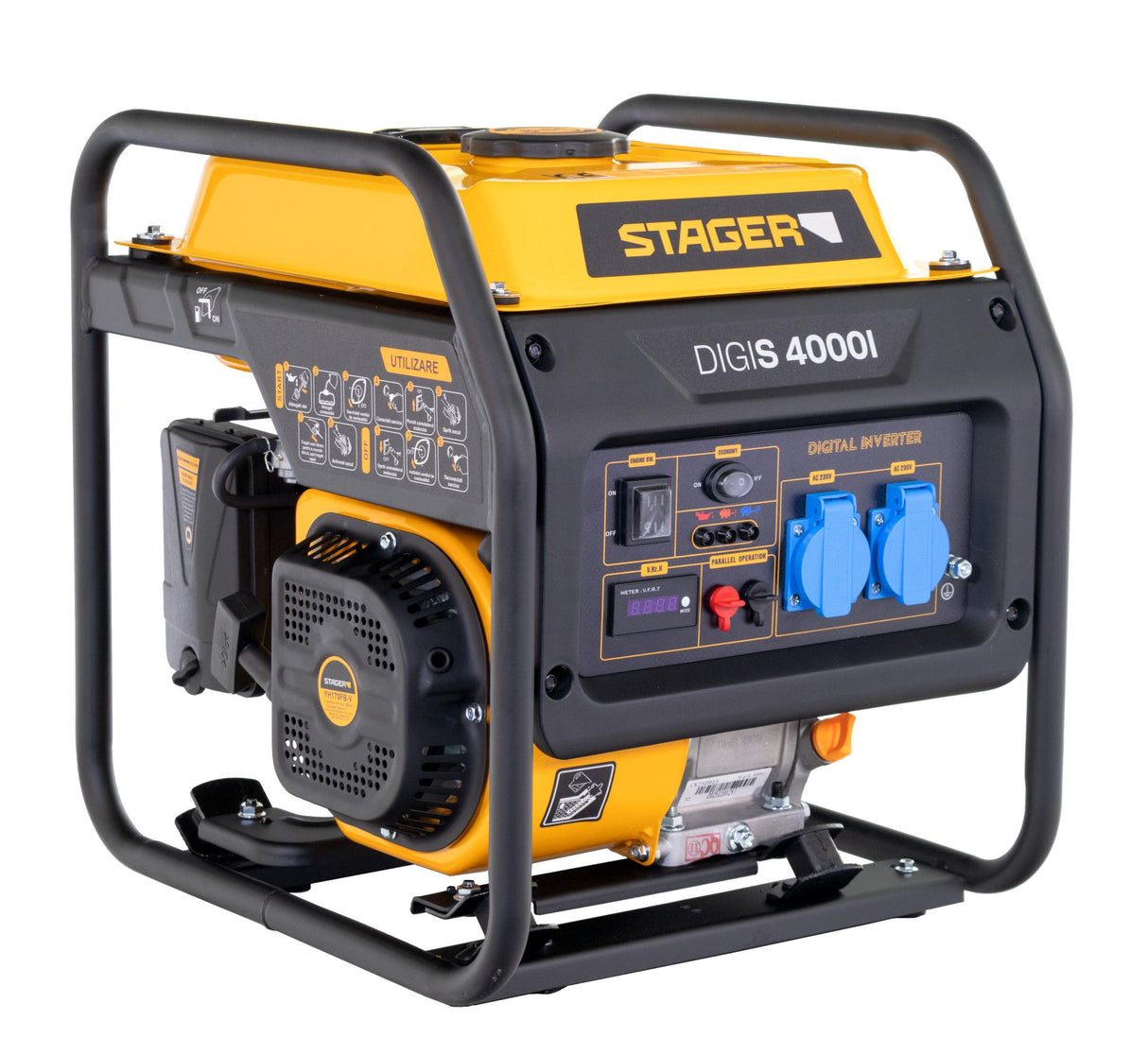

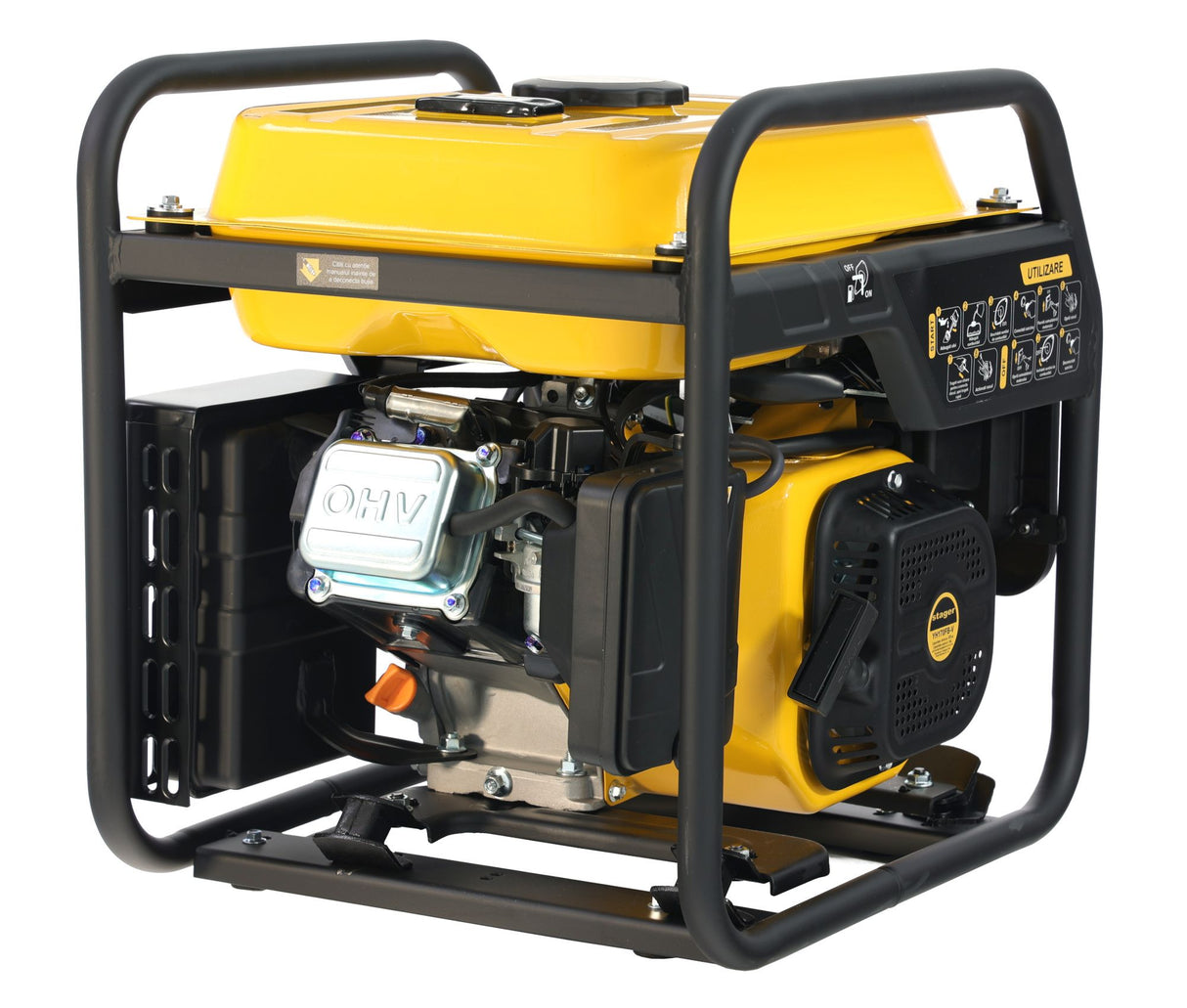

The Stager DigiS 4000i is a powerful digital inverter generator in a robust open-frame design – ideal for anyone needing reliable 230V power on the go or in an emergency, especially when operating sensitive electronics safely. With a rated output of 3.8 kW and a maximum output of 4.0 kW, it provides ample reserves for household, construction sites, events, or leisure activities. Thanks to inverter technology with THD < 3%, the generator delivers very clean voltage – perfect for devices like TVs, computers, or chargers. The 4-stroke engine with 223 cm³ displacement (7.0 HP) operates efficiently; the 6.5-liter tank allows for long run times of up to 13 hours at 25% load, depending on the load. Practical for everyday use: the digital display shows voltage, frequency, and operating hours, and the integrated low oil protection (LED + automatic shutdown) reliably protects the engine. Two 230V sockets with covers are directly available on the control panel. Particularly flexible: two DigiS 4000i units can be coupled via parallel connection to further increase the available power. Weighing around 30 kg and with compact dimensions, the generator remains easy to handle – a strong all-rounder for demanding applications where clean energy and high performance are required.

The Stager DigiS 4000i is a versatile digital inverter generator that bridges the gap between mobile power supply and industrial reliability. Thanks to its open-frame design, it offers better cooling and easy access for servicing. Its modern inverter technology provides stable, clean energy, making it suitable for voltage-sensitive electronics. Typical applications include household emergency power supply, construction sites, outdoor events, and the operation of sensitive devices.

1) Generator Specifications

Rated Voltage: 230 V
Rated Frequency: 50 Hz
Rated Power: 3.8 kW
Maximum Power: 4.0 kW
Rated Current: 16.5 A
Rated Speed: 3,600 rpm
Power Factor (cos φ): 1.0
THD (Total Harmonic Distortion): < 3 % (suitable for electronics)
Noise Level (LwA): 95 dB(A)
Noise Level (@ 7 m, 50 % load): 72 dB
Protection Class: IP23M

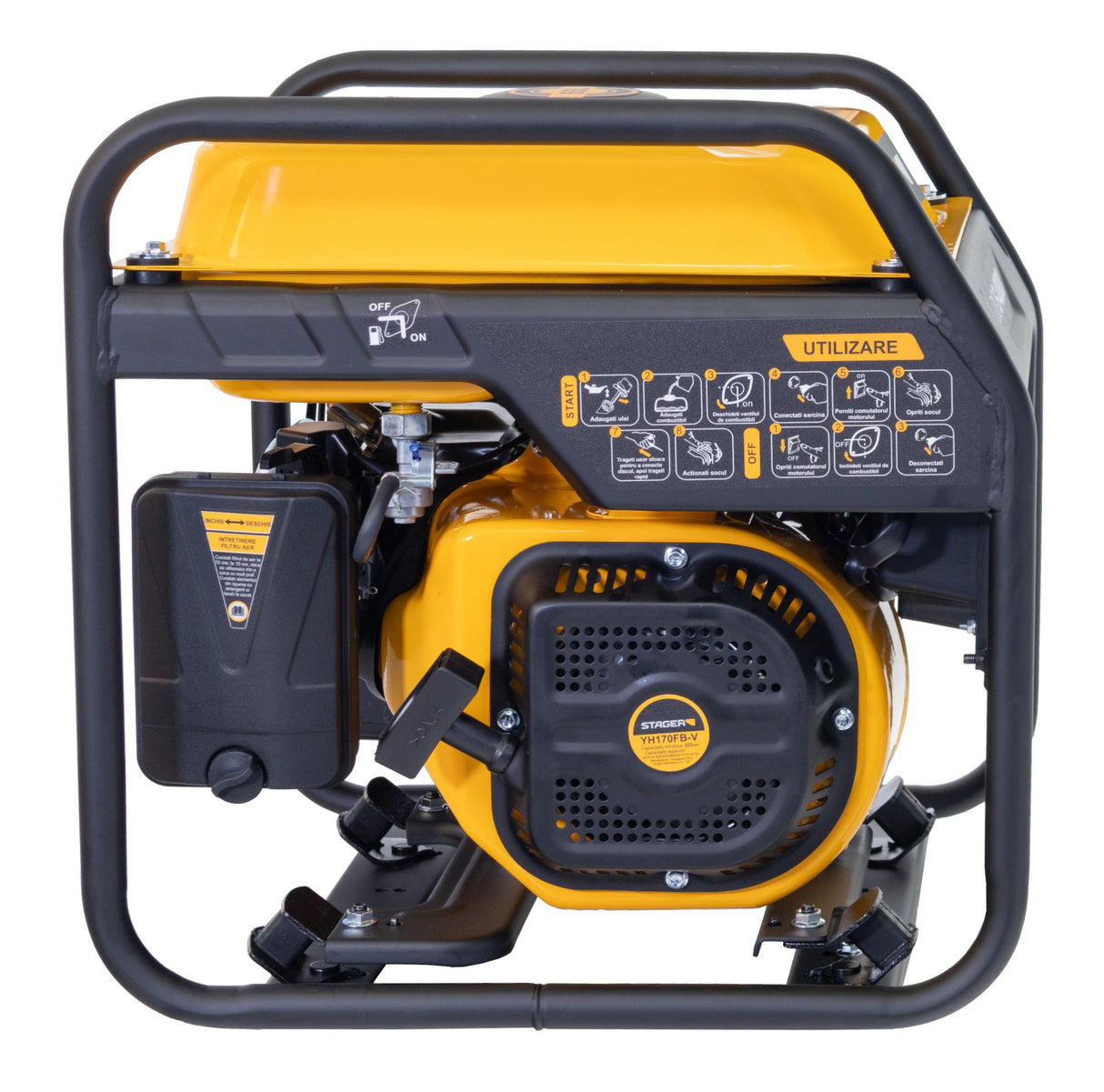

2) Engine Specifications

Engine Model: YH170FB-V
Type: 4-stroke, 1-cylinder, OHV, forced air cooling
Engine Power: 7.0 HP
Displacement: 223 cm³
Compression Ratio: 8.5 : 1
Starting System: Recoil starter (manual)
Ignition System: Electronic
Stator Winding: 100 % Copper (CU)
Rotor Excitation: Permanent magnets

3) Fuel & Runtime

Fuel: Unleaded gasoline
Tank Capacity: 6.5 liters
Consumption:
- at 50% load: 0.84 L/h
- at 75% load: 1.24 L/h
- at 100% load: 1.67 L/h
Runtime (estimated):
- at 25% load: up to 13 hours
- at 75% load: up to 4 hours

4) Lubrication

Oil Capacity: 0.6 L
Oil Type: SAE 10W-30
Lubrication System: Splash lubrication
Low Oil Protection: Yes (LED warning + automatic shutdown)

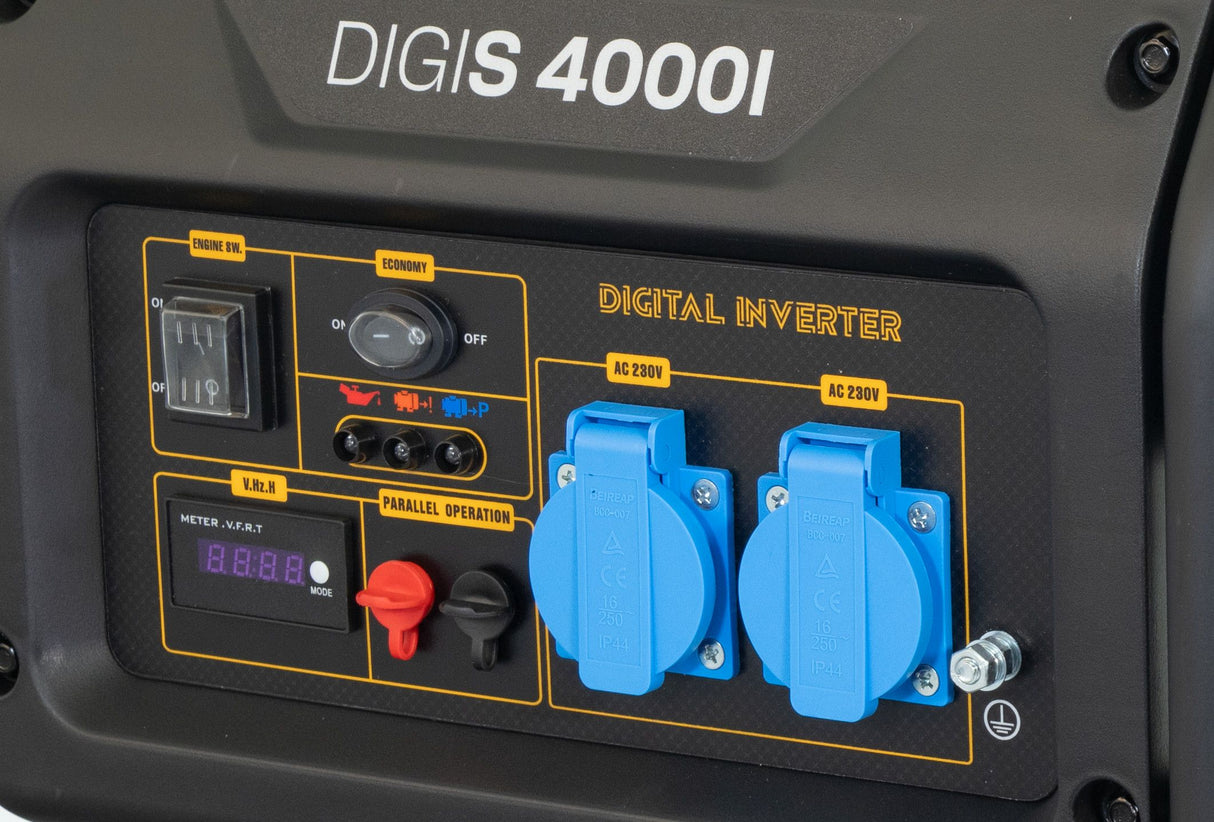

5) Control Panel & Connections

Digital Display: Frequency, voltage, and total operating hours
AC Sockets: 2 × 230 V (single-phase) with protective covers
Parallel Connection: Terminals for parallel operation of two DigiS 4000i (increased power)
Voltage Regulation: Inverter system

6) Dimensions & Weight

Net Weight: 30 kg
Gross Weight: 31 kg
Device Dimensions: 448 × 395 × 440 mm
Packaging Dimensions: 465 × 410 × 485 mm

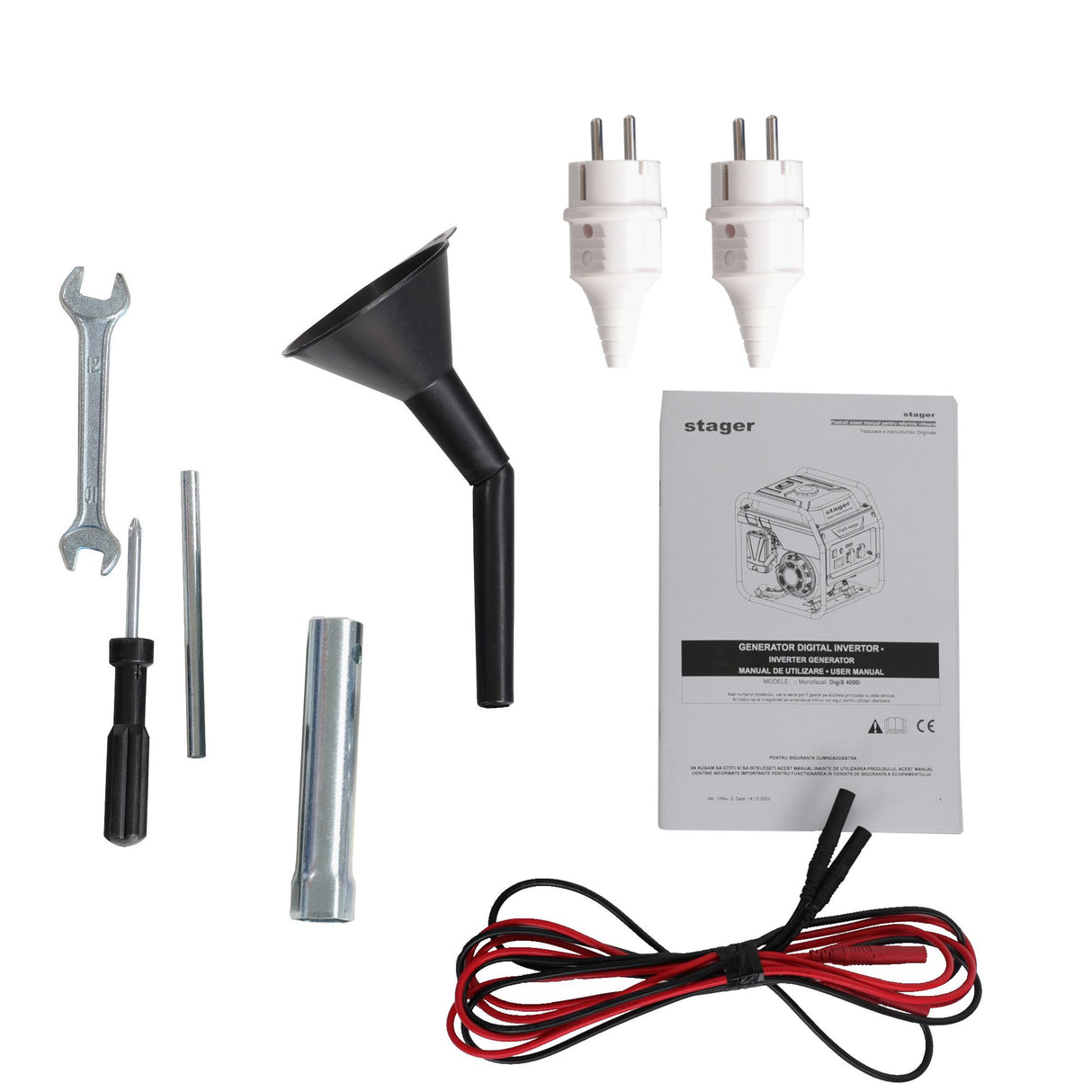

7) Scope of Delivery

1 × Spark plug wrench
1 × Wrench 10–12
2 × 16.5 A single-phase plugs
1 × Funnel
1 × Instruction manual

Key Advantages

Clean Energy: Inverter technology provides a stable sine wave, protecting devices such as laptops, TVs, or medical equipment.
Robust Open-Frame Design: Sturdy steel frame protects components, facilitates transport and maintenance.
Parallel Capability: Two units can be operated in sync – ideal for higher loads.
Efficient: Optimized speed control for a good balance of power and consumption.
