FOGO | SKU: SEV-00899

Sold out

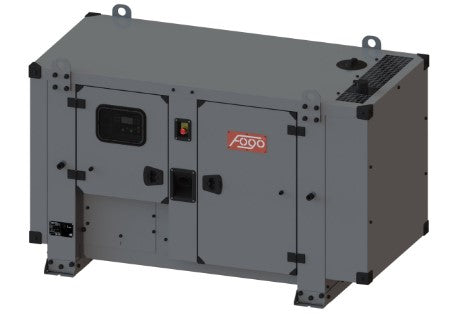

Stationary diesel generator FOGO FD 40 Z5-Q

Name: Stationary diesel generator FOGO FD 40 Z5-Q
Brand: FOGO
Price: 1503200.0 DZD
Availability: OutOfStock

DA 1,503,200.00

Shipping will be calculated at checkout.

Delivery time:

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

Your legal guarantee rights

LEGAL GUARANTEE Minimum two-year legal guarantee protection for goods sold in the European Union. Consumers can claim their rights under the legal guarantee of conformity, for example if goods: do not match the description; do not function as intended. Sellers are liable for any lack of conformity which existed when the goods were delivered, and which becomes apparent within the legal guarantee period. Sellers in such a situation are required to offer: free repair or free replacement; in some cases, a price reduction or full reimbursement. Some countries have a longer legal guarantee period. For second-hand goods, a shorter period may apply, but not less than one year. For more information on your rights in a specific country, scan the QR code below or ask the seller. europa.eu/youreurope/guarantees What to do if you receive non-conforming goods: 1 Contact the seller as soon as possible to report the issue; 2 Provide proof of purchase, such as a receipt, invoice, or bank statement. Sellers and producers may also offer commercial guarantees, which apply independently from the legal guarantee. For example, you may see this GARAN label representing a commercial guarantee of durability offered by the producer at no additional cost and covering the entire good.

Open the legal guarantee notice on Your Europe

Stationärer, schallgedämmter Diesel-Stromerzeuger mit Deutz TD 2.9 L4 (Stage V), 43 kVA / 34 kW ESP und 41 kVA / 33 kW PRP. Bürstenloser FOGO/Linz PRO18M E/4 mit digitaler AVR ±0,25 %, ComAp InteliLite 4 AMF 25, 400 V / 50 Hz. Fester Stromabnahmeanschluss am Schaltanschluss; Steckdosenschrank und Power-Lock optional. 500-l-Tank, ca. 1.200 kg ohne Kraftstoff.

FOGO · DIESEL · STAGE V · STATIONARY

FOGO FD 40 Z5-Q

Stationary diesel generator with Deutz engine and digital voltage regulation for industry, commercial use and professional backup power.

43 kVA34 kW · ESP

41 kVA33 kW · PRP

500 lDiesel tank

56.2 hat 75 % load

Stage VDeutz TD 2.9 L4

approx. 1,200 kgwithout fuel

Short description

Stationary, sound-attenuated diesel generator with Deutz TD 2.9 L4 engine (Stage V), 43 kVA / 34 kW ESP and 41 kVA / 33 kW PRP. Brushless FOGO/Linz PRO18M E/4 alternator with digital AVR ±0.25 %, ComAp InteliLite 4 AMF 25 controller, 400 V / 50 Hz. Fixed electrical connection at the switchgear; socket cabinet and Power-Lock connections optional. 500-litre tank, approx. 1,200 kg without fuel.

Reliable power for demanding applications

The FOGO FD 40 Z5-Q combines an electronically controlled Deutz TD 2.9 L4 with a brushless FOGO/Linz PRO18M E/4. The 2.9-litre four-cylinder engine with common-rail injection runs at 1,500 rpm and meets Stage V emissions standards. The sound-attenuated enclosure in RAL 7024, engine preheating and battery charger support stationary operation.

Digital AVR-DVR regulation measures voltage on all three phases and offers an accuracy of ±0.25 %. The manufacturer specifies total harmonic distortion below 3 % and a short-circuit current of 320 % of rated current for ten seconds. The ComAp controller monitors the engine and alternator and enables manual and automatic operation. A suitable external ATS system is available as an option for automatic mains transfer.

Benefits and equipment

✓ Deutz engine with Stage V36.4 kW net engine power, ECU speed regulation and common-rail injection.

✓ Precise voltage regulationDigital AVR ±0.25 %, three-phase measurement and THD < 3 %.

✓ ComAp InteliLite 4 AMF 25Comprehensive measurement, monitoring, protection and event logging functions.

✓ Large 500-litre tankBase-frame tank with containment compartment; 56.2 hours of autonomy at 75 % load according to the data sheet.

✓ Prepared for low temperaturesEngine block heater with thermostat, glow plugs and battery maintenance charging.

✓ Robust installation and transportSound-attenuated enclosure, four lifting eyes, forklift pockets and anchoring skids.

Applications

Industry and manufacturingPower for equipment and operational infrastructure, subject to application-specific sizing.

Businesses and tradesStationary power for workshops and technical facilities.

Backup powerStandby operation with an optional, appropriately sized ATS system.

Project and site powerPlannable power supply for extended runtimes and varying loads.

Technical specifications

Engine

Manufacturer / modelDeutz TD 2.9 L4

Engine originGermany

Emissions standardStage V

Net engine power36.4 kW

Speed / regulation1,500 rpm / ECU

Displacement / cylinders2.9 l / 4

InjectionCommon Rail

FuelDiesel EN 590; HVO EN 15940 in accordance with manufacturer instructions

Electrical system12 V

Oil sump capacity9.0 l

Coolant capacity16.0 l

Starting systemElectric start, 100 Ah starter battery

Cold-start assistanceGlow plugs and thermostatically controlled engine preheating

Alternator and voltage regulation

Manufacturer / modelFOGO / Linz PRO18M E/4

Alternator originItaly

DesignBrushless, single-bearing, direct engine coupling

Alternator rated power42.0 kVA

Voltage / power factor400 V / cos φ 0.8

Protection rating / insulation classIP23 / H

Insulation specificationMarine, according to the product page

Voltage regulationDigital AVR-DVR, three-phase voltage measurement

Regulation accuracy±0.25 %

AVR power supplyAuxiliary winding

Total harmonic distortion THD< 3 %

Short-circuit current320 % of rated current for 10 s

Efficiency89.4 %

Subtransient reactance Xd″7.4 %

Reference temperature40 °C

Power ratings and electrical data

Maximum ESP power43.0 kVA / 34.0 kW

PRP rated power41.0 kVA / 33.0 kW

PRP rated current59.0 A

Voltage / frequency / phases400 V / 50 Hz / three-phase

Performance classG2 according to ISO 8528-5

PRP operationContinuous operation under variable load; average load over 24 h must not exceed 80 % PRP, according to the data sheet

ESP operationEmergency standby operation under variable load, maximum 500 h/year; average load over 24 h must not exceed 80 % ESP, according to the data sheet

Tank, consumption and runtime

Fuel tank capacity500 l

Tank designBase-frame tank with containment compartment, two internal filler openings and fuel gauge

Consumption at 50 / 75 % PRP5.7 / 8.0 l/h

Consumption at 100 / 110 % PRP10.4 / 12.5 l/h – manufacturer figures, not approval for continuous overload operation

Autonomy at 75 % load56.2 h according to the manufacturer

Autonomy at 100 % load43.2 h according to the manufacturer

Connections, controller and protection

Power output connectionFixed switchgear connection; project-specific design and installation

Circuit breakerSchneider Z63/4 with trip coil

Standard socketsNo Schuko/CEE sockets are listed as standard equipment in the data sheet

Optional power outletPower-Lock connections or outlet cabinet with sockets

ControllerComAp InteliLite 4 AMF 25 (IL4-AMF25)

Operating modesManual and automatic; automatic generator start

Measurement functionsThree-phase current measurement, mains/alternator voltage, active, reactive and apparent power, energy meters

MonitoringEngine/alternator monitoring, battery monitoring, operating-hour and maintenance counters

Event logUp to 350 entries

InterfacesCAN bus, USB; Modbus and SNMP support

ExpandabilityUp to two additional communication or I/O modules

Optional remote monitoringEthernet, 4G/GPS, WebSupervisor; SMS/email and geofencing with the CM2-4G-GPS module

Operation / accessGraphical interface, real-time clock, three password-protected access levels and PLC functions

Additional signals according to the data sheetBinary inputs 0; outputs 0; measurement inputs 3

Protection / alarmsEmergency stop button, audible fault indication, oil pressure and engine temperature measurement

Mains transferExternal ATS system optional; not included as standard

Dimensions, weight and noise

Length × width × height2,365 × 1,200 × 1,600 mm (236.5 × 120 × 160 cm)

Weight without fuelapprox. 1,200 kg

EnclosureSound-attenuated, RAL 7024

Sound pressure LpA at 7 m64.2 ± 1 dB(A)

Guaranteed sound power level LwA91 dB(A)

Transport / installationFour lifting eyes, front and side forklift access, skids for ground anchoring

Standard equipment, options and maintenance

Engine equipmentElectronic speed governor, glow plugs, engine block heater with thermostat, fuel filter with water separator

Operating fluids according to the data sheetTitan Cargo MAXX II 5W-30 engine oil; Fuchs Maintain Fricofin LL 50 coolant

Additional standard equipment100 Ah starter battery, transformer battery charger, coolant filler on the enclosure roof, vibration dampers, exhaust silencer

OptionsManual oil drain pump, battery isolator, ATS, Power-Lock, socket cabinet, GPRS/Ethernet/RS-485/RS-232 communication cards, remote display

Further optionsExternal lockable fuel filler, leak sensor, external tank 1,000–10,000 l, fuel filling system; transport and commissioning on request

Fuel filter500 h / 1 year

Oil and oil filterInitially after 100 h, then every 500 h / 1 year

Coolant2,000 h / 2 years

Air filter / battery1,000 h / 2 years

Electrical inspectionIn accordance with local requirements

Manufacturer part number / code50812 / F.0040.Z5ZC2-Q2365T500-02

Notes on fuel, sizing and warranty

HVO: According to the data sheet, HVO to EN 15940 is permitted. Rated engine and generator power may be reduced by up to 5 %; consumption figures may vary. The manufacturer instructs users not to mix diesel and HVO.

Installation: Electrical integration and sizing must be carried out for the specific project by a qualified contractor. The socket cabinet, Power-Lock and ATS are optional accessories. Cable specifications in the manufacturer data sheet do not replace site-specific design.

Manufacturer warranty: For emergency standby operation, the data sheet specifies 60 months, limited to 1,000 operating hours, subject to the prescribed regular inspections. For continuous operation, it specifies 12 months or a maximum of 1,000 operating hours. The applicable manufacturer conditions apply; statutory warranty rights remain unaffected.

Technical information according to the FOGO product page and data sheet, August 2026. Images may show optional equipment.

Plan your power supply

We help you size the generator, select the mains transfer system and coordinate connections, installation and delivery.

Request advice Manufacturer data sheet (PDF, German)
