Yorking | SKU: SEV-00075

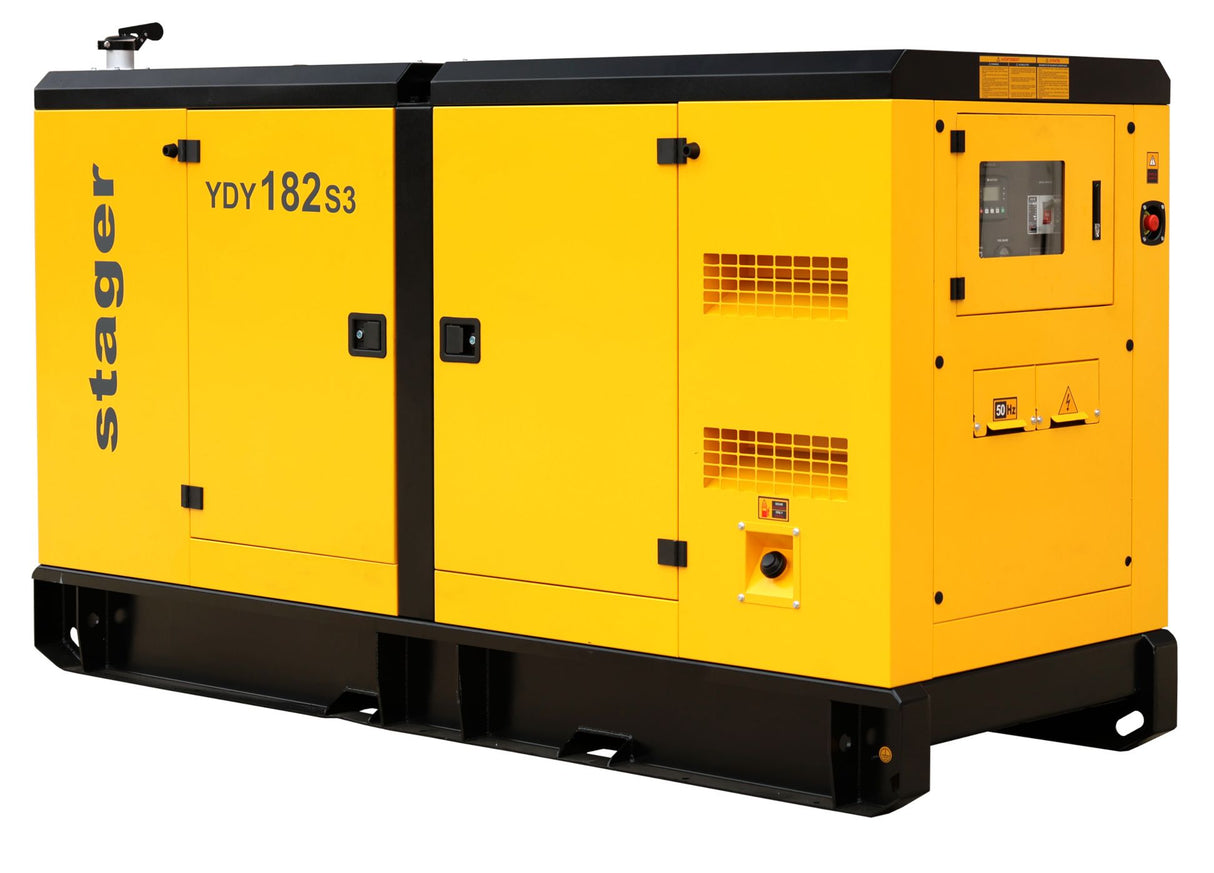

Power generator YORKING YDY 182 S3

Name: Power generator YORKING YDY 182 S3
Brand: Yorking
SKU: SEV-00075
Price: 2477400.0 DZD
Availability: OutOfStock

DA 2,477,400.00 ~~DA 3,870,400.00~~

Shipping will be calculated at checkout.

Delivery time: approx. 12 weeks

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

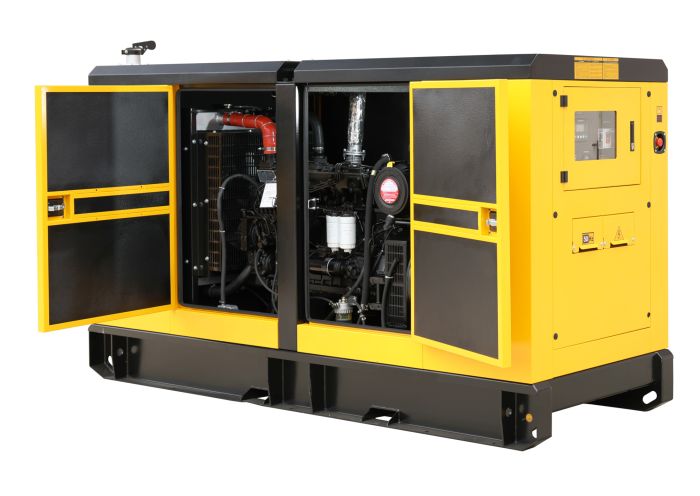

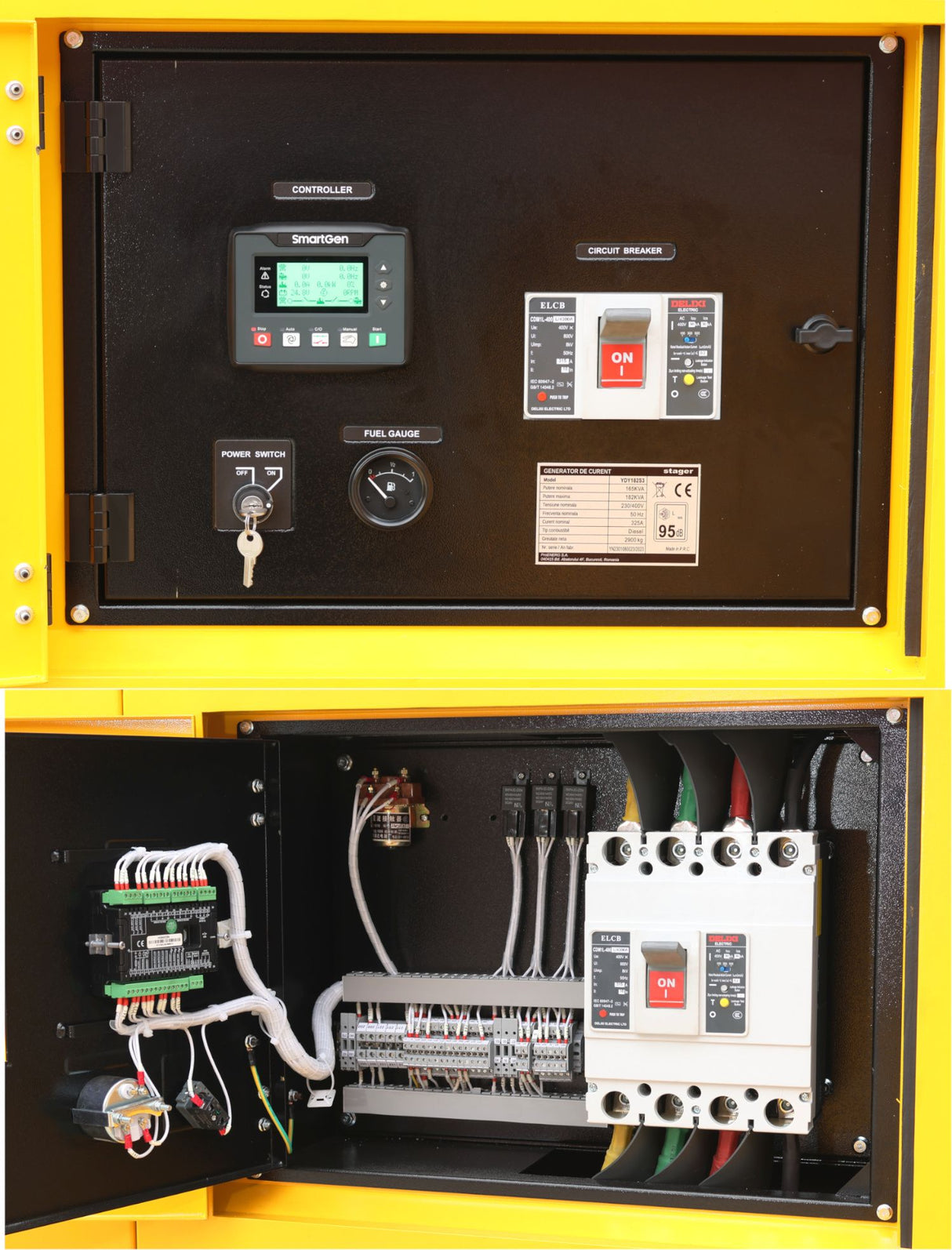

Diesel power generator, 3 phase 230 volt / 400 volt, Super Silent (closed, noise-insulating housing), motor LR6A3L-DA, max. power 182 kVA, nominal power (POWER) 165 kVA, low oil level alarm, electric starter, new AVR (Automatic Voltage Regulator) ensures automatically regulated output voltage, digital control panel, water cooling, 6 cylinders, 4 doors with 180° opening for better maintenance, engine speed 1,500 rpm, high-quality digital control with engine monitoring, modern diesel technology, 2 Schuko sockets 230 volts , 400 volt terminal strip, (English operating instructions), weight: approx. 2600 kg

 ATS Box 1 (automatic emergency power switch) available on request

Phases		3-phase
Frequency	Hz	50
Output voltage AC	Volts	230 / 400 volts
Output current	AC A	238 A
Rated power	kVA	165
Maximum performance	kVA	182
Motor speed	RPM	1500
Power factor	Cos Φ	0.8
Number of poles		4
AVR (Automatic Voltage Regulator)		Yes
Operation		Digital control unit
ATS (automatic emergency power)		on request
Generator	YORKING	Y274G
Excitation system		single bearing, AVR, brushless
Isolation	Class	H
Housing version		Ultra-Silent (closed, noise-insulating housing
Fuel tank volume	Liters	350
Runtime at 75% load		12.3 hours
Noise level	dbA (7m)	93
Weight	Kg	2200
Dimensions (L x W x H)	mm	3100 x 1130 x 1700
Start system		electric
Starter		DC 24V, 6 kW
Battery (maintenance-free)		24V 80 Ah
Engine oil		SAE10W30
DIESEL ENGINE	YTO	LR6B3L-DA
Cycle x cylinder		4 X 6 in line
Cooling system		Water
Diameter x stroke		110 x 125 mm
Displacement	ccm	6.870
Motor power	KW/rpm	155 / 1,500
