SDMO | SKU: SEV-00152

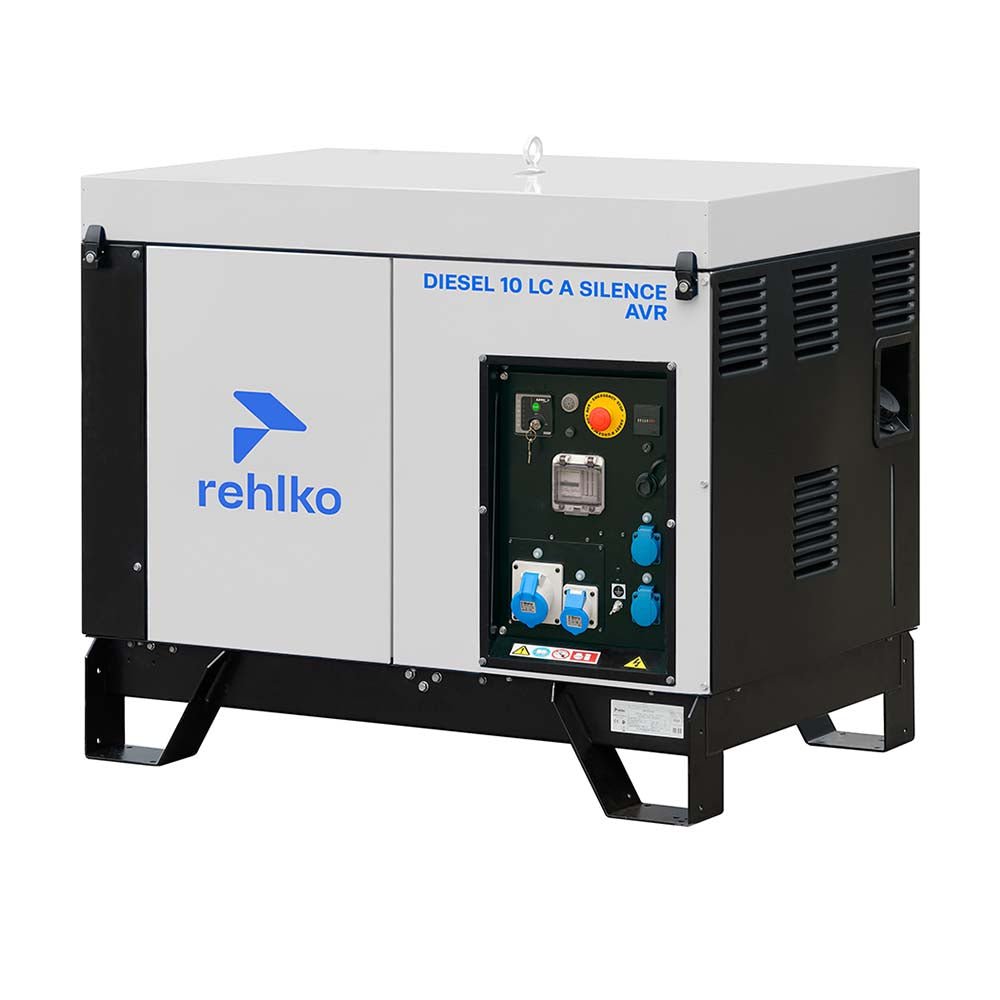

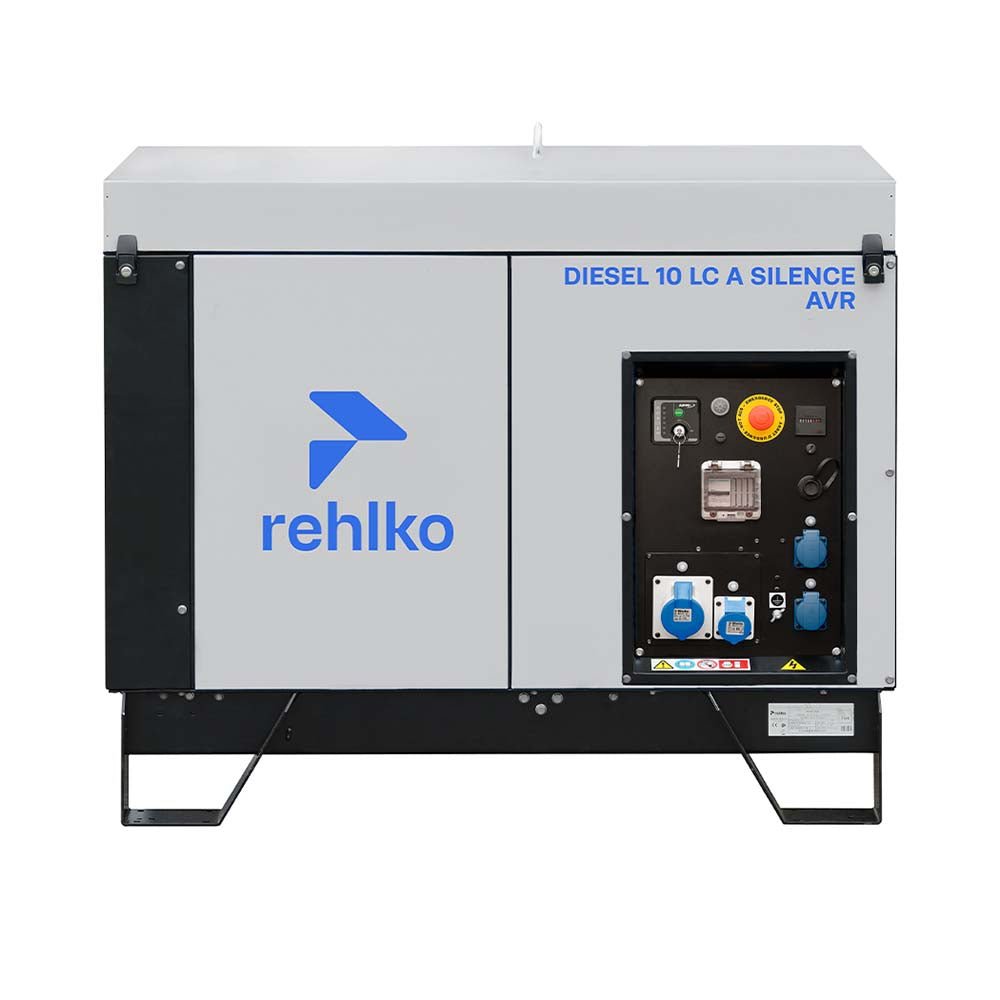

Power generator SDMO DIESEL 10 LC A Silence AVR C5

Name: Power generator SDMO DIESEL 10 LC A Silence AVR C5
Brand: SDMO
SKU: SEV-00152
Price: 906200.0 DZD
Availability: InStock

DA 906,200.00 ~~DA 1,182,000.00~~

Shipping will be calculated at checkout.

Delivery time: about 3 days

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

Diesel power generator, soundproofed, electric start, IP 23, KOHLER engine KDW702-H C5, voltage and frequency stable according to DIN 6280, automatic oil shortage switch-off, large tank 27 liters, autonomy 10.4 hours, maximum power 10.375 kVA for a variety of uses, 100% stable running, maintenance-free battery, sockets 1 x 230 volt 10/16A circuit breaker, 1 x 230 volt 16A circuit breaker, 1 x 230 volt 32A circuit breaker, connection interface with operating hours counter + display + APM202, AVR control, weight: 310 kg

Diesel 10 LC A Silence AVR C5

General technical data
Series	Diesel
Frequency (Hz)	50
Max power (LTP) (kW)	8.3
Max power (LTP) (kVA)	10,375
Rated voltage (V)	230
Number of phases	Single phase
Sound power, guaranteed Lw(A)	94
Sound level dB(A) in 7m	65

Technical data engine
Make engine	Carbon Diesel
Motor Type	KDW702-H C5
Valve arrangement	Diesel O.H.V.
Start	Electrical
Fuel	Diesel
Autonomy (h)	10.4
Consumption (L/h)	2.6
Tank (L)	27
Low oil shutdown	Yes
Displacement (cc)	686
Oil capacity (l)	1.6

Technical data generator
Model	Synchronous
Technology	Ring and brush
Control	AVR
Protection class	IP 23
Insulation class	H

Connections and control panel
1 connection 230V 10/16A - circuit breaker + 1 connection 230V 16A - circuit breaker + 1 connection 230V 32A - circuit breaker + operating hours counter + display +APM202

Dimensions and weight
Length (cm)	121.10
Width (cm)	79
Height (cm)	105.60
Net weight (kg)	310
