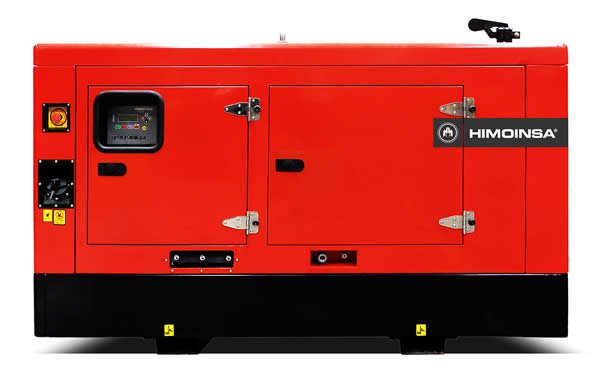

Power generator HIMOINSA HYW - 35 T5 soundproof hood
DA 1,874,700.00
DA 2,204,400.00
Basic price
/
Not available
HYW - 35 T5
|
Engine specifications 1,500
Rated power: 30.7 prp ; 34.1 standby Manufacturer: YANMAR Model: 4TNV98 IGEHR Engine type: Diesel four-stroke Type of injection: Direct Type of intake: Natural Cylinders, number and arrangement: 4 - L Diameter x travel: 98 x 110 Total displacement: 3.319 Cooling system: coolant Specifications engine oil: SAE 3 class 10W30 / API grade CD,CF Compression ratio: 18.5 Fuel consumption 100% PRP: 7.60 Fuel consumption 75% PRP: 5.70 Fuel consumption 50% PRP: 4.05 Oil consumption under full load: 0.27 Maximum oil quantity: 10.5 Total quantity of coolant: 9 Regulator type mechanical Air filter type dry Inner diameter outlet exhaust pipe: 45 Diesel engines Four-stroke engines Electric starter 12V Radiator with pressure fan Filter separator (stand visible) Mechanical control Dry air filter Protection devices for hot parts Protection devices for moving parts Three-phase generator
Poles: 4 Connection type (standard): Star - series Coupling type: S-3 11"1/2 Insulation protection class: Class H Mechanical protection class (according to IEC-34-5 ): IP23 Control system: Self-excited, without brushes Voltage regulator: A.V.R.(Electronic) Type of holder: Single bearing version Coupling system: Flexible disc Type of cover: Standard (vacuum impregnation) Electrical system
Electrical panel for control and circuit breakers, with measuring devices and control center (according to requirements and configuration) Four-pole thermomagnetic circuit breaker Adjustable differential protection (time and sensitivity), included as standard in the M5 and AS5 panels with thermomagnetic circuit breaker Battery charger (included in units with automatic control panel) Heating resistor (included as standard in units with automatic control panel) Alternator for charging batteries with earth connection Installed starter battery(s) (including cable and holder) Electrical grounding connection with connection provided for deep earth electrode (depth earth electrode not included) Battery disconnect switch Optional Soundproof version
Oil drain set for oil pan Versatile options when assembling large housings with metal tank Steel housing Vibration damper Fuel tank integrated in the housing Flow timer fuel level Emergency stop switch High mechanical strength Low noise level Sound insulation based on high-density volcanic rock wool Surface powder-coated with epoxy polyester (salt spray test of over 1000h) Full maintenance access (water, oil and filter without dismantling the top) Reinforced lifting hooks for lifting with a crane Hermetic housing (double-wall function to collect liquids) Drainage closure tank Drainage closure housing Housing intended for the installation of a mobile set Heavy duty steel silencer with -35db(A) Fuel transfer pump Optional Plant data
EXHAUST SYSTEM
Maximum temperature exhaust gas operation: 550 Flow rate exhaust gas operation: 8.52 Maximum permissible back pressure: 1300 Outside diameter exhaust pipe: 65 QUANTITY OF AIR REQUIRED
Maximum air flow for combustion: 134.42 Air flow fan motor: 0.979 Air flow fan alternator: 0.09 COMMISSIONING SYSTEM
Starting power: 2.3 Starting power: 3.13 Recommended battery: 92 Auxiliary voltage: 12 FUEL SYSTEM
Fuel type: Diesel Fuel tank: 100 Other fuel tank values: 190, 330 Dimensions
Length: 2,100 Height: 1,350 Width: 975 Maximum packaging volume: 2.76 Weight with liquids in radiator and oil pan: 909 Tank capacity: 100 Autonomy : 18 hours Sound level: 65.93 |
