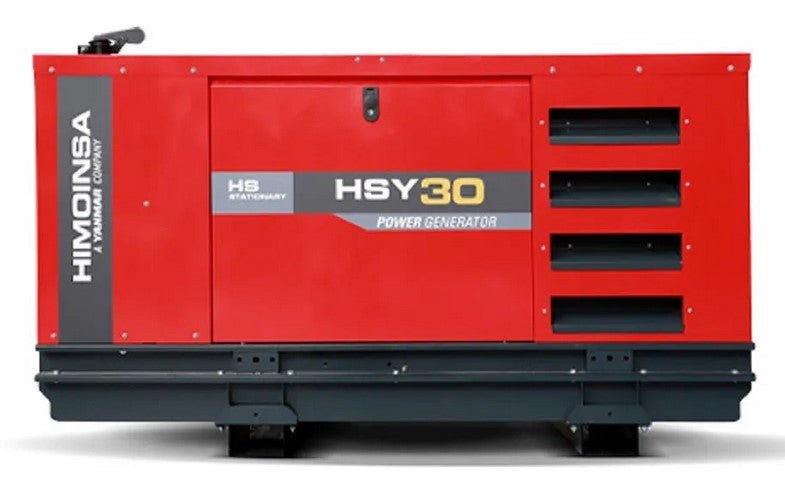

Power generator HIMOINSA HSY - 30 T5 soundproof hood

HSY - 30 T5

Rated power: 30.7 kW prp ; 34.1 kW standby
Manufacturer: YANMAR
Model: 4TNV98GGEH
Engine type: Diesel four-stroke
Type of injection: Direct
Type of intake: Natural
Diameter x travel: 98 x 110
Total displacement: 3,319
Cooling system: coolant
Specifications engine oil: SAE 3 class 10W30 / API grade CD,CF
Compression ratio: 18.5
Fuel consumption standby mode: 8.53l/h

Fuel consumption 100% PRP: 7.6 l/h

Fuel consumption 75% PRP: 5.7l /h

Fuel consumption 50% PRP: 4.05 l/h
Maximum oil quantity: 10.6
Total quantity of coolant: 9
Regulator type mechanical
Air filter type dry
Diesel engines
Four-stroke
Water-cooled
Electric starter 12V
Cooler with pressure fan
Mechanical control
Dry air filter
Protections for hot parts
Protections for moving parts

Pole: 4
Connection type (standard): Star - series
Coupling type: S-3 11"/2
Insulation protection class: Class H
Mechanical protection class (according to IEC-34-5) : IP23
Control system: Self-excited, without brushes
Voltage regulator: A.V.R.(Electronic)
Type of holder: Single bearing type
Clutch system: Flexible disc
Type of cover: Standard (vacuum impregnation)

Electrical switchboard for control and circuit breakers, with measuring devices and control center (depending on requirements and configuration)
Four-pole thermomagnetic circuit breaker
Adjustable differential protection (time and sensitivity), standard in the M5 and AS5 switchboards thermomagnetic circuit breaker included
Battery charger (included in units with automatic switch panel)
Heating resistor (included as standard in units with automatic switch panel)
Alternator for charging batteries with earth connection
Installed starter battery(s) (including cable and receptacle)
Electrical grounding connection with connection provided for deep earth electrode (depth earth electrode not included in scope of delivery)
Battery disconnect switch optional

Steel housing

Vibration damper
Fuel tank integrated in the housing
Flow time meter, fuel level
Emergency stop switch
Aggregate box made of high-quality sheet metal
High mechanical strength
Low noise level
Sound insulation based on high density volcanic rock wool
Surface powder coated with epoxy polyester (salt spray test of over 1000h)
Full maintenance access (water, oil and filter without removing the top)
Reinforced lifting hooks for lifting with crane
Hermetic housing (double wall Function for collecting liquids)
Drainage closure tank
Drainage closure housing
Housing intended for the installation of a mobile set
High-performance steel silencer with -35db(A)
Fuel transfer pump Optional

Maximum temperature exhaust gas operation: 550 C
Flow rate exhaust gas operation: 8.52 m³/min
Maximum permissible back pressure: 1300 mmH2o

REQUIRED AIR QUANTITY

Maximum air flow for combustion: 134.42 m³/h
Air flow fan motor: 0.979 m³/h
Air flow fan alternator: 0.11m³/h

Starting power: 2.3
Starting power: 3.13
Recommended battery: 92
Auxiliary voltage: 12

Fuel type: Diesel
Fuel tank: 170
Other fuel tank values: 240,310,460,660

Length: 2,200
Height: 1,350
Width: 910
Maximum packaging volume: 2.7
Weight with liquids in radiator and oil pan: 830
Tank capacity: 170
Autonomy : 30 hours
Sound level: 64 dB(A) 7m
