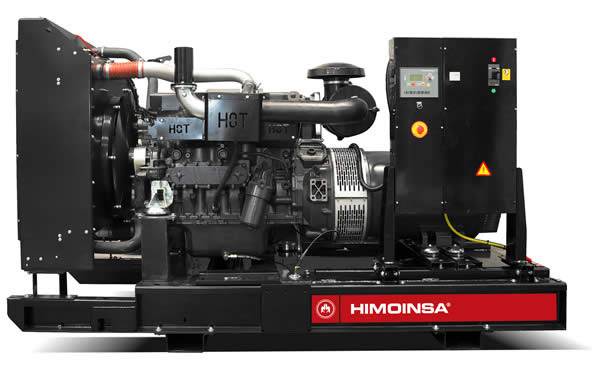

Power generator HIMOINSA HFW-125 T5 IVECO open
HFW-125 T5
Rated power: 107.2 prp ; 118.2 standby
Manufacturer: FPT_IVECO
Model: N45 TM3
Engine type: Diesel four-stroke
Type of intake: With turbocharger and aftercooling
Cylinders, number and arrangement: 4 - L
Diameter x travel: 104 x 132
Total displacement: 4.5
Cooling system: liquid (water + 50% glycol)
Specifications Engine oil: ACEA E3 - E5
Compression ratio: 17.5:1
Fuel consumption standby mode: 30.4
Fuel consumption 100 % PRP: 27.6
Fuel consumption 80% PRP: 21.6
Fuel consumption 50% PRP: 14.4
Oil consumption under full load: 0.5% of fuel consumption
Total amount of oil (including hoses, filter) 12.8
Total amount of coolant: 18.5
Air filter type dry
Inner diameter outlet exhaust pipe: 70.3
Diesel engines
Four-stroke
Water-cooled
Electric starter 12V
Cooler with pressure fan
Filter separator (Stand not visible)
Mechanical control
Dry air filter
Protective devices for hot parts
Protective devices for moving parts
Pole: 4
Connection type (standard): Star - series
Coupling type: S-3 11"1/2
Mechanical protection class (according to IEC-34-5): IP23
Control system: self-excited, without brushes
Type of holder: Single bearing version
Clutch system: Flexible disc
Type of cover: Standard (vacuum impregnation)
Electrical control panel and circuit breaker, with measuring devices and control center (according to requirements and configuration)
Four-pole thermomagnetic circuit breaker
Adjustable differential protection (time and in sensitivity), included as standard in the M5 and AS5 control panels with thermomagnetic circuit breaker
Battery charger (included in units with automatic control panel)
Heating resistor (standard in units with automatic -Electrical panel included)
Alternator for charging batteries with ground connection
Installed starter battery(s) (including cable and holder)
Electrical ground connection with intended connection for deep earth electrode (depth earth electrode not included in scope of delivery)
Battery disconnect switch optional
Emergency stop switch
Oil drain set, oil pan
Steel housing
Vibration damper
Fuel tank integrated in the housing
Flow time meter fuel level
High mechanical strength
Surface powder-coated with epoxy polyester (salt spray test of over 1000h )
Drainage cap tank
Steel silencer with -15db(A)
Fuel transfer pump optional
High performance steel silencer with -35db(A) Optional
Maximum temperature exhaust gas operation: 540
Maximum permissible back pressure: 5
Heat dissipation through exhaust pipe: 590
Maximum air flow for combustion: 427
Air flow fan motor: 2.2
Air flow fan alternator: 0.514
Starting power: 3
Starting power: 4.08
Recommended battery: 100
Auxiliary voltage: 12
Fuel type: Diesel
Fuel tank: 170
Length: 2,450
Height: 1,512
Width: 780
Maximum packaging volume: 2.89
Weight with liquids in radiator and oil pan: 1,162
Capacity tank: 170
Autonomy: 8 hours
