Himoinsa | SKU:
SEV-00493
Reduced by 21%

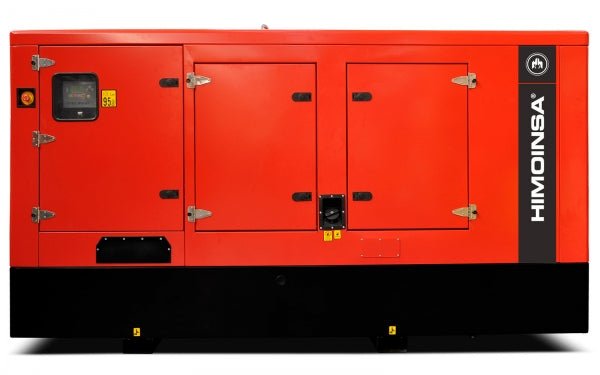

Power generator HIMOINSA HFW-200 T5 IVECO 3A
DA 4,751,000.00
DA 6,040,000.00
Basic price
/
Not available
Shipping will be calculated at checkout.
Power generator HIMOINSA HFW-200 T5 IVECO 3A is not in stock and will be shipped as soon as available again.
Delivery time: approx. 16 weeks
Availability for pickups could not be loaded
Questions to the product?
Questions to the product?
Shipping Information
Shipping Information
Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).
We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.
Please contact us if you have special delivery requirements.
Power generator HIMOINSA HFW-200 T5 IVECO 3A
DA 4,751,000.00
DA 6,040,000.00
Basic price
/
Not available
HFW-200 T5 3A
Engine specifications 1,500
Rated power: 175 prp ; 195 standby
Manufacturer: FPT_IVECO
Model: N67 TE3F
Engine type: Diesel four-stroke
Art of injection: Direct, Common Rail
Type of intake: With turbocharger and aftercooling
Cylinder, number and arrangement: 6 - L
Total displacement: 6.7
Cooling system: liquid (water + 50% glycol)
Specifications engine oil: ACEA E3 - E5
Compression ratio: 17.5: 1
Fuel consumption standby mode: 49
Fuel consumption 100% PRP: 45.5
Fuel consumption 80% PRP: 41.9
Fuel consumption 50% PRP: 29.9
Oil consumption below full load: 0.5% of fuel consumption
Total amount of oil (including hoses, filter) 17
Total amount of coolant: 25.5
Air filter type dry
Inner diameter outlet exhaust pipe: 70
Diesel engines
Four-stroke engine
Water-cooled
Electric starting device 12V
Cooler with pressure fan
Filter separator (stand not visible)
Electronic control
HWT indicator
NÖD indicator
Water level sensor radiator
Dry air filter
Hot parts guards
Moving parts guards
Three-phase generator
Pole: 4
Connection type (standard): Star - series
Coupling type: S-3 11"1/2
Mechanical protection class (according to IEC-34-5): IP23
Control system: self-excited, without brushes
Type of holder: Single bearing type
Clutch system: Flexible disc
Type of cover: Standard (vacuum impregnation)
Electrical system
Electrical panel for control and circuit breakers, with measuring devices and control center (according to requirements and configuration)
Four-pole thermomagnetic circuit breaker
Battery disconnect switch
Adjustable differential protection (time and sensitivity), included as standard in the M5 and AS5 panels with thermomagnetic circuit breaker
Battery charger (included in units with automatic panel)
Heating resistor (included as standard in units with automatic control panel)
Three-phase generator for charging batteries with earth connection
Installed starter battery/s (including cable and holder)
Electrical earthing connection with connection provided for earth electrode (depth earth electrode not included)
Soundproof version
Steel housing
Oil drain set for oil pan
Versatile options when assembling large housings with metal tank
Vibration damper
Fuel tank
Fuel level flow timer
Emergency stop switch
Aggregate box made of high-quality sheet metal
High mechanical resilience
Low noise level
Sound insulation based on high-density volcanic rock wool
Surface powder-coated with epoxy polyester ( Salt spray test of over 1000h)
Full maintenance access (water, oil and filter without removing the top)
Reinforced lifting hooks for lifting with crane
Hermetic housing (double-wall function to collect liquids)
Drainage closure tank
Drainage closure housing
Housing for installing a Mobile sets provided
High performance steel silencer with -35db(A)
Three-way valve for transferring fuel (available with 1/2" and 3/8" connections) Optional
Fuel transfer pump Optional
Plant data
EXHAUST SYSTEM
Maximum temperature exhaust gas operation: 580
Maximum permissible back pressure: 6
Outer diameter of the exhaust pipe: 120
QUANTITY OF AIR REQUIRED
Maximum air flow for combustion: 662
Air flow fan motor: 3.8
Air flow fan alternator: 0.514
COMMISSIONING SYSTEM
Starting power: 3
Starting power: 4.08
Recommended battery: 180
Auxiliary voltage: 12
FUEL SYSTEM
Fuel type: Diesel
Fuel tank: 450
Other fuel tank values: 600, 1,100
Dimensions
Length: 3,300
Height: 1,956
Width: 1,200
Maximum packaging volume: 7.75
Weight with fluids in radiator and oil pan: 2.358
Capacity tank: 450
Autonomy: 11 hours
Sound level: 68
