Pramac | SKU: SEV-00259

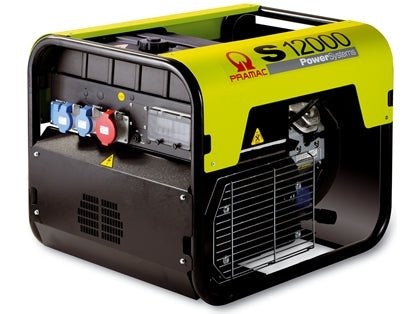

Portable power generator PRAMAC S 12000 HONDA 3 el BAU

Name: Portable power generator PRAMAC S 12000 HONDA 3 el BAU
Brand: Pramac
SKU: SEV-00259
Price: 520900.0 DZD
Availability: InStock

DA 520,900.00 ~~DA 659,000.00~~

Shipping will be calculated at checkout.

Portable power generator PRAMAC S 12000 HONDA 3 el BAU is not in stock and will be shipped as soon as available again.

Delivery time: approx. 16 weeks

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

Portable power generator, soundproofed, Honda petrol engine GX series, 3-phase synchronous generator, compound controlled, 3-way internal, electric starter, battery, large tank 24l, automatic oil deficiency switch-off, thermo-magnetic circuit breaker, isometer, voltmeter, operating hours counter, power 11.14 kVa , 230/400 volts, 3 sockets 230V 16A, 1 socket 400V 16A, weight: 175 kg,

optional accessories: wheel set, FI circuit breaker, exhaust hose, crane loading eye

CONSTRUCTION 3-fold INominal: increases the starting current, is component-controlled and enables the operation of consumers that are difficult to start, such as compressors, submersible pumps, etc.

Key specifications

Single-phase maximum power (LTP)	9.19 kVA
Single-phase maximum power (LTP).	8.27 kW
Single-phase primary power (PRP)	7.64 kVA
Single-phase primary power (PRP).	6.87 kW
Single-phase continuous power (COP)	6.94 kVA
Single-phase continuous power (COP)	6.25 kW
Max. Rated power (LTP)	13.92 kVA
Max.Rated power (LTP)	11.1 kW
Nominal primary power (PRP)	13.02 kVA
Nominal primary power (PRP)	10.4 kW
Nominal continuous power (COP)	11.83 kVA
Nominal continuous power (COP)	9.47 kW
Rated current at continuous power	17.1A
Phases	3 Y
Voltage	230, 400V
Nominal power factor	0.8PF
Frequency	50Hz
Battery charger voltage	Not applicable
Battery charger current	Not applicable
Installation location of control panel	On chassis
Chassis Type	Tubular, with cover
Certificate of Conformity	CE

Engine specifications

Motor manufacturer	Honda
Model	GX620
Clock	4
Fuel	Gasoline
Number of cylinders and arrangement	2, V-shape
Displacement	614 cm³
Air intake	Of course
Starter system	Electrical
Nominal operating speed	3000 rpm
Speed controller	Mechanical
Continuous power COP	10.3 kW
Primary power PRP	11.3 kW
Standby power LTP	12.5 kW
Lubricating oil volume	1.8 l
Fuel consumption at 75% load	3.5 l/h
Circuit voltage	12V
