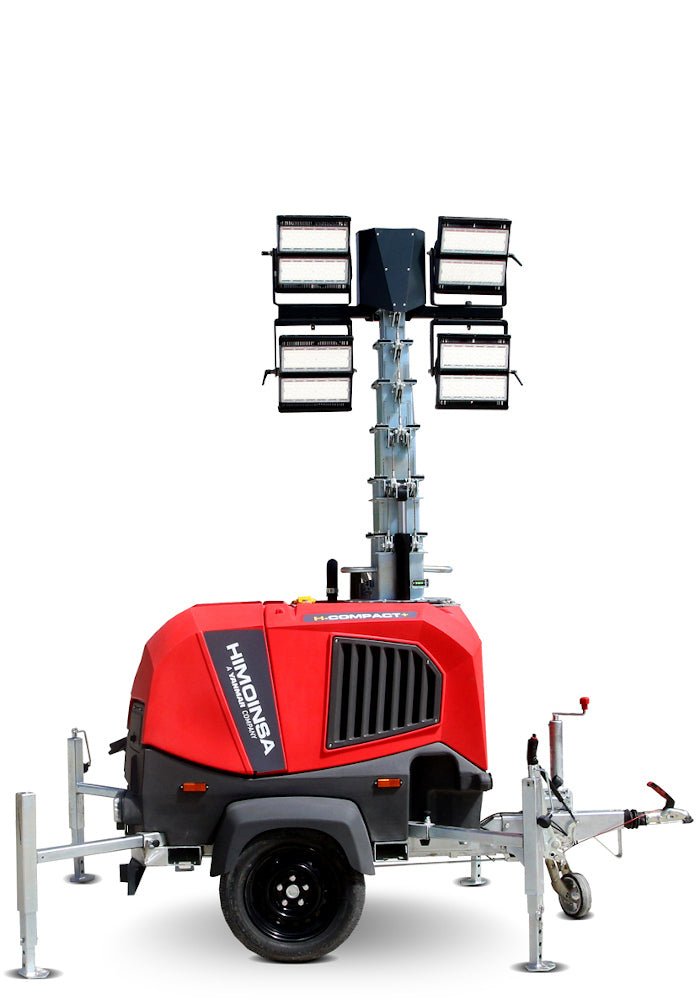

Light mast HIMOINSA HCompact+ M5 LED Stage V

HIMOINSA HCompact+ M5 – Compact LED light mast for flexible applications

The HIMOINSA HCompact+ M5 is a powerful, mobile lighting mast with a hydraulic lifting system, designed for construction sites, industrial plants, emergency operations, and maintenance work . With 210,000 lumens , modern LED technology, and an efficient Yanmar Stage V diesel engine, it offers a durable, quiet, and environmentally friendly lighting solution.

Main technical data

• Light output: 4 × 350 W LEDs = 210,000 lumens
• Mast type: hydraulic, 8 segments, height 8.3 m
• Engine: Yanmar 2TNV70WHR – Diesel four-stroke, 1500 rpm, Stage V
• Tank capacity: 110 liters → up to 200 operating hours
• Noise level: 53 dB(A) @ 7 m – exceptionally quiet
• Weight: 970 kg
• Generator protection class: IP21, insulation class H
• Remaining power: 1.4 kW for additional consumers

Special features and benefits

1. Compact design with robust polyethylene body
The durable outer shell protects against impacts and weather conditions. Thanks to its compact dimensions (transport dimensions 2380 × 1360 × 2470 mm), the light mast is easy to maneuver and transport.

2. Safe operation with hydraulic lifting system
The mast can be extended in just 13 seconds and retracted in 25 seconds. The integrated AMOSS safety system prevents driving with the mast extended.

3. Efficient LED lighting with a long range
Four LED spotlights with a total output of 210,000 lumens provide even light distribution up to 50 meters (300 lux at 10 m distance). Ideal for working at night or in poor visibility conditions.

4. Safety and easy maintenance
A hinged canopy with gas springs allows for quick maintenance access. The integrated 110% spill containment tray protects against leaks. Emergency shutdown, differential protection, and thermomagnetic switches ensure maximum operational safety.

5. Environmentally friendly and quiet operation
The modern Stage V Yanmar diesel engine significantly reduces emissions and runs whisper-quiet – ideal for use in noise-sensitive areas.

Areas of application

• Construction sites and infrastructure projects
  For night work, bridge construction, road and civil engineering.
• Industry and Logistics
  Reliable lighting during maintenance and shift work.
• Disaster and emergency operations
  Self-sufficient, mobile light source with long endurance.
• Event technology and outdoor deployments
  Quick setup, low energy consumption, quiet operation.

The HIMOINSA HCompact+ M5 LED Stage V combines high light output, quiet operation, and a compact design in a robust, mobile system. Thanks to its hydraulic mast, AMOSS safety function, and low-emission Stage V motor, it is the ideal solution for any construction site where safety, efficiency, and mobility are paramount.
