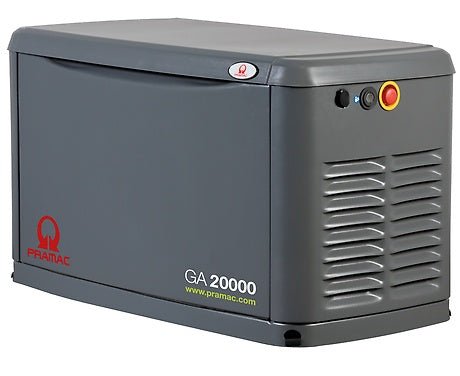

Gas generator PRAMAC GA 20000

Name: Gas generator PRAMAC GA 20000
Brand: Pramac
SKU: SEV-00175
Price: 1018700.0 DZD
Availability: InStock

DA 1,018,700.00 ~~DA 1,449,200.00~~

Shipping will be calculated at checkout.

Gas generator PRAMAC GA 20000 is not in stock and will be shipped as soon as available again.

Delivery time: approx. 6 days

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

gas power generator,
Our newly developed emergency power generators can be operated with both liquid gas and natural gas and, depending on requirements, can be delivered as a single-phase or three-phase version.
Sound-insulated aluminum all-weather housing, withstands wind up to 240 km/h, air-cooled, easy to maintain, AVR controlled generator, WLAN possibility of remote control, integrated automatic emergency power system ATS, works even at low input pressure of 9 mbar, engine Generac G-FORCE 10000 series, maximum Power 20 kVA (liquefied gas) and 17 kVA (natural gas) for a variety of uses, soundproofed, only 63 db/7m The processor-controlled electronics AVR of these devices ensure a clean output voltage with which sensitive electronic devices such as notebooks, heating controls and televisions can be easily operated can. 100% stable running, Evolution Digital controller, ensures a clean and stable electrical voltage, backlit LCD screen with automatic contrast adjustment for good readability, 5 year guarantee, weight: 220 kg

Art. No.:	PS203TXM
Electronic cruise control AVR	yes
Features Generator	Synchronous generator 2-pole, 1-bearing
Operating speed Generator, [rpm]	3000
Number of phases	3
Nominal voltage, [V]	230/400
Rated current, [A] natural gas	24.54
Rated current, [A] LPG	28.87
Nominal frequency, [Hz]	50
Maximum performance with natural gas (ESP), [KVA]	17
Maximum performance with liquid petroleum gas (ESP), [KVA]	20
Power factor, [cos φ]	1
Starter electric	yes
Fuel	NG/LPG
Gas pressure, natural gas (CNG) [mbar]	9 – 17.5
Gas pressure, liquid petroleum gas (LPG) [mbar]	25 – 30
Consumption of natural gas (CNG) [m³ / h] at 50% load	4.50
Liquefied petroleum gas (LPG) consumption [L / h] at 50% load	6.83
Noise level, [dB] <	63
Motor type	G-Force 1000 Series
Number of cylinders, arrangement	2 / V
Displacement, [cm3]	999
Speed, [rpm]	3000
Ignition inductive	yes
Air cooled	yes
Lubricants	SAE 5W40 (-25…+40°C)
Lubrication system contents, [L]	1.8
Battery	12V
Characteristics of the housing	All weather, soundproof, IP 22
Dimensions, [mm]	1232х648х733 mm (approx.mass)
Net weight, [kg]	220
