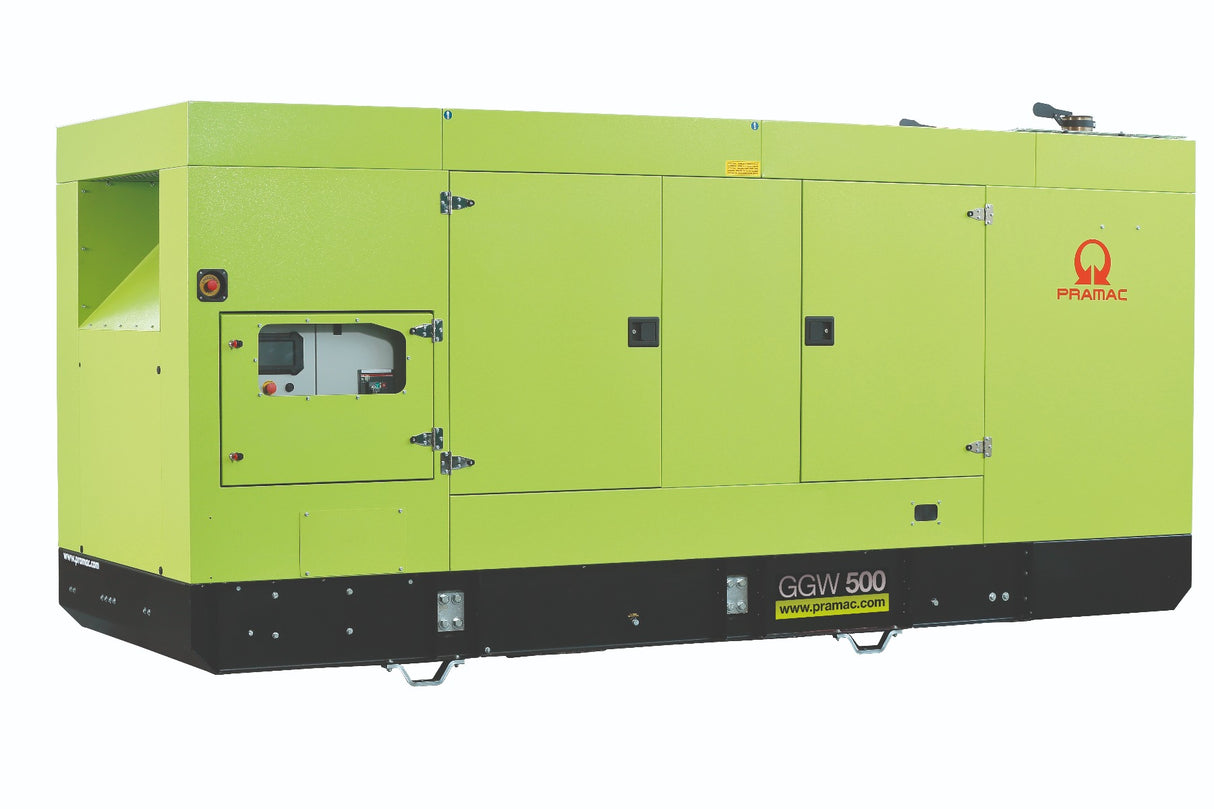

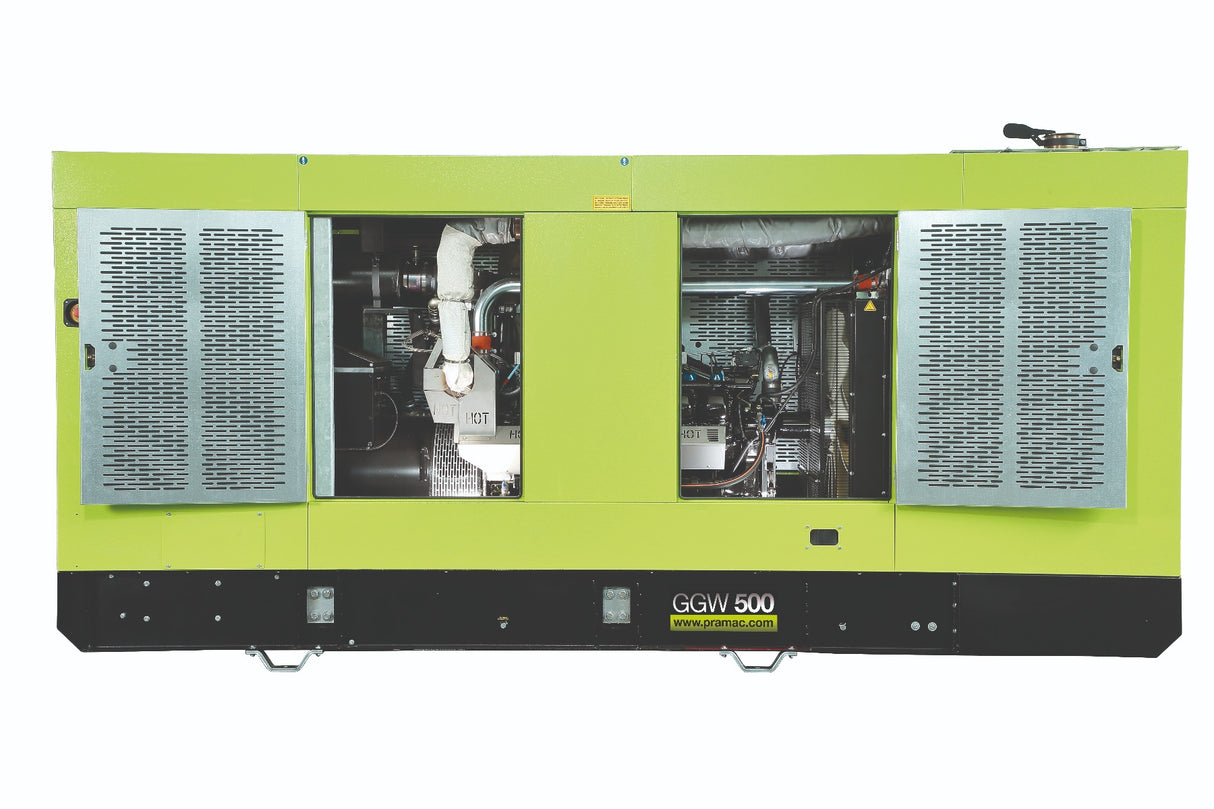

Gas power generator PRAMAC GGW 500 G
Gas power generator PRAMAC GGW 500 G is not in stock and will be shipped as soon as available again.
Delivery time: Upon request
Availability for pickups could not be loaded
Questions to the product?
Questions to the product?
Shipping Information
Shipping Information
Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).
We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.
Please contact us if you have special delivery requirements.
Model incl.CE |
PRAMAC GGW 500 G |
Electronic cruise control |
yes |
Features Generator |
Synchronous generator 4-pole, brushless, 2-bearing |
Operating speed Generator, [rpm] |
1500 |
Number of phases |
3 |
Nominal voltage, [V] |
400 |
Nominal frequency, [Hz] |
50 |
Maximum power with natural gas (ESP), [KW] |
400 |
Maximum power with natural gas (PRP), [KW] |
360 |
Power factor, [cos φ] |
0.8 |
Insulation class "H" |
yes |
Electric starter |
yes |
Fuel |
NG/LPG |
Gas pressure, [mbar] |
25.4 |
Consumption [kg / h] (at 50% ESP) |
51 |
Noise level, [dB] < |
68 |
Motor type |
GENERAC |
Number of cylinders |
4 |
Bore × Stroke, [mm] |
132х160 |
Displacement, cm³ |
25800 |
Ignition inductive |
yes |
Speed, [rpm] |
1500 |
Water-cooled |
yes |
Cooling system contents, [L] |
78 |
Forced lubrication |
yes |
Lubrication system contents, [L] |
95 |
Characteristics of the housing |
All weather, soundproof, IP 23 |
Dimensions, [mm] |
4700x1700x2290 mm (approx.mass) |
Net weight, [kg] open version |
4500 |
