Energy storage unit LX PLUS 90/150 LFP

Pramac LX Plus 90/150 LFP – Mobile battery storage system with 144 kWh and 90 kVA for maximum performance in professional applications

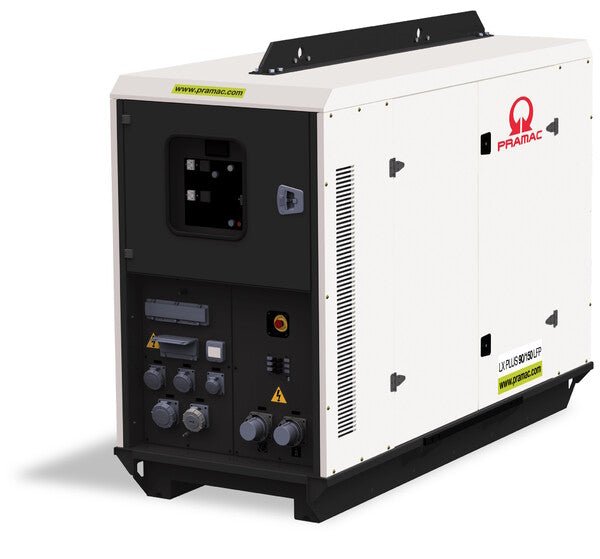

The Pramac LX Plus 90/150 LFP is a mobile, high-performance battery storage system with 144 kWh of usable storage capacity and a continuous power output of 90 kVA (3-phase). Designed for applications with particularly high energy demands – such as large construction sites , events , industrial power supply , or emergency power operation – this storage system reliably delivers power where conventional solutions reach their limits.

Thanks to modern lithium iron phosphate (LFP) technology, the storage system combines high cycle stability with maximum safety and low operating costs. Whether operating independently, as a hybrid solution with a diesel generator, or in conjunction with photovoltaics – the LX Plus 90/150 stands for high-performance, mobile, and emission-free energy supply .

Technical specifications:

• Storage capacity: 144 kWh usable
• Power output: 90 kVA continuous power
• Battery technology: LFP (Lithium Iron Phosphate) – long-lasting, safe, maintenance-free
• Outputs: 400 V three-phase / 230 V single-phase
• Charging time: approx. 6–8 hours (depending on charging power)
• Weight: approx. 3,000 kg, mobile thanks to integrated forklift pockets and crane eyes
• Interfaces: Modbus, CAN, optional remote monitoring, load management and hybrid control

Areas of application:

• Major construction sites & infrastructure projects
  Power supply for construction cranes, pumps, refrigerated containers or office units without a grid connection
• Events, film productions & festivals
  Power supply for lighting, sound, video, catering and control room – quiet, reliable, environmentally friendly
• Hybrid solutions with diesel or PV generators
  Reduction of operating times, lower operating costs, increased security of supply
• Emergency power and backup applications
  Backup power supply for critical systems or self-sufficient energy supply in remote areas

Advantages of the Pramac LX Plus 90/150 LFP:

• 90 kVA continuous power output – even for the heaviest loads and simultaneous peak loads
• Large energy storage unit with 144 kWh – for several hours of self-sufficiency
• Emission-free and noiseless – suitable for environmental zones, city centers or night operation
• Robust & mobile – weatherproof housing, suitable for transport in construction and events
• Maintenance-free & durable – over 6,000 charging cycles, no operating fluids
• Intelligent control – easy integration into existing energy or hybrid networks

Conclusion:

The Pramac LX Plus 90/150 LFP is the right choice for anyone who needs high performance and long operating time in a mobile, sustainable energy storage system . Whether on a large construction site, at a festival, or in an industrial plant – this storage system delivers energy when and where it's needed.
