Energy storage FOXTHEON EP 66/66
|
PERFORMANCE |
||
|
Nominal rated power |
kVA |
66.5 |
|
Overload power(60s) |
kVA |
83 |
|
Nominal peak power(10s) |
kVA |
188 |
|
ELECTRICAL |
||
|
Input voltage range |
VAC |
400 |
|
Output voltage range |
VAC |
400 |
|
Frequency |
Hz |
50(60) |
|
Power factor range |
0 ind. ...1... 0 cap |
|
|
Maximum AC current |
A |
271 |
|
ENERGY |
||
|
Cell chemistry |
LiFePO4（Lithium Iron Phosphate） |
|
|
Nominal capacity |
kWh |
68 |
|
Effective capacity |
kWh |
61.2 |
|
Recharging time |
Hours |
2h@33kW |
|
Discharge time |
Hours |
1h@60kW |
|
System round trip efficiency |
% |
up to 96% |
|
DoD% (depth of discharge) |
% |
90 |
|
Lifetime (80% DoD) |
Cycles |
7000 |
|
Battery management system |
Automotive grade BMS |
|
|
Maintenance charge cycle |
≤ 36 weeks |
|
|
Temperature control |
Liquid cooling / PI heating film |
|
| ENVIRONMENTAL | ||
|
Protection class |
IP54 |
|
|
Corrosion protection |
C3 (C5M) |
|
|
Operating temperature |
℃ |
-20 to +50 |
|
Humidity |
0-95 % （ no condensation ） |
|
|
Maximum operating altitude |
m |
3000 |
|
Sound power level |
dB(A) @1m |
<50 |
|
MECHANICAL |
||
|

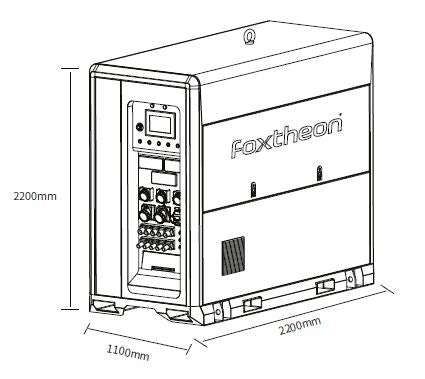

Dimensions (L x W x H) |
mm |
2200x 1100 x 2200 |
|
Weight |
kg |
1600 |
|
CONTROL |
|
|
Control panel |
Industrial grade rugged 10” touch screen HMI with configurable presets, data visualization and logs |
|
Protection |
Overload, Overheat, Short Circuit, Earth Fault |
|
Temperature control |
Active forced air cooling |
|
Remote generator start |
Dry contact relay / MODBUS |
|
Remote connectivity |
Data-efficient M2M communications via cellular IoT and user notifications to Internet-connected devices |
|
Remote automation |
FoxCloud Web APP |
