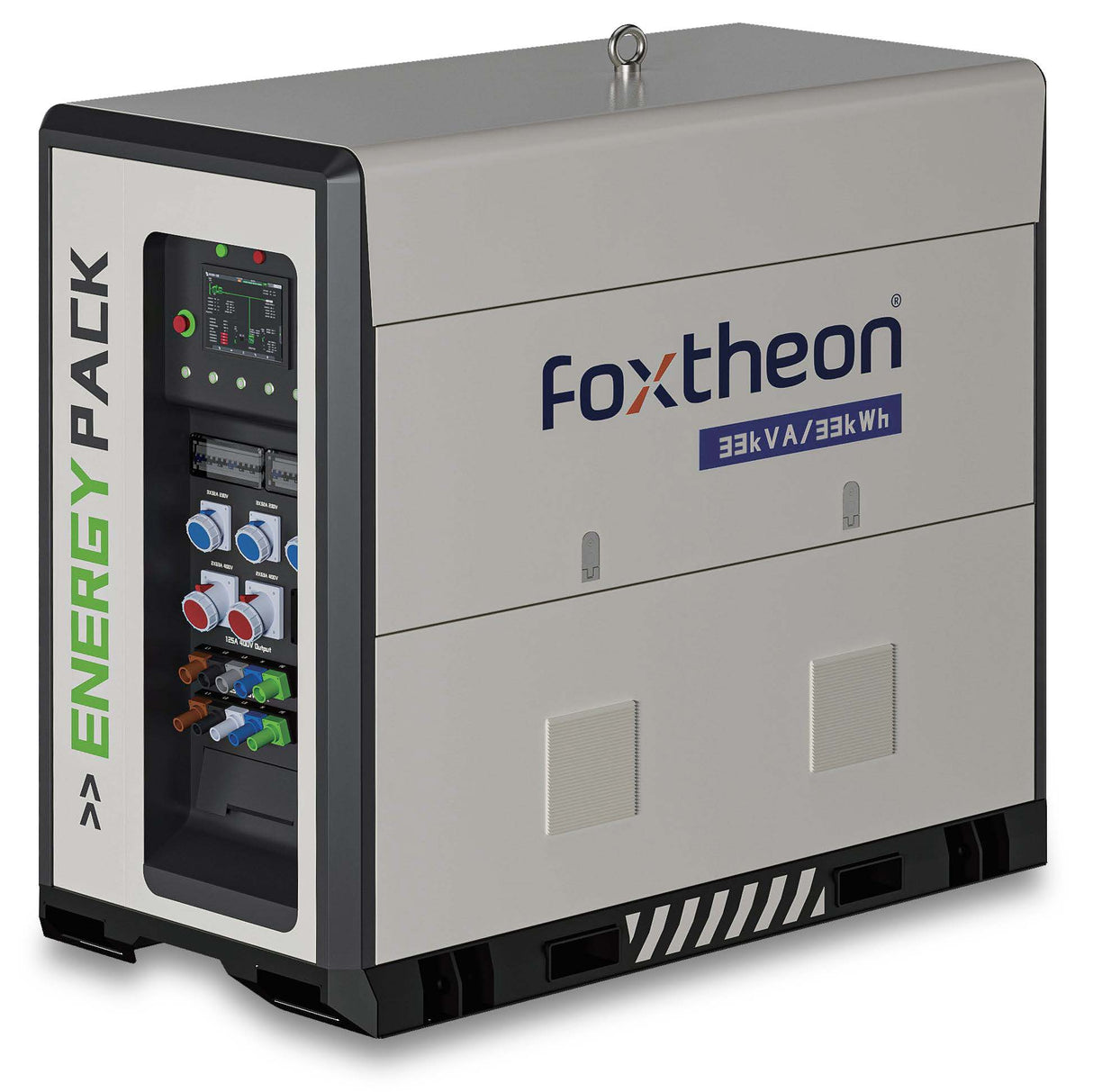

Energy storage FOXTHEON EP 33/33
Energy storage FOXTHEON EP 33/33 is not in stock and will be shipped as soon as available again.
Delivery time: approx. 12 weeks
Availability for pickups could not be loaded
Questions to the product?
Questions to the product?
Shipping Information
Shipping Information
Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).
We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.
Please contact us if you have special delivery requirements.
Energy storage FOXTHEON EP 33/33
|
PERFORMANCE |
||
|
Nominal rated power |
kVA |
33 |
|
Overload power(60s) |
kVA |
41 |
|
Nominal peak power(10s) |
kVA |
100 |
|
ELECTRICAL |
||
|
Input voltage range |
VAC |
400 |
|
Output voltage range |
VAC |
400 |
|
Frequency |
Hz |
50(60) |
|
Power factor range |
0 ind. ...1... 0 cap |
|
|
Maximum AC current |
A |
144 |
|
ENERGY |
||
|
Cell chemistry |
LiFePO4（Lithium Iron Phosphate） |
|
|
Nominal capacity |
kWh |
34 |
|
Effective capacity |
kWh |
30.6 |
|
Recharging time |
Hours |
2h@16kW |
|
Discharge time |
Hours |
1h@30kW |
|
System round trip efficiency |
% |
up to 96% |
|
DoD% (depth of discharge) |
% |
90 |
|
Lifetime (80% DoD) |
Cycles |
7000 |
|
Battery management system |
Automotive grade BMS |
|
|
Maintenance charge cycle |
≤ 36 weeks |
|
|
Temperature control |
Liquid cooling / PI heating film |
|
| ENVIRONMENTAL | ||
|
Protection class |
IP54 |
|
|
Corrosion protection |
C3 (C5M) |
|
|
Operating temperature |
℃ |
-20 to +50 |
|
Humidity |
0-95 % （ no condensation ） |
|
|
Maximum operating altitude |
m |
3000 |
|
Sound power level |
dB(A) @1m |
<50 |
|
MECHANICAL |
||
|

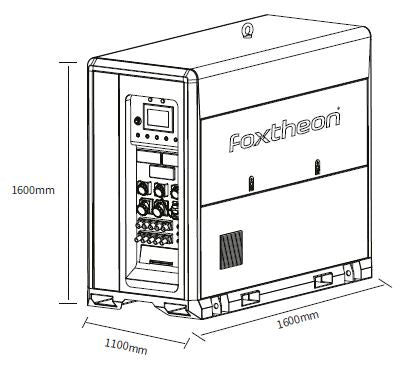

Dimensions (L x W x H) |
mm |
1600x1100x1600 |
|
Weight |
kg |
950 |
|
CONTROL |
|
|
Control panel |
Industrial grade rugged 10” touch screen HMI with configurable presets, data visualization and logs |
|
Protection |
Overload, Overheat, Short Circuit, Earth Fault |
|
Temperature control |
Active forced air cooling |
|
Remote generator start |
Dry contact relay / MODBUS |
|
Remote connectivity |
Data-efficient M2M communications via cellular IoT and user notifications to Internet-connected devices |
|
Remote automation |
FoxCloud Web APP |
