Foxtheon  |  SKU: ES-00033

Energy storage FOXTHEON EP 100/100

DA 9,830,900.00
Shipping will be calculated at checkout.

Energy storage FOXTHEON EP 100/100 is not in stock and will be shipped as soon as available again.

Delivery time: approx. 12 weeks


Questions to the product?

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

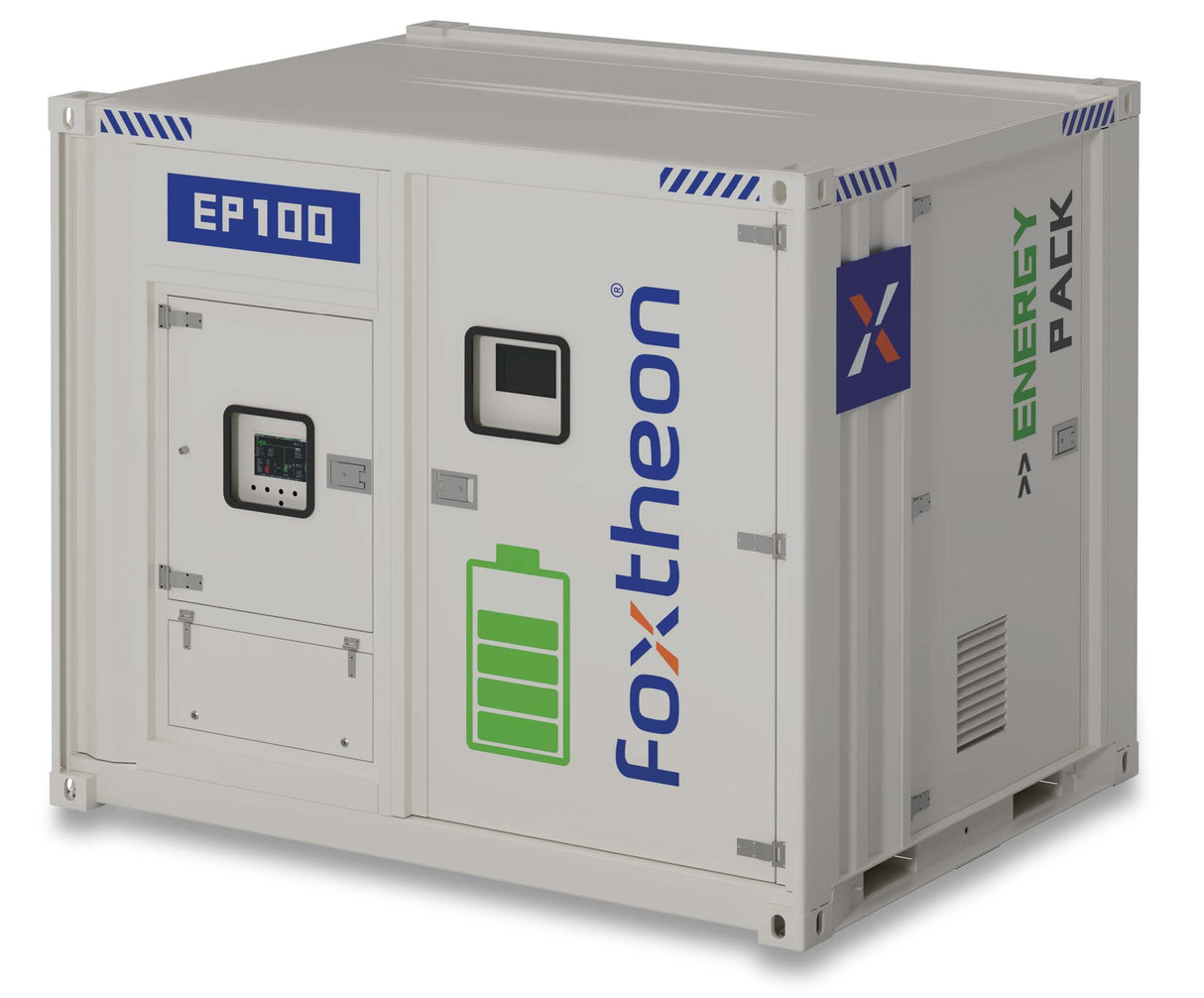

Energy storage with 100 kVA continuous output, lithium iron phosphate battery with 102 kWh capacity and 7000 charging cycles (80% DoD).

PERFORMANCE

Nominal rated power

kVA

100

Overload power(60s)

kVA

125

Nominal peak power(10s)

kVA

300

ELECTRICAL

Input voltage range

VAC

400

Output voltage range

VAC

400

Frequency

Hz

50(60)

Power factor range

0 ind. ...1... 0 cap

Maximum AC current

A

433

ENERGY

Cell chemistry

LiFePO4(Lithium Iron Phosphate)

Nominal capacity

kWh

102

Effective capacity

kWh

91.8

Recharging time

Hours

2h@50kW

Discharge time

Hours

1h@90kW

System round trip efficiency

%

up to 96%

DoD% (depth of discharge)

%

90

Lifetime (80% DoD)

Cycles

7000

Battery management system

Automotive grade BMS

Maintenance charge cycle

36 weeks

Temperature control

Liquid cooling / PI heating film

ENVIRONMENTAL

Protection class

IP54

Corrosion protection

C3 (C5M)

Operating temperature

-20 to +50

Humidity

0-95 % no condensation

Maximum operating altitude

m

3000

Sound power level

dB(A)

@1m

<50

MECHANICAL

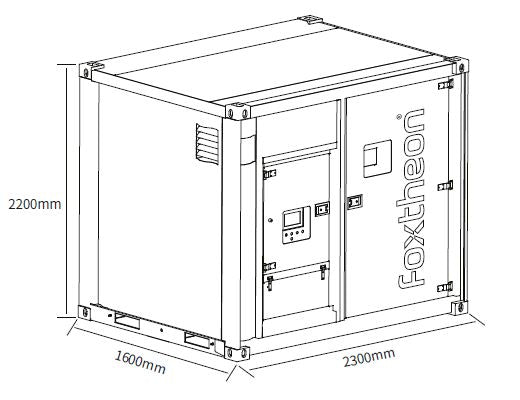

Dimensions (L x W x H)

mm

2300x 1600 x 2200

Weight

kg

2500

CONTROL

Control panel

Industrial grade rugged 10” touch screen HMI

with configurable presets, data visualization

and logs

Protection

Overload, Overheat, Short Circuit, Earth Fault

Temperature control

Active forced air cooling

Remote generator start

Dry contact relay / MODBUS

Remote connectivity

Data-efficient M2M communications

via cellular IoT and user notifications

to Internet-connected devices

Remote automation

FoxCloud Web APP
