Battery Charger CTEK MXS 3.8, 56-309, 12V, 3.8A

CTEK MXS 3.8 Battery Charger – Fully Automatic for 12V Batteries

The CTEK MXS 3.8 is a compact, microprocessor-controlled battery charger for 12V lead-acid batteries. It is suitable for charging and long-term maintenance charging of vehicle batteries in cars, motorcycles, RVs, classic cars, seasonal vehicles, and smaller work machines.

With a charging current of up to 3.8 A, the device charges batteries with a capacity of 1.2 to 85 Ah. For maintenance charging, batteries up to 130 Ah can be connected. The fully automatic, seven-step charging process adapts the charge to the battery's condition, ensuring gentle and reliable battery maintenance.

Automatic 7-step charging process

The MXS 3.8 largely performs the charging process automatically. After connecting, the charger checks whether the battery can accept and store a charge. It then charges it in a controlled manner and, if necessary, maintains it at an appropriate state of charge permanently.

The patented Float/Pulse maintenance charging process allows the battery to remain connected to the charger for extended periods. This makes the CTEK MXS 3.8 particularly suitable for vehicles and machines that are used only seasonally or at longer intervals.

Programs for different battery sizes and temperatures

The clear program selection allows the charger to be adapted to various applications. One program is intended for smaller batteries, and another for normal vehicle batteries.

For low ambient temperatures and certain AGM batteries, a special snowflake or cold weather program with a charging voltage of 14.7 V is available. Additionally, the device features an automatic desulfation function, which can help reduce sulfate deposits in deeply discharged or long-unused batteries.

Suitable for numerous 12V battery types

The CTEK MXS 3.8 is designed for various lead-acid batteries:

• Wet batteries
• Maintenance-free batteries
• Calcium-calcium batteries
• AGM batteries
• Gel batteries

The charger starts from a battery voltage of just 2.0 V. It is not intended for lithium batteries.

Safe use in workshops, garages, and vehicle halls

The robust housing is protected against dust and jet water according to IP65. This means the charger can also be used in more demanding conditions in garages, workshops, warehouses, or vehicle depots.

The MXS 3.8 is:

• spark-free
• reverse polarity protected
• short-circuit proof
• fully automatic
• suitable for ambient temperatures from -20 to +50 °C

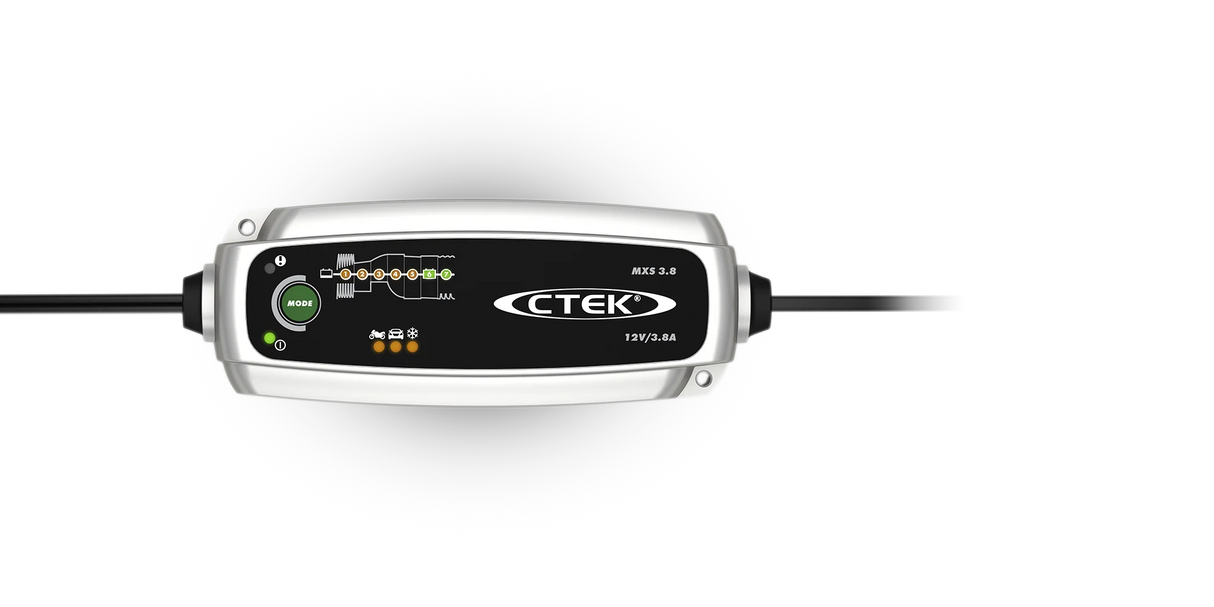

The clearly structured display shows the current progress of the charging program. This allows the operator to see at any time which charging phase the battery is in.

Typical applications

The CTEK MXS 3.8 is suitable for, among other things:

• Cars and vans
• Motorcycles and scooters
• Classic cars and collector vehicles
• Motorhomes and caravans
• Lawnmowers and garden tools
• Smaller construction machinery
• Emergency power generators with 12V starter battery
• Seasonal vehicles and rarely used vehicles
• Battery maintenance during longer downtimes

Especially for power generators, emergency vehicles, or machines that must be ready to start at any time, automatic maintenance charging helps prevent gradual discharge of the starter battery.

Technical data

Advantages of the CTEK MXS 3.8

• Fully automatic 12V battery charger
• Seven-step, microprocessor-controlled charging process
• Charges batteries up to 85 Ah
• Maintenance charging for batteries up to 130 Ah
• Special program for smaller batteries
• AGM and cold weather program
• Automatic battery diagnosis
• Desulfation function
• Float/Pulse maintenance charging
• Splash-proof and dust-protected according to IP65
• Reverse polarity, short-circuit, and spark protection
• Five-year manufacturer's warranty

Scope of delivery:

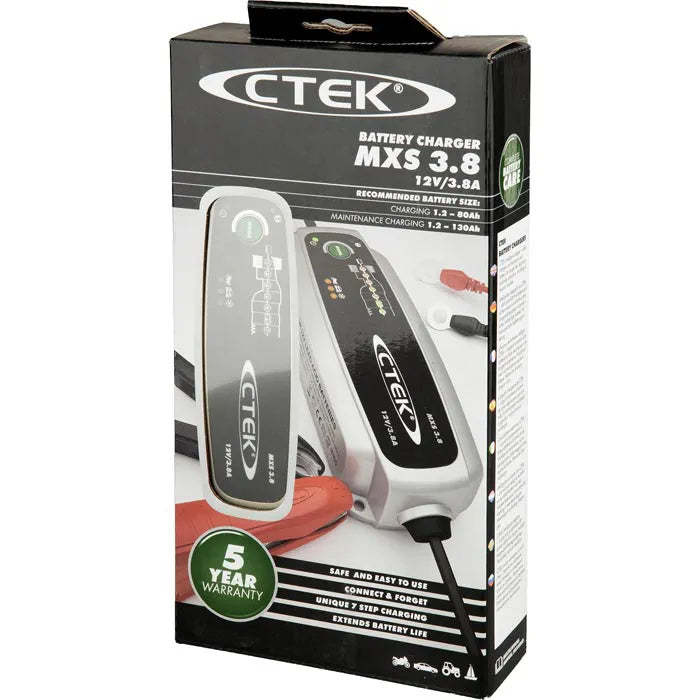

Automatic charger CTEK MXS 3.8

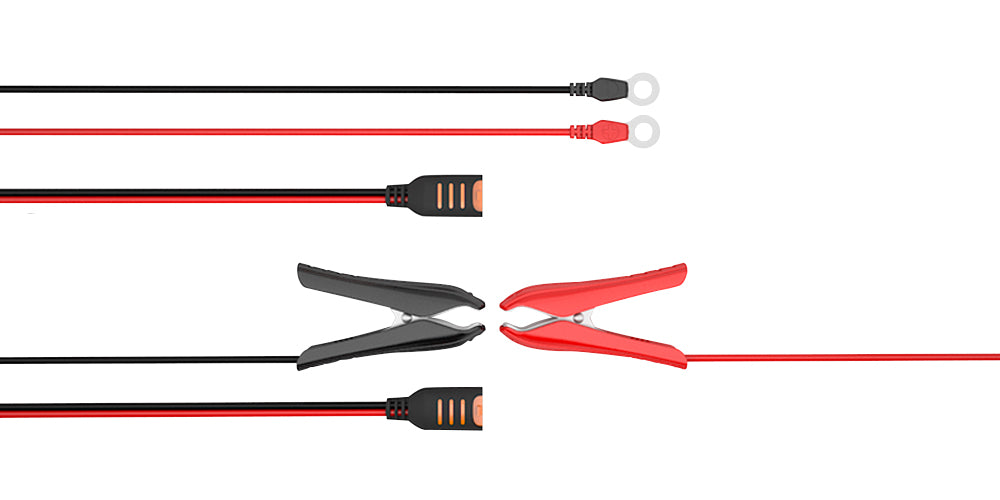

Connect Clamp (CTEK Comfort Connect socket to quick-release terminals)
Connect Eyelet M6 (CTEK Adapter Comfort Connect socket to M6 ring terminals)
