Endress | SKU: ES-00017

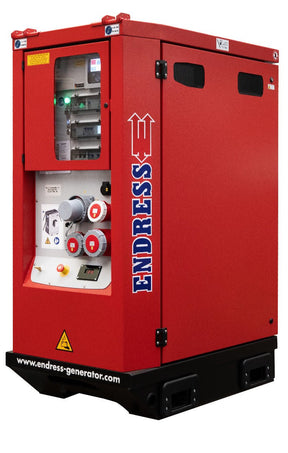

Energy storage ENDRESS EES D 30/30

Name: Energy storage ENDRESS EES D 30/30
Brand: Endress
SKU: ES-00017
Price: 6379000.0 DZD
Availability: InStock

DA 6,379,000.00 ~~DA 7,166,000.00~~

Shipping will be calculated at checkout.

Energy storage ENDRESS EES D 30/30 is not in stock and will be shipped as soon as available again.

Delivery time: approx. 10 weeks

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

Innovative battery storage system with lithium-ion batteries, safe and easy operation thanks to a clear control panel, can be switched in parallel to increase capacity, combination of energy storage and power generator achieves a downsizing of the required power generator by approx. 30%.
Base frame with continuous forklift tabs, crane loading eye, Euro pallet dimensions (W 120cm x D 80cm), all-round access through large maintenance doors, sophisticated cooling - air intake via air filter element from above for dust-free interior, operating temperature range -10°C / +50°C.
Peak output power of 60 kVA, output power (continuous power) 22.5 kVA, nominal battery capacity 30 kWh, weight 900 kg
<p> Optional accessories: 4G/GPS module including antennas, Bluetooth module, FI circuit breaker type B all-current sensitive, version B according to DGUV information 203-032 as an IT system</p>

Technical data of the Endress EES energy storage:

Power section		EES D 15/15	EES D 15/30	EES D 30/30
Order No.		610023	610024	610022
Rated power	kVA	15	15	30
Continuous performance at 25°C	kVA	12	12	22.5
Peak performance at 25°C	kVA	30	30	60
Nominal voltage	V	400/230	400/230	400/230
Output rated current in island operation	A	17.5	17.5	35
Output rated current in the network max.	A	125	125	125
Protection class	IP	54	54	54

Dimensions and Weight
Weight approx.	kg	700	850	900
Dimensions L x W x H	mm	1200 x 800 x 1750	1200 x 800 x 1750	1200 x 800 x 1750

Battery system
Rated capacity	kWh	15	30	30
Battery charge cycles		6000	6000	6000
Operating temperature range	°C	-10 to +50	-10 to +50	-10 to +50
Charging time approx.	h	1.4	2.8	1.8

Sockets

EES D 15/15

EES D 15/30

EES D 30/30

Input socket

CEE 400V/125A

Output sockets

2x 230 V / 16A

1x CEE 400 V / 32A

1x CEE 400 V / 63A

1x CEE 400 V / 125A

2x 230 V / 16A

1x CEE 400 V / 32A

1x CEE 400 V / 63A

1x CEE 400 V / 125A

2x 230V / 16A

1x CEE 400V / 32A

1x CEE 400V / 63A

1x CEE 400V / 125A

Optional accessories:

4G/GPS module incl.Antennas, Bluetooth module, FI circuit breaker type B all-current sensitive, version B according to DGUV Information 203-032 as an IT system

Combined operation

The ENDRESS energy storage devices can be operated together with a power generator and thus ensure intelligent load management. This combined operation reduces CO2 emissions and lower fuel consumption.
Due to the full power from the combination of energy storage and power generator, the required power generator is downsized by approx. 30%. The energy storage capacity is either 15 kWh or 30 kWh.
In conjunction with a 60 kVA power generator, a maximum output power of 90 kVA can be consumed via the energy storage (30 kVA). In addition, the combined operating unit can be activated via remote start, so that the power generator can be switched on automatically when there is a certain decrease in power or depth of discharge.
