Yorking | SKU: SEV-00180

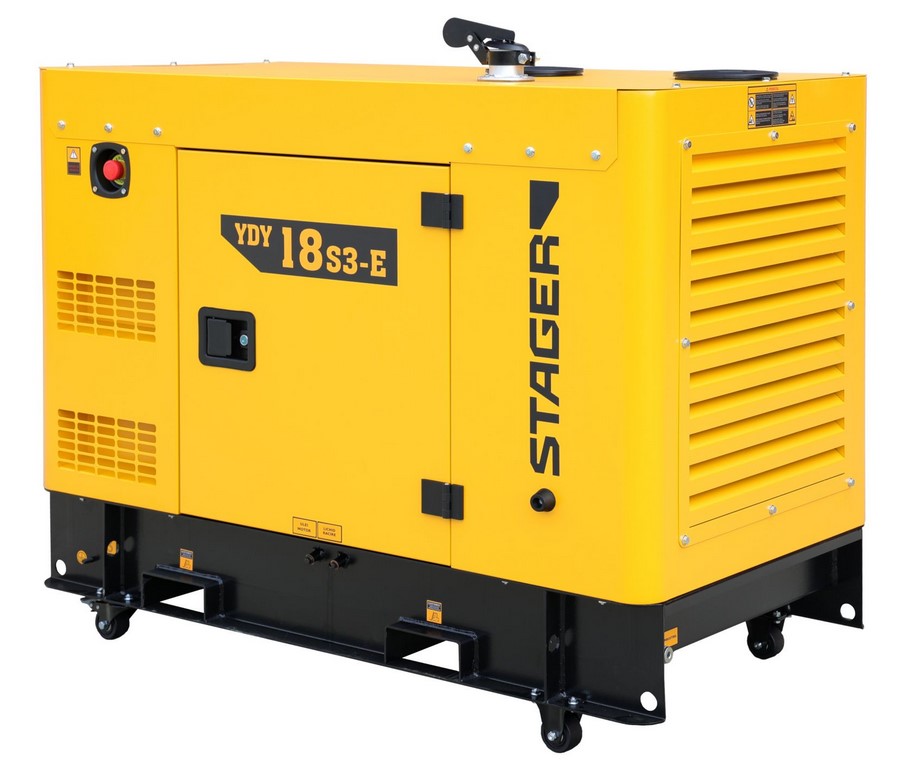

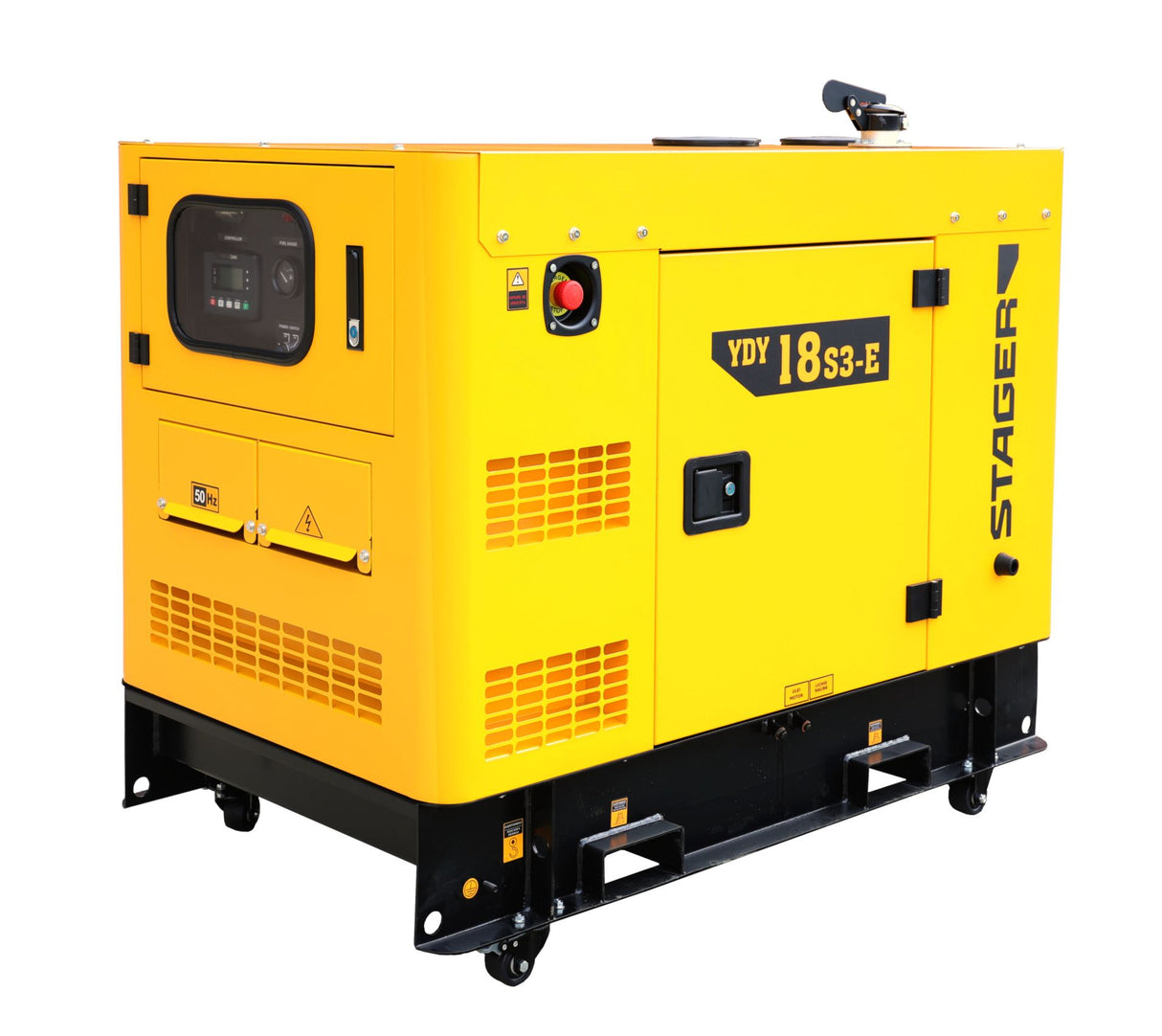

Power generator YORKING YDY 18 S3-E

Name: Power generator YORKING YDY 18 S3-E
Brand: Yorking
SKU: SEV-00180
Price: 831500.0 DZD
Availability: InStock

DA 831,500.00 ~~DA 1,257,800.00~~

Shipping will be calculated at checkout.

Power generator YORKING YDY 18 S3-E is not in stock and will be shipped as soon as available again.

Delivery time: approx. 6 days

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

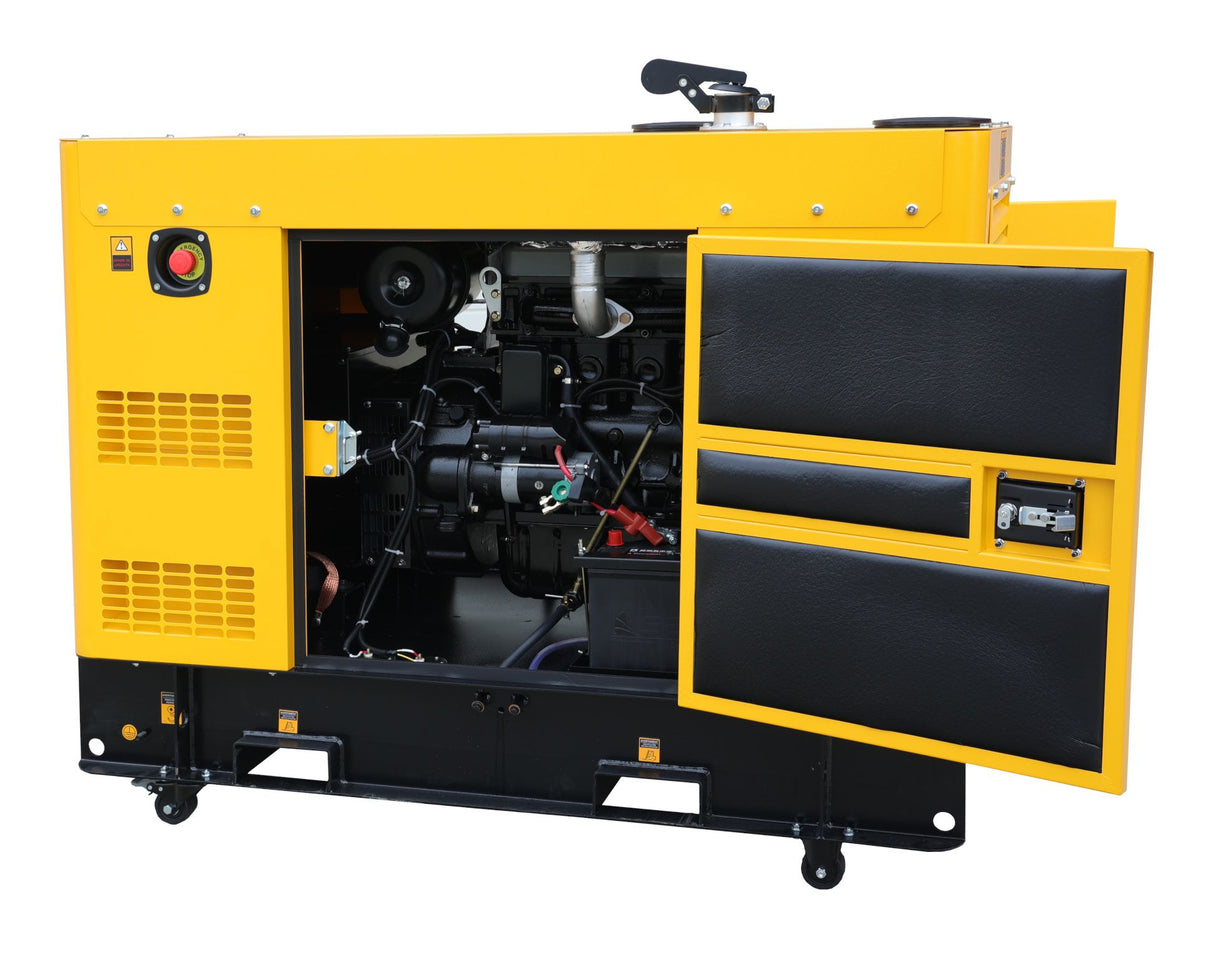

Diesel power generator, 3 phase 230 V, / 400 volts, Super Silent (closed, noise-insulating housing), motor YTO YND485D, max. power 18 kVA, nominal power (POWER) 16 kVA, low oil level alarm, electric starter, new AVR (Automatic Voltage Regulator) ensures automatically regulated output voltage, digital control panel, water cooling, 4 cylinders, 4 doors with 180° opening for better maintenance, engine speed 1,500 rpm ATS Box 1 (automatic emergency power switch) on request for an additional charge of 550 euros plus . legal VAT, only available with power generator, high-quality digital control with engine monitoring, modern diesel technology, 2 Schuko sockets 230 volts, 400 volt terminal strip, elaborate sound insulation reduces the sound level at full load to just 70 db, which is significantly quieter than conventional power generators, (German Operating instructions), unit comes on wheels, weight: 600 kg

Phases		3-phase
Frequency	Hz	50
Output voltage AC	Volts	230 / 400 volts
Output current	AC A	23 A
Rated power	kVA	16
Maximum performance	kVA	18
Motor speed	RPM	1500
Power factor	Cos Φ	0.8
Number of poles		4
AVR (Automatic Voltage Regulator)		Yes

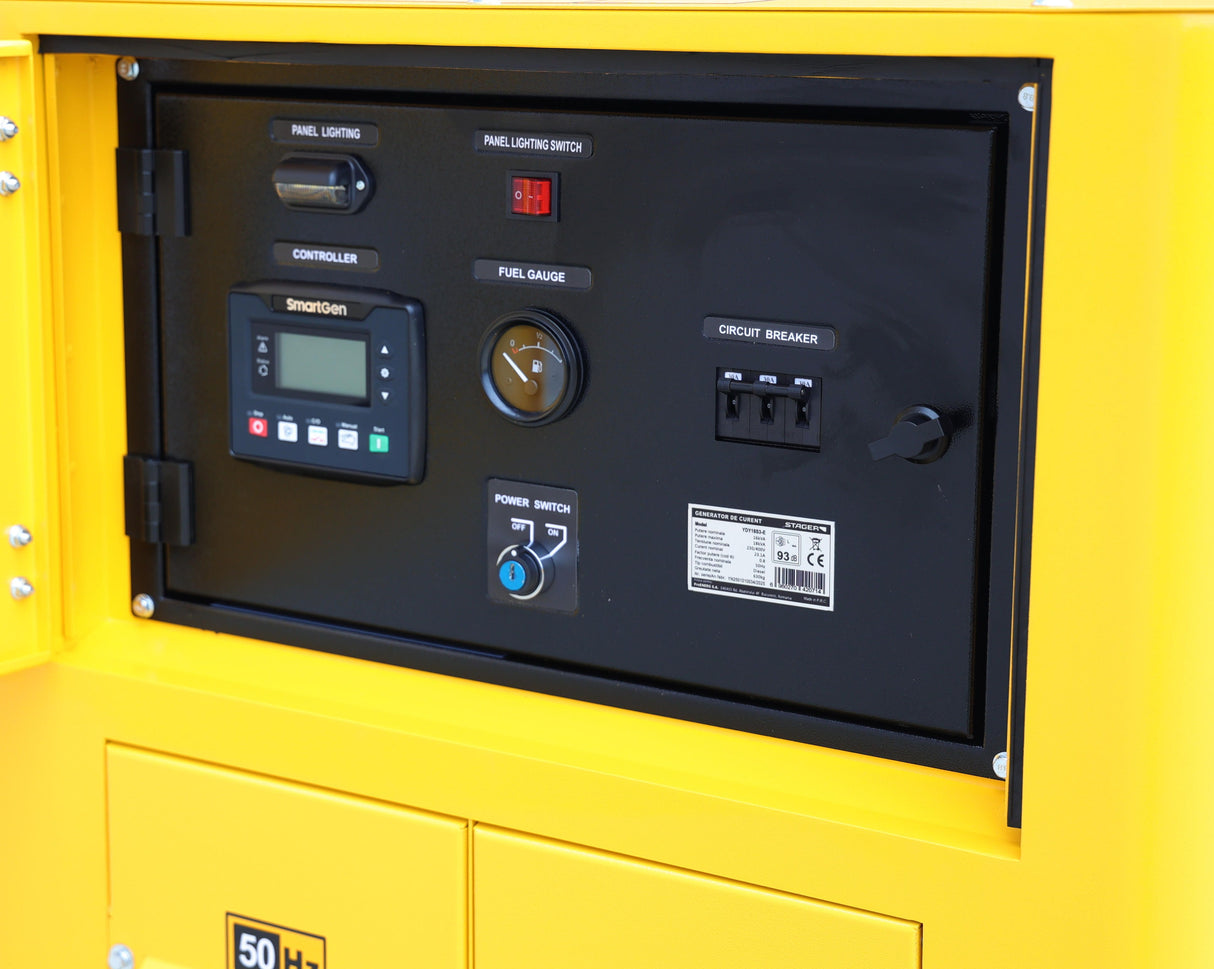

Operation		Digital control unit
ATS (automatic emergency power)		on request
Generator	YORKING	Y164D
Isolation	Class	H
Housing version		Ultra-Silent (closed, noise-insulating housing) unit on wheels
Fuel tank volume	Liters	100
Fuel consumption	g/KW-h	<247
Running time with one tank filling	Hours	approx.21
Noise level	dbA (7m)	70
Weight	Kg	600
Dimensions (L x W x H)	mm	1450 x 780 x 1050
Start system		electric
Starter		12V, 1.4kW
Battery (maintenance-free)		12V 80 Ah
Engine oil		SAE10W30

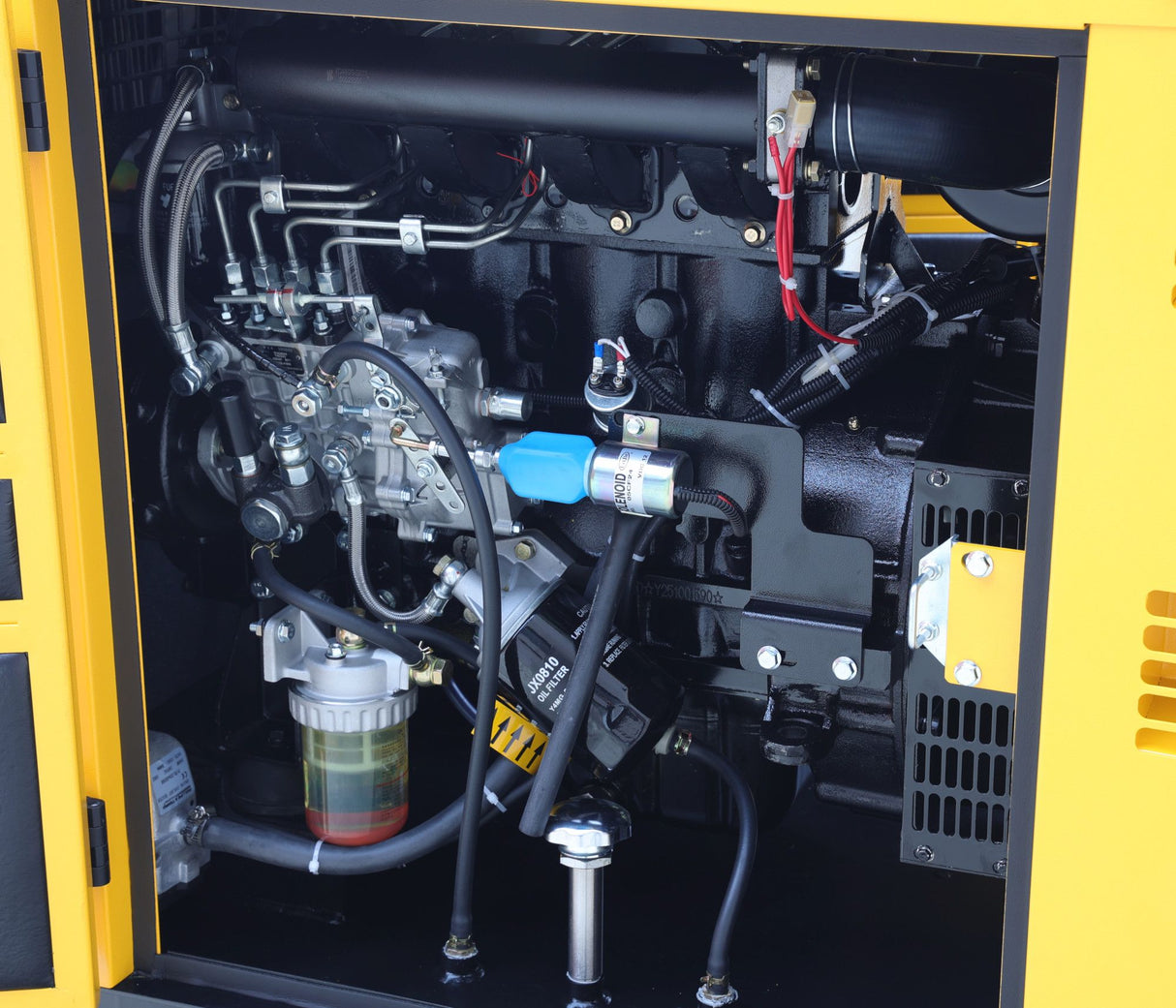

DIESEL ENGINE	YTO	YND485D
Cycle x cylinder		4X4
Cooling system		Water
Diameter x stroke		85x95
Displacement	ccm	2.156
Compression ratio		18:1
Motor power	KW/rpm	17 / 1500
