Yorking | SKU: SEV-00489

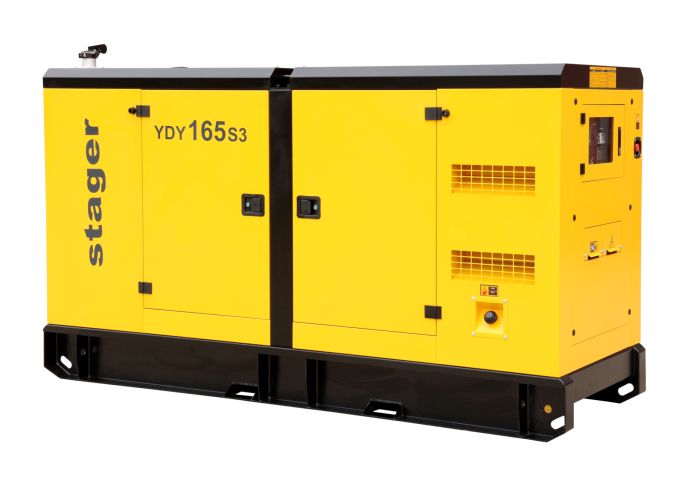

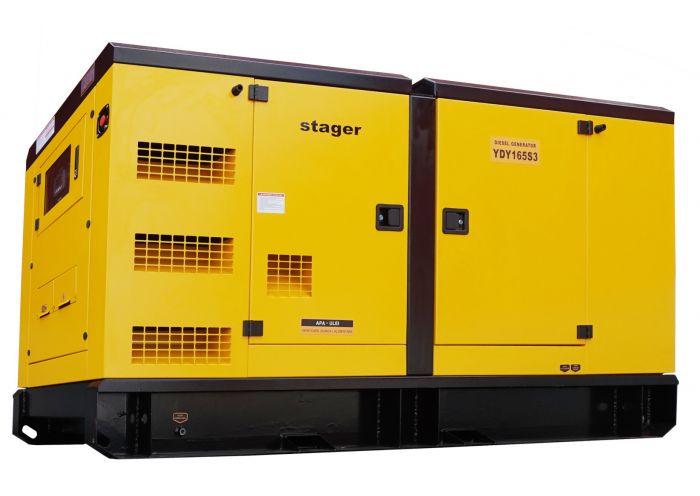

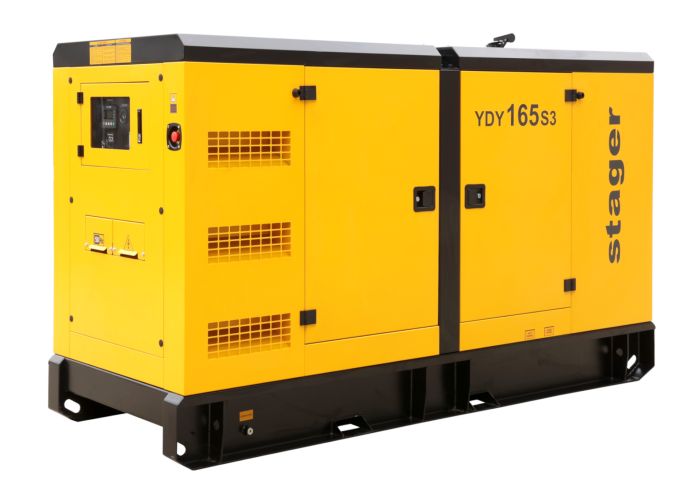

Power generator YORKING YDY 165 S3

Name: Power generator YORKING YDY 165 S3
Brand: Yorking
SKU: SEV-00489
Price: 2253300.0 DZD
Availability: OutOfStock

DA 2,253,300.00 ~~DA 3,817,200.00~~

Shipping will be calculated at checkout.

Delivery time: approx. 12 weeks

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

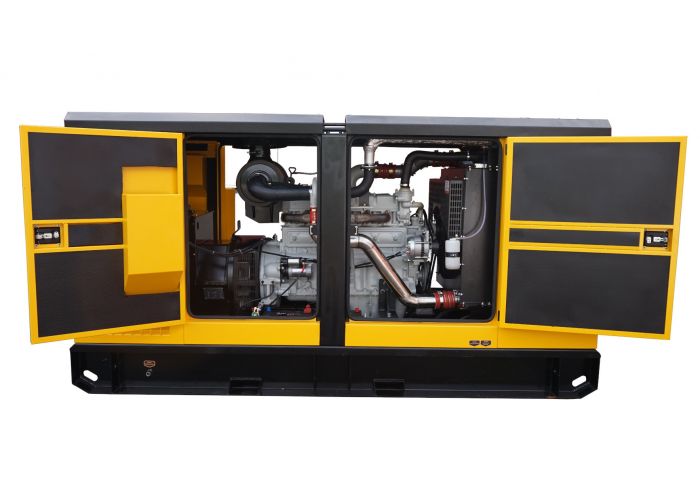

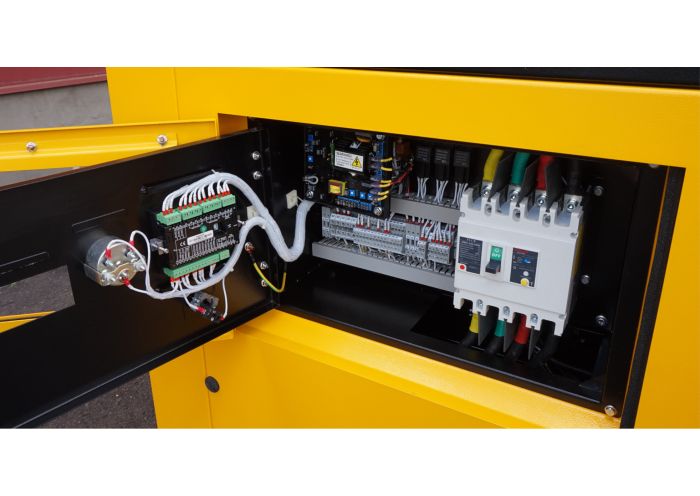

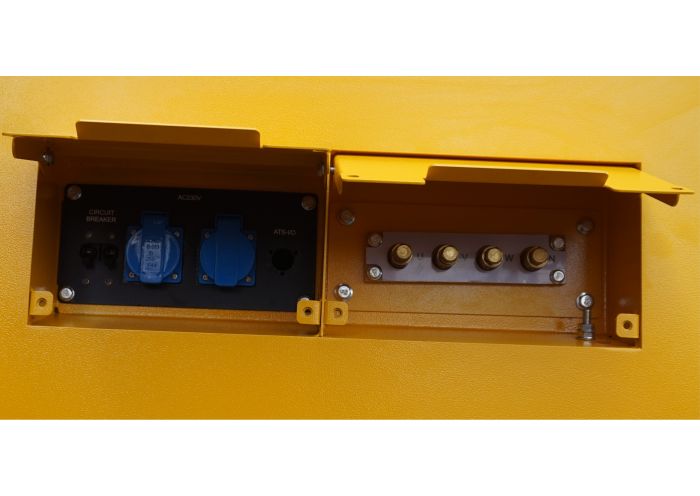

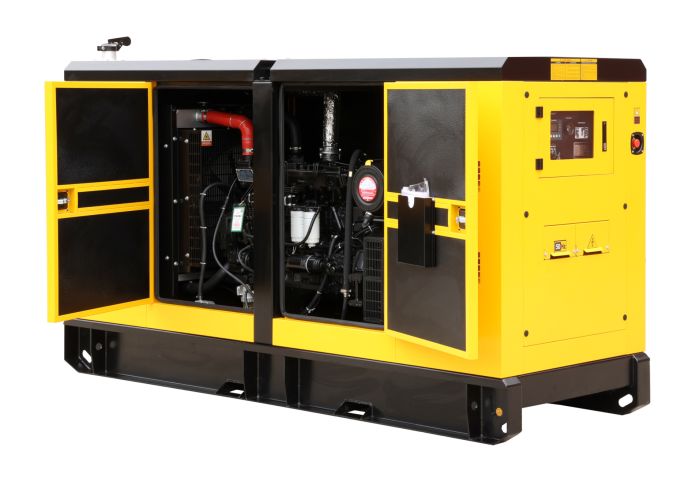

Diesel power generator, 3 phase 230 volts / 400 volts, Super Silent (closed, noise-insulating housing), motor LR6A3L-DA, max. power 165 kVA, nominal power (POWER) 150 kVA, low oil level alarm, electric starter, new AVR (Automatic Voltage Regulator) ensures automatically regulated output voltage, digital control panel, water cooling, 6 cylinders, 4 doors with 180° opening for better maintenance, engine speed 1,500 rpm ATS Box 1 (automatic emergency power switch) on request for an additional charge of 750 euros plus . legal VAT, only available with power generator, high-quality digital control with engine monitoring, modern diesel technology, 2 Schuko sockets 230 volts, 400 volt terminal strip, elaborate sound insulation reduces the sound level at full load to just 73 db, which is significantly quieter than conventional generator sets Operating instructions), weight: approx. 2500 kg

Phases		3-phase
Frequency	Hz	50
Output voltage AC	Volts	230 / 400 volts
Output current	AC A	217 A
Rated power	kVA	150
Maximum performance	kVA	165
Motor speed	RPM	1500
Power factor	Cos Φ	0.8
Number of poles		4
AVR (Automatic Voltage Regulator)		Yes

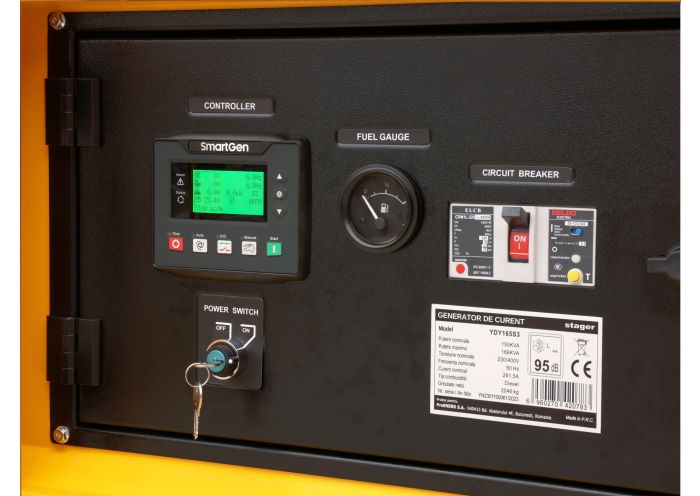

Operation		Digital control unit
ATS (automatic emergency power system)		on request
Generator	YORKING	Y274EL
Excitation system		single bearing, AVR, brushless
Isolation	Class	H
Housing version		Ultra-Silent (closed, noise-insulating housing
Fuel tank volume	Liters	350
Runtime at 75% load		14.5 hours
Noise level	dbA (7m)	73
Weight	Kg	2150
Dimensions (L x W x H)	mm	3060 x 1110 x 1650
Start system		electric
Starter		DC 24V, 1.4 kW
Battery (maintenance-free)		24V 80 Ah
Engine oil		SAE10W30
DIESEL ENGINE	YTO	LR6A3L-D88EF-U2
Cycle x cylinder		4 X 6 in line
Cooling system		Water
Diameter x stroke		105 x 125 mm
Displacement	ccm	6.490
Motor power	KW/RPM	132 / 1,500
