SDMO | SKU: SEV-00428

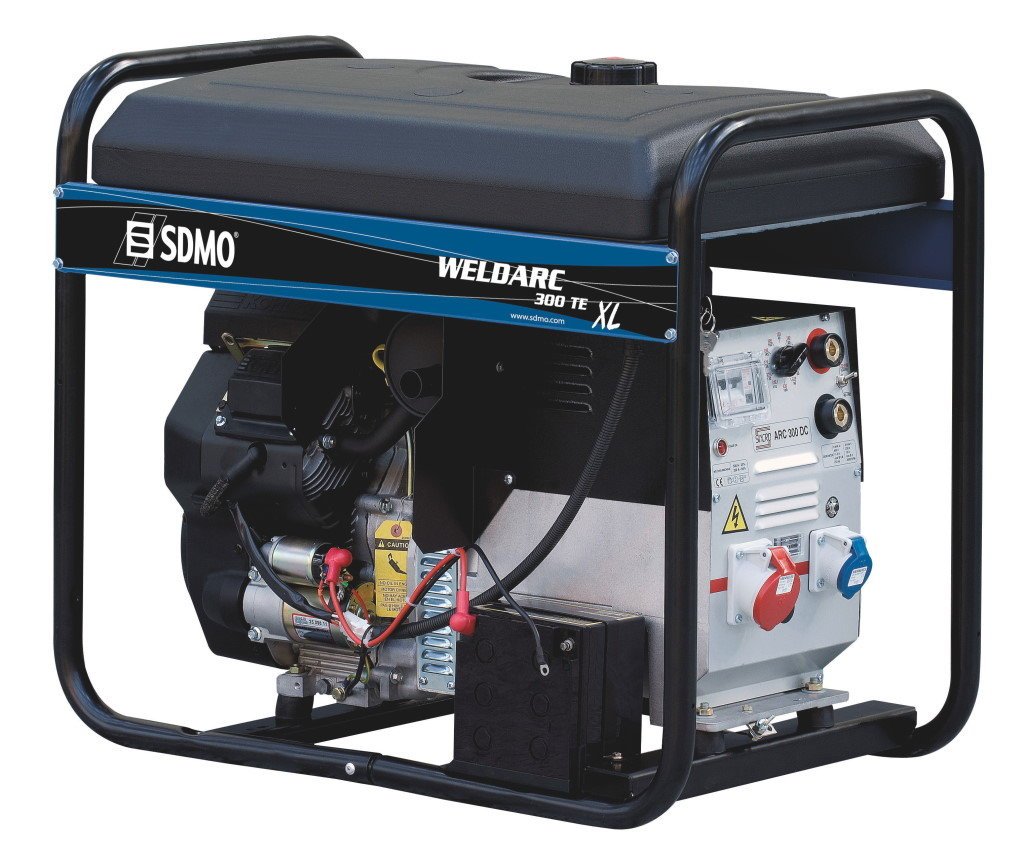

WELDING UNIT SDMO WELDARC 300 TE XL C5

Name: WELDING UNIT SDMO WELDARC 300 TE XL C5
Brand: SDMO
SKU: SEV-00428
Price: 605600.0 DZD
Availability: InStock

DA 605,600.00 ~~DA 721,100.00~~

Shipping will be calculated at checkout.

WELDING UNIT SDMO WELDARC 300 TE XL C5 is not in stock and will be shipped as soon as available again.

Delivery time: approx. 10 weeks

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

Gasoline engine KOHLER CH680 C5 air-cooled. Electric starter with maintenance-free battery, three-phase and alternating current up to 8.8 kVA, electronic welding current control, motor protection (temperature/oil), operating hours counter, synchronous generator, 3-phase, 1 CEE socket 400 volts, 1 Schuko socket 230 volts, Simultaneous use as a welding machine and power generator possible. large tank 33 liters, continuous running time: 8.7 hours.
STAGE V (2016/1628 EU), this product complies with the new environmental regulations in Europe
Weight: 161kg

WELDARC 300 TE XL C5

General technical data
Frequency (Hz)	50
Max power (LTP) (kW)	8.8
Normal welding mode 35% (A)	300
Intensive welding mode 60% (A)	250
Power type	Direct current
Ignition voltage (V)	75
Minimum diameter bar (mm)	1.6
Maximum diameter of rod (mm)	5
Sound power, guaranteed Lw(A)	101
Sound level dB(A) in 7m	72

Technical data engine
Make engine	Kohler
Motor Type	CH 680 C5
Valve arrangement	O.H.V.
Start	Electrical
Fuel	Petrol (unleaded)
Autonomy (h)	8.7
Consumption (L/h)	3.8
Tank (L)	33
Low oil shutdown	Yes
Displacement (cc)	674
Oil capacity (l)	1.9

Technical data generator
Model	Synchronous
Control	Mechanics
Protection class	IP 23
Insulation class	H

Connections and control panel
1 connection 230V 16A - circuit breaker + 1 x 16A 400V CEE 3P+N+T - circuit breaker + operating hours counter + differential protection

Dimensions and weight
Length (cm)	89.5
Width (cm)	57
Height (cm)	77
Net weight (kg)	161
