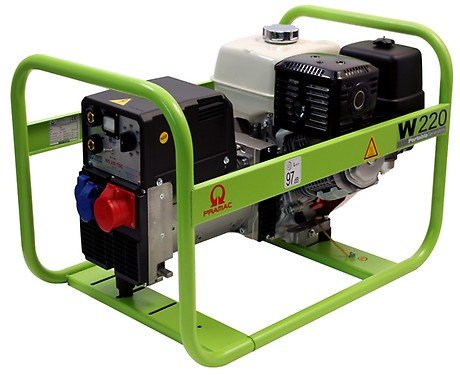

Welding unit PRAMAC W 220
Welding unit PRAMAC W 220 is not in stock and will be shipped as soon as available again.
Delivery time: approx. 12 weeks
Availability for pickups could not be loaded
Questions to the product?
Questions to the product?
Shipping Information
Shipping Information
Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).
We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.
Please contact us if you have special delivery requirements.
Welding unit PRAMAC W 220
|
Weldment D.C. |
|
Basic, rutile electrodes |
|
Control range, stepless |
A |
40 - 220 A |
|
Min./Max. Welding voltage |
Volts |
21.6 / 28.8 |
|
On time |
(ED) |
170A-60% |
|
Electrode diameter |
mm |
5 |
|
|
|
|
|
A.C.Generator |
|
50 HZ, asynchronous, 3 phases, self-exciting, self-regulating, brushless |
|
Performance LTP |
3 - phase |
6.1 kVA / 400 volts |
|
Performance LTP |
1 - phase |
2.7 kVA / 230 volts |
|
Startup help |
DC |
170A / 12V |
|
Isolation class |
|
H |
|
|
|
|
|
Motor |
|
Gasoline engine, 4-stroke, air-cooled |
|
Type |
|
HONDA GX 390 |
|
Performance |
kW |
7.7 (10.5 HP) |
|
Speed |
|
3000 rpm |
|
Displacement/Cylinder |
|
389 cm³ / 1 |
|
Fuel |
|
Gasoline |
|
Fuel consumption |
|
2 L / h |
|
|
|
|
|
Other data |
|
|
|
Tank content |
Liters |
6.1L |
|
Runtime |
75% load |
2.8h |
|
Protection class |
|
IP 23 |
|
Sockets |
|
1 x Schuko 230 V 16A IP54 1 x CEE 230V 16A IP44 1 x CEE 400V 16A |
|
Dimensions L x W x H |
mm |
875 x 620 x 600 |
|
Empty weight |
||
|
kg |
80 |
-
Start system
