Endress | SKU: SEV-00230

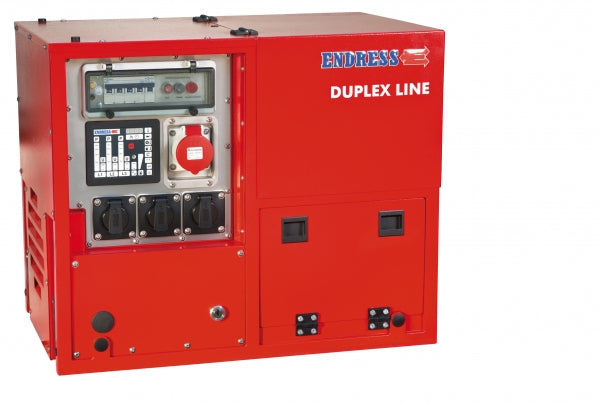

Power generator ENDRESS ESE 608 DHG-ES DI ISO Duplex silent

Name: Power generator ENDRESS ESE 608 DHG-ES DI ISO Duplex silent
Brand: Endress
SKU: SEV-00230
Price: 1281500.0 DZD
Availability: InStock

DA 1,281,500.00 ~~DA 1,507,300.00~~

Shipping will be calculated at checkout.

Power generator ENDRESS ESE 608 DHG-ES DI ISO Duplex silent is not in stock and will be shipped as soon as available again.

Delivery time: more than 6 months

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

Power generator, diesel engine, electric start with battery, IP 54, soundproofed only 69 dB(A), HATZ engine 1B 50 / 11 HP. Insulation monitoring according to GW 308, maximum power 6.6 kVA for a variety of uses, 4.5 hours running time, fuel supply via vehicle, standard or fuel canister through the intelligent refueling system, 100% stable running, small dimensions, weight: 150 kg

ENDRESS ESE 608 DHG-ES DI ISO Duplex silent

Generator	Duplex
Max. Power kVA / kW	6.6 / 5.3 4.4 / 4.0
Duration power	6.0 / 4.8 4.0 / 3.6
Rated voltage	400 volts 3~ 230 volts 1~
Rated current	8.7 A 3~ 17.4 A 1~
Power factor cos φ	0.8 0.9
Frequency / protection class	50 HZ / IP 54
Voltage regulation	Maxdrive

Motor type	HATZ 1B 50 / 11 HP
Type	1 cylinder 4 stroke
Displacement	517 cm³
Power 3,000 rpm	7.6 kW
Fuel / tank capacity	Diesel / 6 liters
Consumption 3/4 load / running time	1.3 l. / 4.5 h
Startup system	Electric starter incl.Battery
Sound power level LWA	94 dB(A)
Sound pressure level	62 dB(A)
Weight in kg	150
Dimensions (LxWxH) in mm	700 x 440 x 580

Features:

Safety contact sockets

3 x 230 V / 16 A

1 x CEE 400 V / 16 A

Insulation monitoring according to GW 308, connection for external refueling, operating hours counter, foldable carrying handles, generator overload protection

Possible non-binding areas of application	400 volts 230 volts
Electronic consumers to	4800W 3600W
Power tools to	4700W 3500W
Garden tools or construction equipment to	3200W 2400W
Compressors or pumps to	2400W 1800W
Inverter welding machines to	3.25mm
