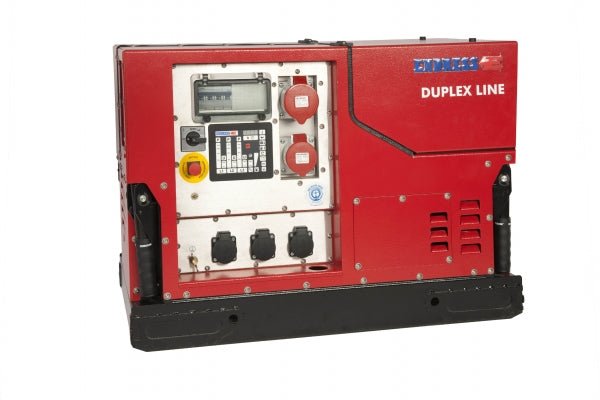

Power generator ENDRESS ESE 1308 DBG-ES ISO Duplex silent

Name: Power generator ENDRESS ESE 1308 DBG-ES ISO Duplex silent
Brand: Endress
SKU: SEV-00210
Price: 1302200.0 DZD
Availability: InStock

DA 1,302,200.00 ~~DA 1,550,100.00~~

Shipping will be calculated at checkout.

Power generator ENDRESS ESE 1308 DBG-ES ISO Duplex silent is not in stock and will be shipped as soon as available again.

Delivery time: more than 6 months

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

Power generator, petrol engine, electric start including battery, portable, IP 54, elaborately soundproofed, BRIGGS & STRATTON VANGUARD engine / 22 HP. Insulation monitoring according to GW 308, maximum power 14.3 kVA for a variety of uses, 3.5 hours runtime. ECOtronic system is an environmentally friendly alternative to conventional power generation, the power electronics regulates and controls the engine speed and specifies the optimal speed range, DUPLEX generators are brushless and have an intelligent exciter machine, 100% stable running, 3 year guarantee, large tank, crane loading eye, weight: 150kg

ENDRESS ESE 1308 DBG ES ISO Duplex Silent

Generator	Duplex
Max. Power kVA / kW	14.3 / 11.4 7.7 / 6.9
Duration power	13.0 / 11.2 7.0 / 6.3
Rated voltage	400 volts 3~ 230 V 1~
Rated current	18.8A 3~ 30.4A 1~
Power factor cos φ	0.8 0.9
Frequency / protection class	50 HZ / IP 54
Voltage regulation	electronic

Motor type	BRIGGS & STRATTON VANGUARD / 22 HP
Type	2 cylinder 4 stroke OHV
Displacement	627 cm³
Power 3,000 rpm	14.1 kW
Fuel / tank capacity	Petrol / 12 liters
Consumption 3/4 load / running time	3.4 l. / 3.5 h
Startup system	Electric starter incl.Battery
Sound power level LWA	93 dB(A)
Sound pressure level LPA	68 dB(A)
Sound pressure level (ECOtronic optional)	56 dB(A)
Weight in kg	150
Dimensions (LxWxH) in mm	820x440x580

Features:

Safety contact sockets

3 x 230 V / 16 A

1 x CEE 400 V / 16 A

1 x CEE 400 V / 32 A

Standard equipment:

Tank level display, insulation monitoring according to GW 308,

Operating hours counter,

Connection for external refueling,

Tank level indicator visual,

Automatic oil shortage switch-off, generator overload protection,

Foldable carrying handles,

Special equipment:

ECOtronic system,

FI circuit breaker including grounding set,

Cable remote control (50m),

Radio remote control,

Automatic Choke,

Multifunction Control System,

Exhaust hose,

Automatic emergency power

Possible non-binding areas of application	400 volts 230 volts
Electronic consumers to	11400W 6300W
Power tools to	11300W 6200W
Garden tools or construction equipment to	7500W 4200W
