Endress | SKU: SEV-00733

ENDRESS ESE 60 IW/IT-TN IT/TN Emergency Generator

Name: ENDRESS ESE 60 IW/IT-TN IT/TN Emergency Generator
Brand: Endress
Price: 5472100.0 DZD
Availability: InStock

DA 5,472,100.00

Shipping will be calculated at checkout.

ENDRESS ESE 60 IW/IT-TN IT/TN Emergency Generator is not in stock and will be shipped as soon as available again.

Delivery time: approx. 12 weeks

Collection possible from warehouse Fabrikstr. 1

Collection date after consultation

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

Your legal guarantee rights

LEGAL GUARANTEE Minimum two-year legal guarantee protection for goods sold in the European Union. Consumers can claim their rights under the legal guarantee of conformity, for example if goods: do not match the description; do not function as intended. Sellers are liable for any lack of conformity which existed when the goods were delivered, and which becomes apparent within the legal guarantee period. Sellers in such a situation are required to offer: free repair or free replacement; in some cases, a price reduction or full reimbursement. Some countries have a longer legal guarantee period. For second-hand goods, a shorter period may apply, but not less than one year. For more information on your rights in a specific country, scan the QR code below or ask the seller. europa.eu/youreurope/guarantees What to do if you receive non-conforming goods: 1 Contact the seller as soon as possible to report the issue; 2 Provide proof of purchase, such as a receipt, invoice, or bank statement. Sellers and producers may also offer commercial guarantees, which apply independently from the legal guarantee. For example, you may see this GARAN label representing a commercial guarantee of durability offered by the producer at no additional cost and covering the entire good.

Open the legal guarantee notice on Your Europe

BACKUP POWER · IT/TN

ENDRESS ESE 60 IW/IT-TN

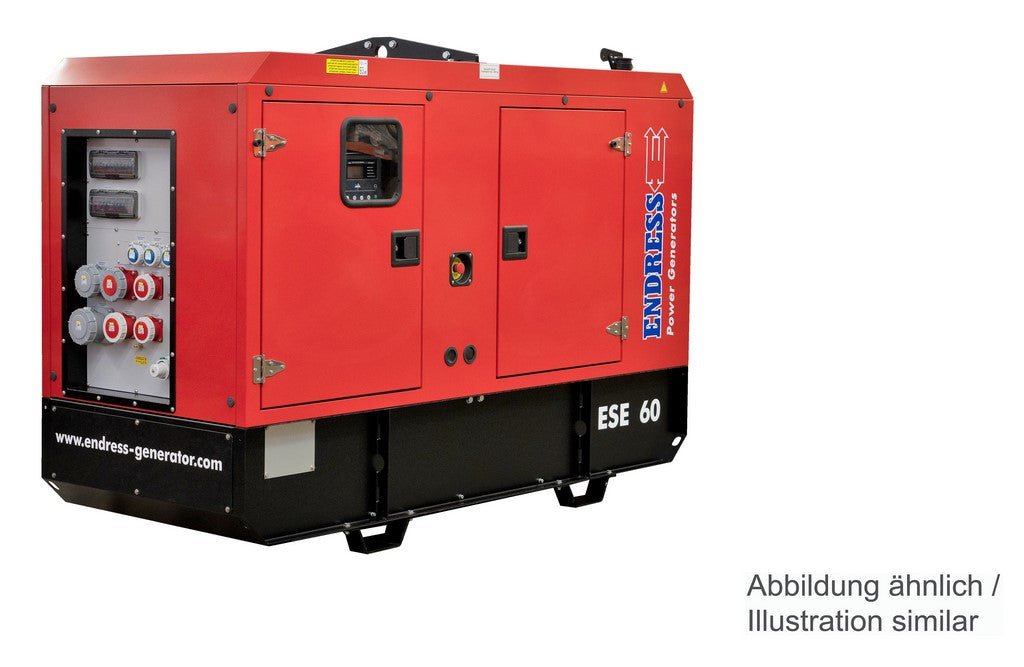

ENDRESS ESE 60 IW/IT-TN is a sound-attenuated, three-phase diesel power generator with a FPT F34TEVP01 engine and MECC ALTE ECP32-2M/4C alternator. It delivers 60.3 kVA (48.2 kW) maximum LTP power and 60.3 kVA (48.2 kW) prime power (PRP). IT/TN changeover and insulation monitoring support mobile use and a properly planned building supply.

Key specifications

Maximum output

60.3 kVA

48.2 kW LTP

Continuous output

60.3 kVA

48.2 kW PRP

Voltage

400 / 230 V

3-phase · 50 Hz

Tank capacity

209 litres

Diesel

Runtime (approx.)

25.1 h

at 75% PRP

Weight

1,250 kg

Specific configuration

Benefits and equipment

✓

IT/TN changeover
Operation for different supply arrangements

✓

Insulation monitoring
Support for use in IT mode

✓

Building supply connection
Dedicated CEE 1h feeder according to the equipment specification

✓

Stage V diesel engine
Water-cooled industrial diesel at 1,500 rpm

✓

Electronic AVR
Regulated three-phase output voltage

✓

Sound-attenuated canopy
Reduced sound emission and protected components

✓

Maintenance access
Engine, alternator and control panel remain accessible

✓

Electrical safety
Electrical changeover and protection to match the installation

Suitable applications

Fire and rescue servicesMobile technical operations and emergency power

Building backupFeed-in only through a compliant changeover system

Civil protectionEmergency supply at incident sites

Municipal infrastructurePlanned replacement power arrangements

Technical specifications

Power and electrical data

Continuous power (PRP)60.3 kVA / 48.2 kWMaximum power (LTP)60.3 kVA / 48.2 kWNominal voltage400 / 230 VFrequency50 HzPhasesThree-phasePower factorcos φ 0,8Voltage regulatorElectronic AVR

Engine and alternator

FuelDieselEngineFPT F34TEVP01AlternatorMECC ALTE ECP32-2M/4CEngine speed1,500 rpmCoolingWater-cooledEmissions stageEU Stage VStart systemElectric start

Connections, fuel and protection

Building feed-inCEE 400 V / 125 A · 1h (verify configuration)Industrial CEE sockets400 V / 63 A, 32 A, 16 A; check unit230 V outlets230 V / 16 A, per model equipmentTank capacity209 lRuntime at 75% PRP (approx.)25.1 hFuelDieselOperating principleIT/TNSound attenuationSound-attenuated canopyIT/TN changeoverFitted on this modelInsulation monitoringAccording to product configurationControl panelAccording to installed modelBuilding supplyRequires proper transfer switch and installation

Dimensions and weight

Length × width × height2,400 × 1,040 × 1,741 mmWeight1,250 kgSound pressure at 7 m68 dB(A)

Equipment and notes

Product seriesIT/TNAdditional informationCheck ratings against the exact documentationAdditional product descriptionThe ENDRESS ESE 60 IW/IT-TN is designed for emergency services, municipalities and emergency backup applications. A water-cooled engine running at 1,500 rpm drives the electronically regulated alternator. The IT/TN operating mode and appropriately configured feeder connections enable flexible site operation; building integration must be carried out by qualified electrical personnel.Technical noteSpecifications refer to the listed version; the configuration, regulatory suitability and options must be verified before ordering.
