Endress | SKU: ES-00017

Reduced by 14%

Energy storage ENDRESS EES D 30/30

Name: Energy storage ENDRESS EES D 30/30
Brand: Endress
Price: 6858700.0 DZD
Availability: InStock

DA 6,858,700.00 DA 7,936,000.00

Shipping will be calculated at checkout.

Energy storage ENDRESS EES D 30/30 is not in stock and will be shipped as soon as available again.

Delivery time: approx. 10 weeks

Collection possible from warehouse Fabrikstr. 1

Collection date after consultation

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

Your legal guarantee rights

LEGAL GUARANTEE Minimum two-year legal guarantee protection for goods sold in the European Union. Consumers can claim their rights under the legal guarantee of conformity, for example if goods: do not match the description; do not function as intended. Sellers are liable for any lack of conformity which existed when the goods were delivered, and which becomes apparent within the legal guarantee period. Sellers in such a situation are required to offer: free repair or free replacement; in some cases, a price reduction or full reimbursement. Some countries have a longer legal guarantee period. For second-hand goods, a shorter period may apply, but not less than one year. For more information on your rights in a specific country, scan the QR code below or ask the seller. europa.eu/youreurope/guarantees What to do if you receive non-conforming goods: 1 Contact the seller as soon as possible to report the issue; 2 Provide proof of purchase, such as a receipt, invoice, or bank statement. Sellers and producers may also offer commercial guarantees, which apply independently from the legal guarantee. For example, you may see this GARAN label representing a commercial guarantee of durability offered by the producer at no additional cost and covering the entire good.

Open the legal guarantee notice on Your Europe

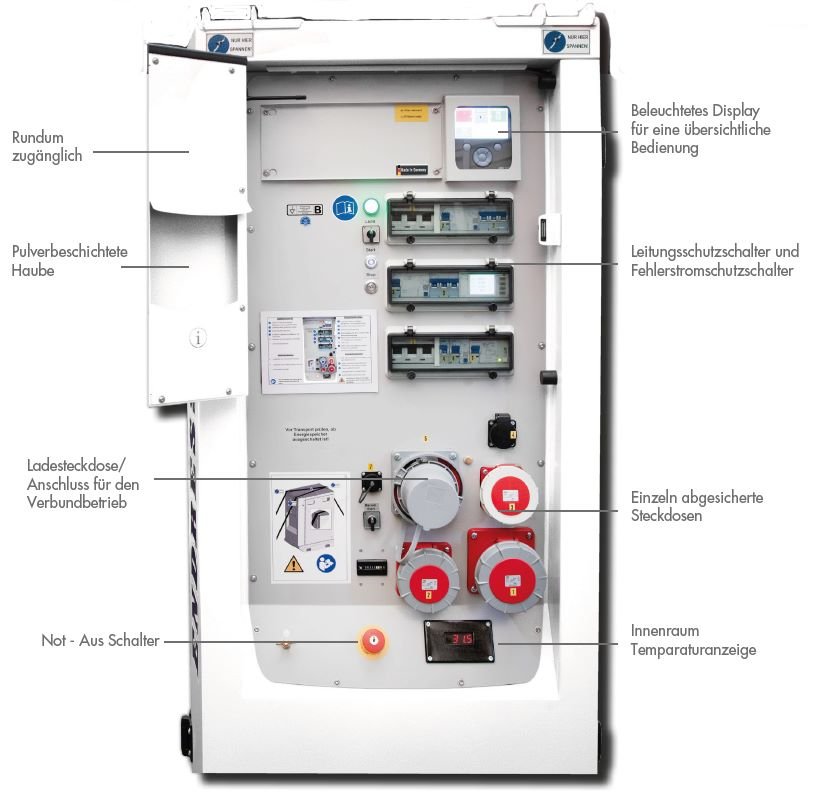

Innovative battery storage system with lithium-ion batteries, safe and easy operation thanks to a clear control panel, can be switched in parallel to increase capacity, combination of energy storage and power generator achieves a downsizing of the required power generator by approx. 30%.

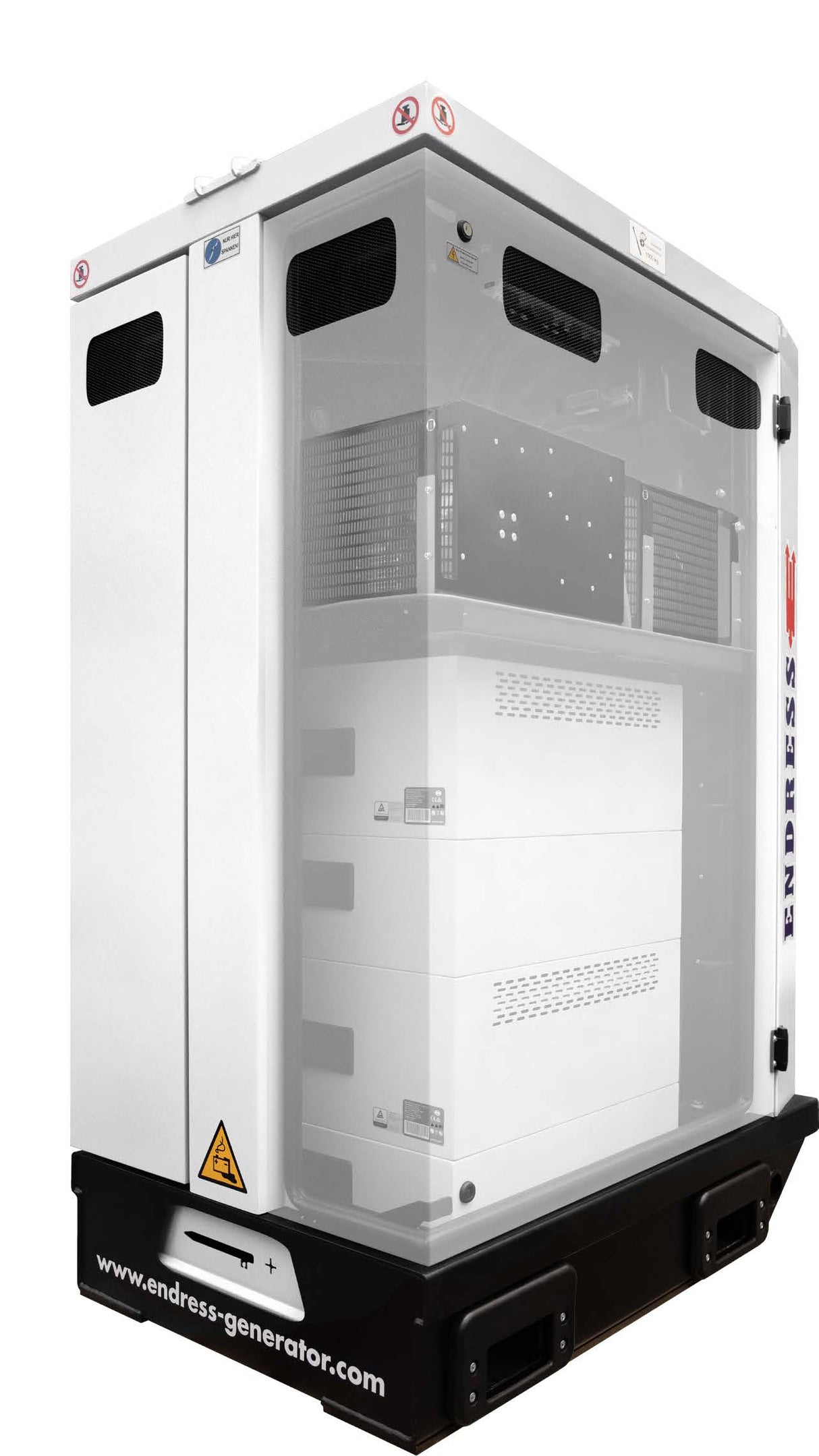

Base frame with continuous forklift tabs, crane loading eye, Euro pallet dimensions (W 120cm x D 80cm), all-round access through large maintenance doors, sophisticated cooling - air intake via air filter element from above for dust-free interior, operating temperature range -10°C / +50°C.
Peak output power of 60 kVA, output power (continuous power) 22.5 kVA, nominal battery capacity 30 kWh, weight 900 kg
<p> Optional accessories: 4G/GPS module including antennas, Bluetooth module, FI circuit breaker type B all-current sensitive, version B according to DGUV information 203-032 as an IT system</p>

ZERO EMISSION · ENERGY STORAGE

ENDRESS ESS D 30/30

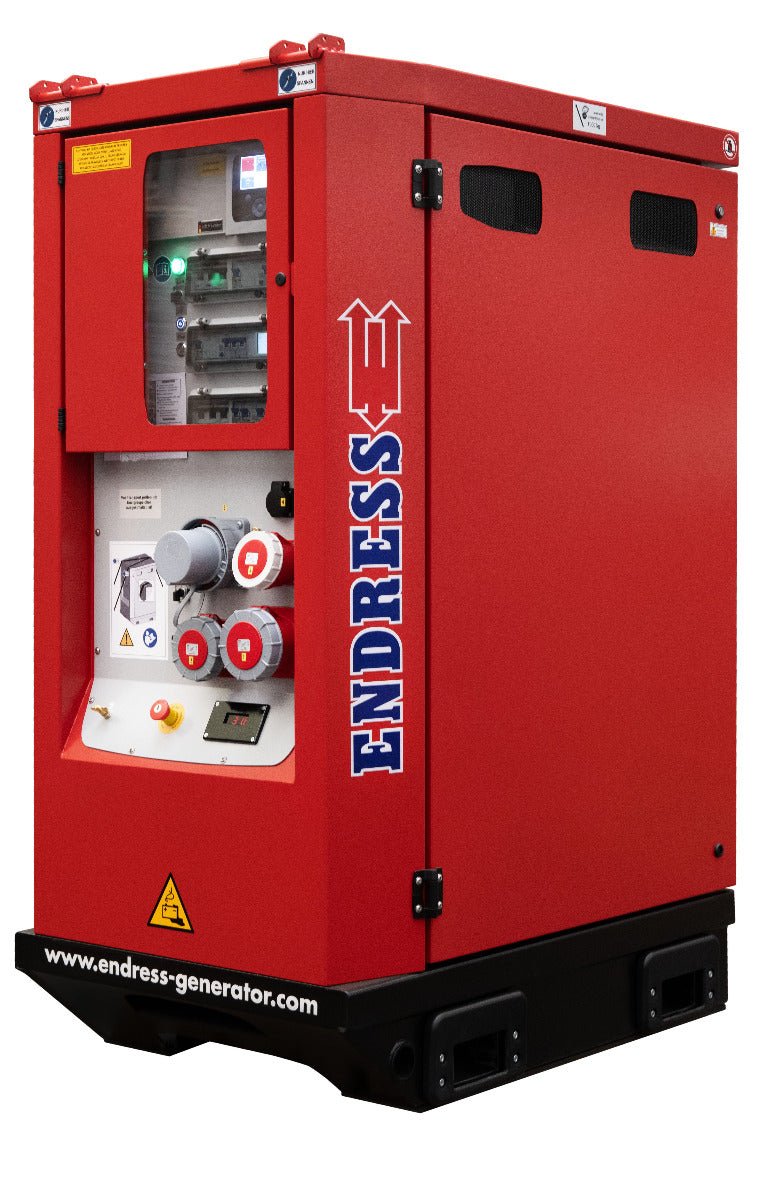

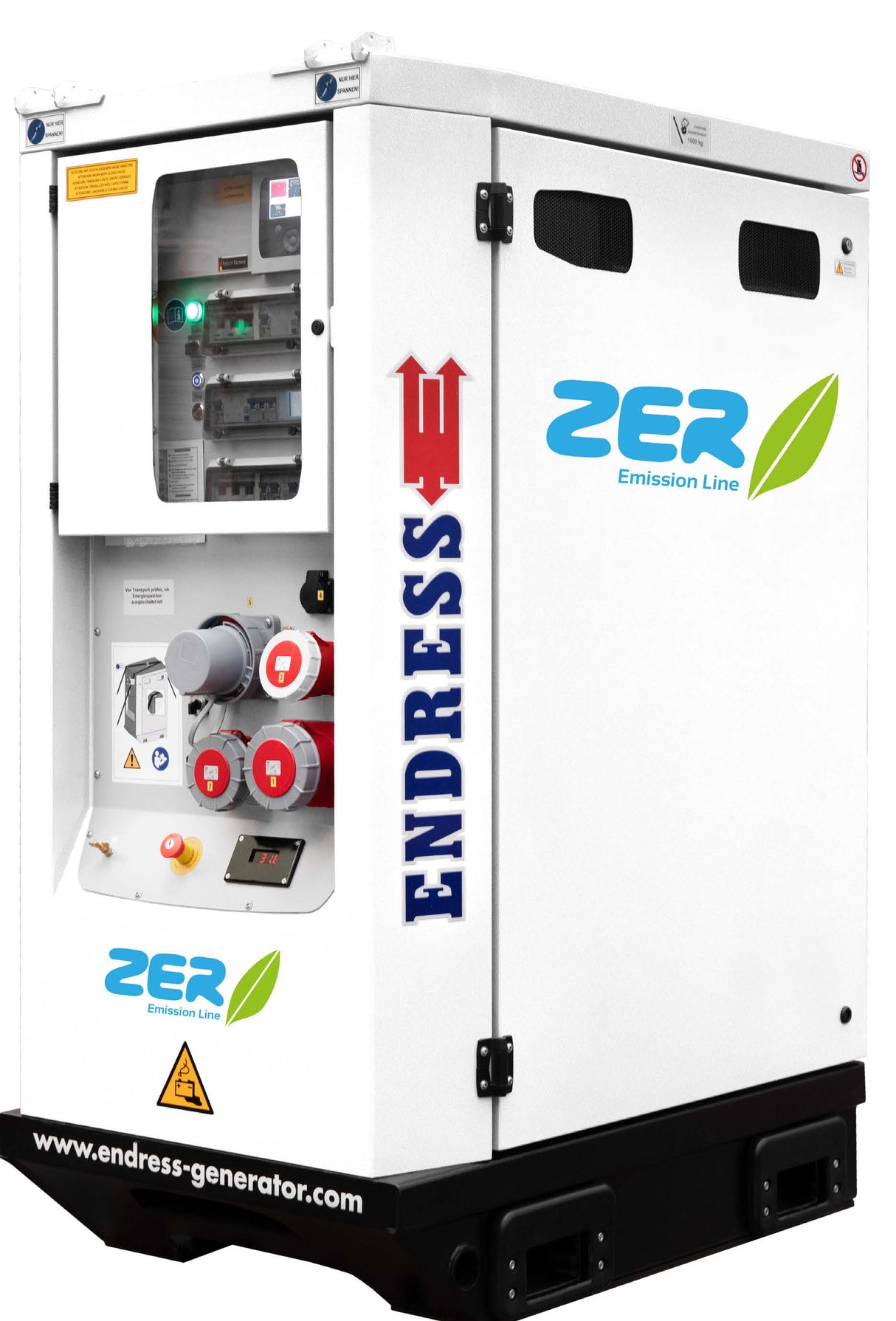

ENDRESS ESS D 30/30 is a mobile lithium battery energy storage system with 30 kWh battery capacity and 22.5 kVA continuous output. It supplies local power without exhaust emissions and may operate in hybrid mode with a compatible generator.

Key specifications

Capacity

30 kWh

Power and electrical data

Continuous output

22.5 kVA

Power and electrical data

Peak output

60 kVA

Power and electrical data

Weight

900 kg

Power and electrical data

Approx. charging time

1.8 h

Charging and operation

Rated voltage

400/230 V

Power and electrical system

Benefits and equipment

✓

Exhaust-free battery operation
Battery operation without local exhaust.

✓

Quiet power supply without a running engine
Power without a running combustion engine.

✓

Integrated battery and protection management
Integrated monitoring and safety functions.

✓

Mobile and robust design
For changing deployment sites.

✓

Grid and compatible generator charging
For compatible charging and generation systems.

✓

Hybrid load management
Load-dependent electricity supply.

Suitable applications

Construction and night worksMobile power supply.

EventsQuiet operation for suitable loads.

Temporary power supplyTemporary energy storage and supply.

Mobile workspacesElectricity for changing workplaces.

Technical specifications

Power and electrical data

Continuous output22.5 kVAPeak output60 kVANominal rating30 kVARated voltage400/230 VPhasesThree-phaseFrequency50 Hz

Battery and charging

Battery capacity30 kWhBattery chemistryLithium-ionBattery cycles (manufacturer)6000Battery managementIntegratedApprox. charging time1.8 hGrid chargingSupportedGenerator hybrid modeWith compatible configurationOperating modeIsland mode / optional integration

Connections and protection

InputCEE 400 V / 125 AOutput sockets2 × 230 V / 16 A; 1 × CEE 400 V / 32 A; 1 × CEE 400 V / 63 A; 1 × CEE 400 V / 125 ASocket configurationModel- and configuration-specificProtection ratingIP54Overcharge protectionVia battery managementResidual current protectionRCD depending on configurationRemote monitoringOptional E-RMA connectivity

Dimensions and weight

L × W × H1200 × 800 × 1750 mmWeight900 kgTransportMobile battery storage system

Additional specifications

ManufacturerENDRESSModelENDRESS ESS D 30/30Manufacturer reference610022ApplicationProfessional power supplyTechnical noteSpecifications depend on product revision and configuration. Power, flow and runtime figures are rated or maximum values under specific conditions.
