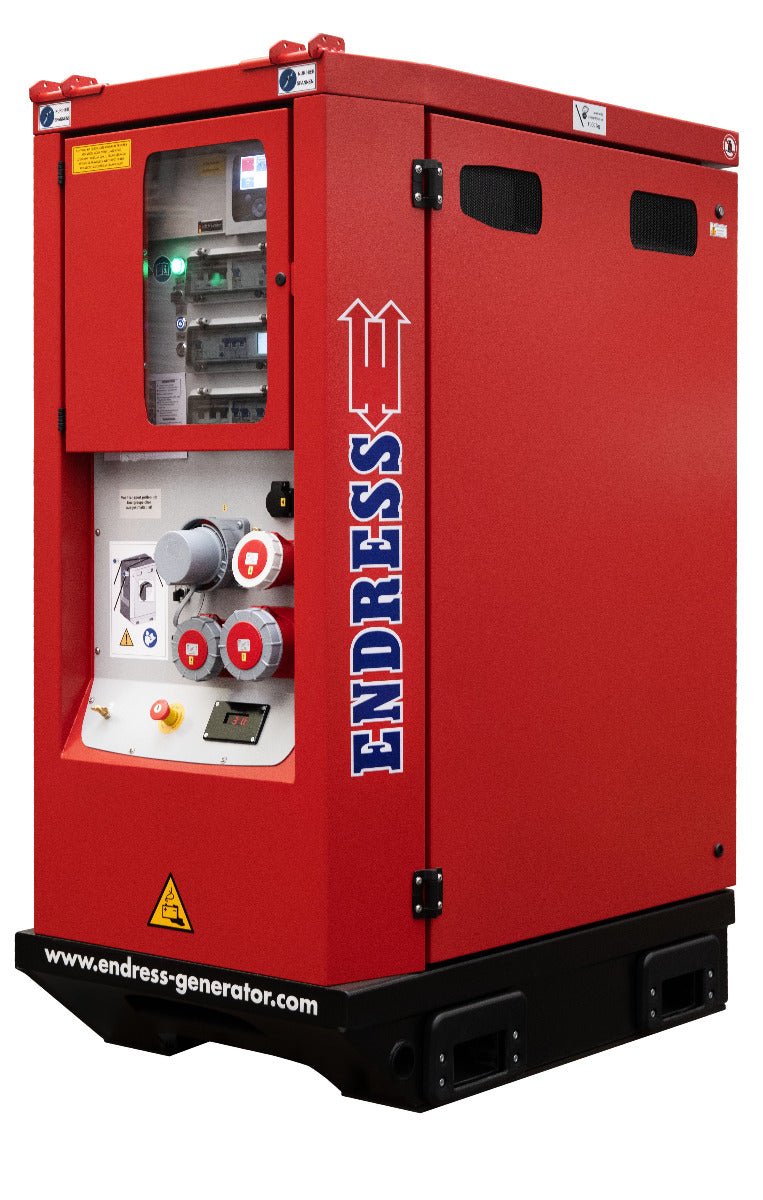

Energy storage ENDRESS EES D 15/30
Technical data of the Endress EES energy storage:
|
Power section |
|
EES D 15/15 |
EES D 15/30 |
EES D 30/30 |
|
Order No. |
|
610023 |
610024 |
610022 |
|
Rated power |
kVA |
15 |
15 |
30 |
|
Continuous performance at 25°C |
kVA |
12 |
12 |
22.5 |
|
Peak performance at 25°C |
kVA |
30 |
30 |
60 |
|
Nominal voltage |
V |
400/230 |
400/230 |
400/230 |
|
Output rated current in island operation |
A |
17.5 |
17.5 |
35 |
|
Output rated current in the network max. |
A |
125 |
125 |
125 |
|
Protection class |
IP |
54 |
54 |
54 |
|
Dimensions and Weight |
|
|
|
|
|
Weight approx. |
kg |
700 |
850 |
900 |
|
Dimensions L x W x H |
mm |
1200 x 800 x 1750 |
1200 x 800 x 1750 |
1200 x 800 x 1750 |
|
Battery system |
|
|
|
|
|
Rated capacity |
kWh |
15 |
30 |
30 |
|
Battery charge cycles |
|
6000 |
6000 |
6000 |
|
Operating temperature range |
°C |
-10 to +50 |
-10 to +50 |
-10 to +50 |
|
Charging time approx. |
h |
1.4 |
2.8 |
1.8 |
|
Sockets |
EES D 15/15 |
EES D 15/30 |
EES D 30/30 |
|
Input socket |
CEE 400V/125A |
CEE 400V/125A |
CEE 400V/125A |
|
Output sockets |
2x 230 V / 16A 1x CEE 400 V / 32A 1x CEE 400 V / 63A 1x CEE 400 V / 125A |
2x 230 V / 16A 1x CEE 400 V / 32A 1x CEE 400 V / 63A 1x CEE 400 V / 125A |
2x 230V / 16A 1x CEE 400V / 32A 1x CEE 400V / 63A 1x CEE 400V / 125A |
Optional accessories:
4G/GPS module incl.Antennas, Bluetooth module, FI circuit breaker type B all-current sensitive, version B according to DGUV Information 203-032 as an IT system
Off grid operation:

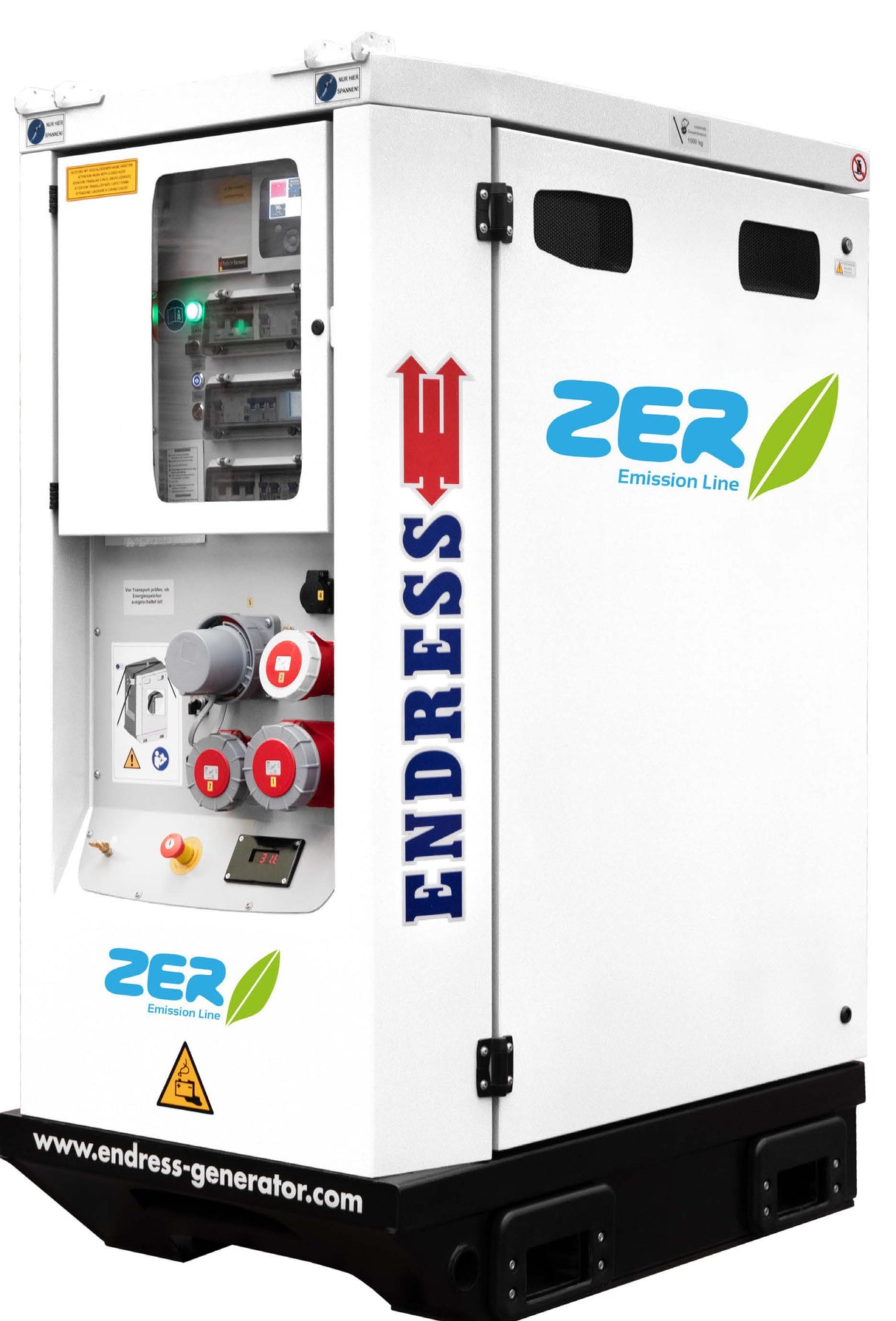

The ENDRESS energy storage devices from the EES Zero Emission Line are particularly suitable for tunnel and night construction sites, events, power supply for residential containers, tools and electrical devices, as well as for use as a UPS system. Their compact Euro pallet dimensions make them light and easy to transport.

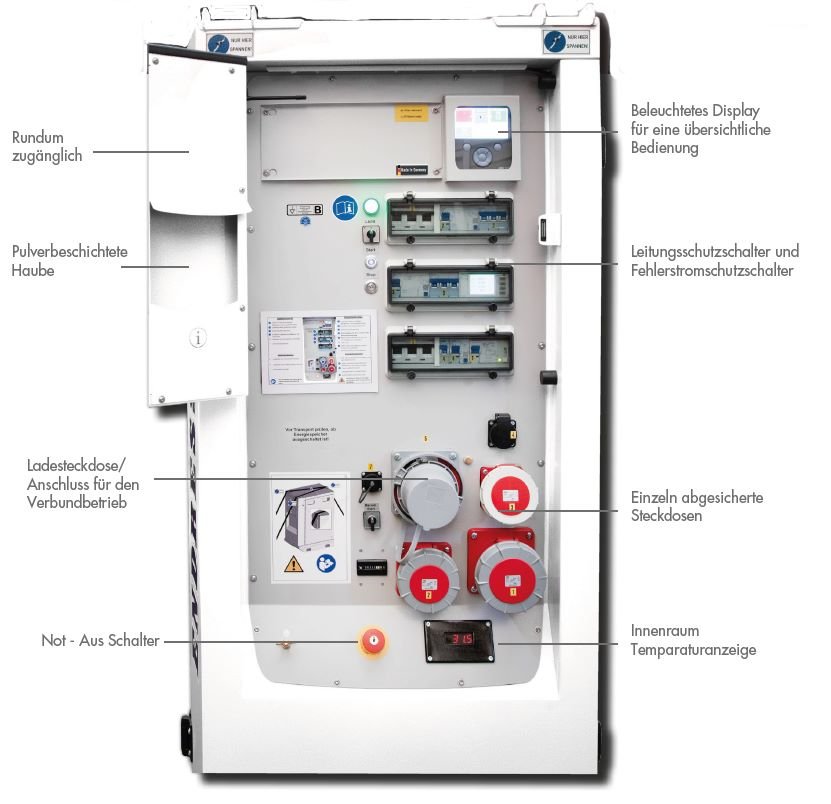

The EES Zero Emission Line models are controlled directly on the device or additionally conveniently and easily via a PC or mobile device. For this purpose, the energy storage devices are compatible with E-RMA and the Connect app. To ensure safe use, the ENDRESS energy storage sockets are each equipped with their own circuit breaker and residual current circuit breaker. In addition, the model has a battery monitoring system. Instead of the conventional terminal strips, there is the option of installing a Powerlock connector strip.
You too can benefit from the advantages of an emission-free, efficient and quiet power source with the ENDRESS energy storage devices from the Zero Emission Line - Made in Germany!
