Endress | SKU: ES-00015

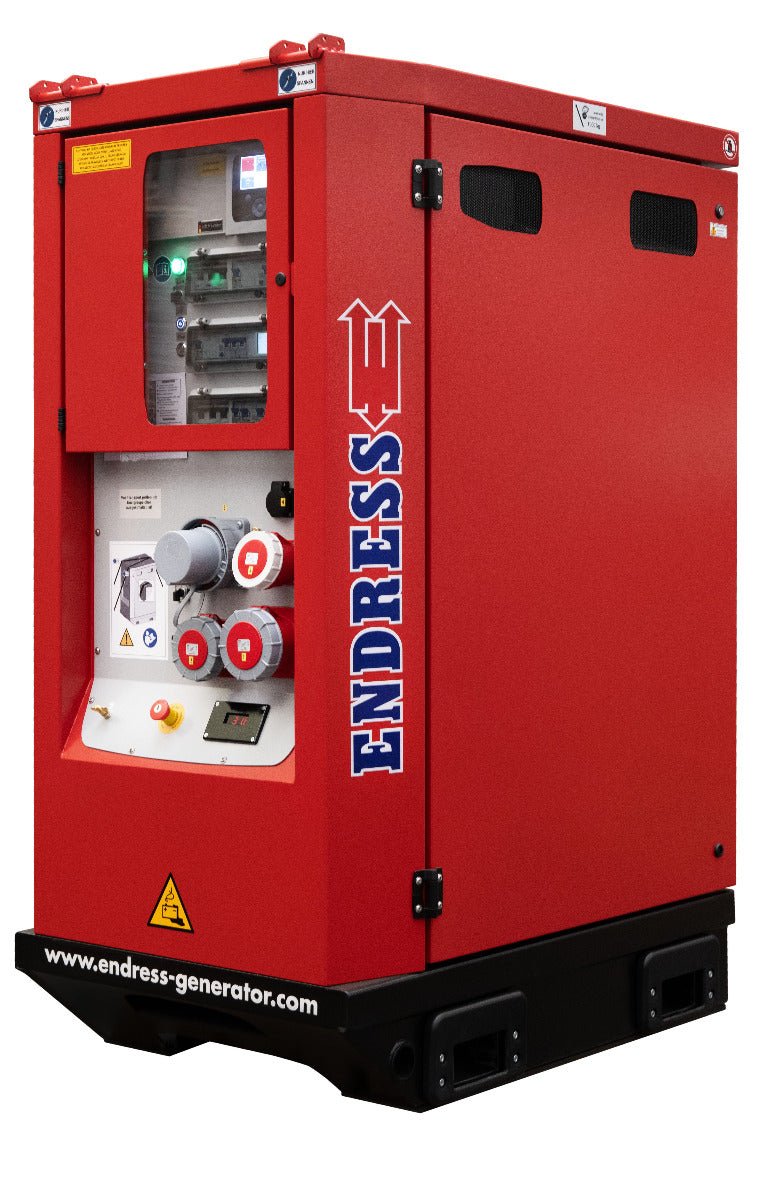

Energy storage ENDRESS EES D 15/15

Name: Energy storage ENDRESS EES D 15/15
Brand: Endress
SKU: ES-00015
Price: 4949200.0 DZD
Availability: InStock

DA 4,949,200.00 ~~DA 5,600,200.00~~

Shipping will be calculated at checkout.

Energy storage ENDRESS EES D 15/15 is not in stock and will be shipped as soon as available again.

Delivery time: approx. 10 weeks

Questions to the product?

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Shipping Information

Shipping costs are calculated based on the weight and the destination country. A shipping cost calculator for the entire contents of the shopping cart is available here on the product page (below the price information).

We ship up to approx. 30 kg with parcel service. We ship items with higher weight using general cargo freight forwarding or, in the case of large units, by direct transport.

Please contact us if you have special delivery requirements.

Innovative battery storage system with lithium-ion batteries, safe and easy operation thanks to a clear control panel, can be switched in parallel to increase capacity, combination of energy storage and power generator achieves a downsizing of the required power generator by approx. 30%.
Base frame with continuous forklift tabs, crane loading eye, Euro pallet dimensions (W 120cm x D 80cm), all-round access through large maintenance doors, sophisticated cooling - air intake via air filter element from above for dust-free interior, operating temperature range -10°C / +50°C.
Peak output power of 30 kVA, output power (continuous power) 12 kVA, battery rated capacity 15 kWh, weight 700 kg
Optional accessories: 4G/GPS module including antennas, Bluetooth module, FI circuit breaker type B all-current sensitive, version B according to DGUV information 203-032 as an IT system

Technical data of the Endress EES energy storage:

Power section		EES D 15/15	EES D 15/30	EES D 30/30
Order No.		610023	610024	610022
Rated power	kVA	15	15	30
Continuous performance at 25°C	kVA	12	12	22.5
Peak performance at 25°C	kVA	30	30	60
Nominal voltage	V	400/230	400/230	400/230
Output rated current in island operation	A	17.5	17.5	35
Output rated current in the network max.	A	125	125	125
Protection class	IP	54	54	54

Dimensions and Weight
Weight approx.	kg	700	850	900
Dimensions L x W x H	mm	1200 x 800 x 1750	1200 x 800 x 1750	1200 x 800 x 1750

Battery system
Rated capacity	kWh	15	30	30
Battery charge cycles		6000	6000	6000
Operating temperature range	°C	-10 to +50	-10 to +50	-10 to +50
Charging time approx.	h	1.4	2.8	1.8

Sockets

EES D 15/15

EES D 15/30

EES D 30/30

Input socket

CEE 400V/125A

Output sockets

2x 230 V / 16A

1x CEE 400 V / 32A

1x CEE 400 V / 63A

1x CEE 400 V / 125A

2x 230 V / 16A

1x CEE 400 V / 32A

1x CEE 400 V / 63A

1x CEE 400 V / 125A

2x 230V / 16A

1x CEE 400V / 32A

1x CEE 400V / 63A

1x CEE 400V / 125A

Optional accessories:

4G/GPS module incl.Antennas, Bluetooth module, FI circuit breaker type B all-current sensitive, version B according to DGUV Information 203-032 as an IT system

Lithium-ion Technology

6000 Charging cycles
Almost maintenance-free
usable energy in a wide power range thanks to high charging and discharging depth
Can be used at both high and low ambient temperatures of -10˚°C to 50°C

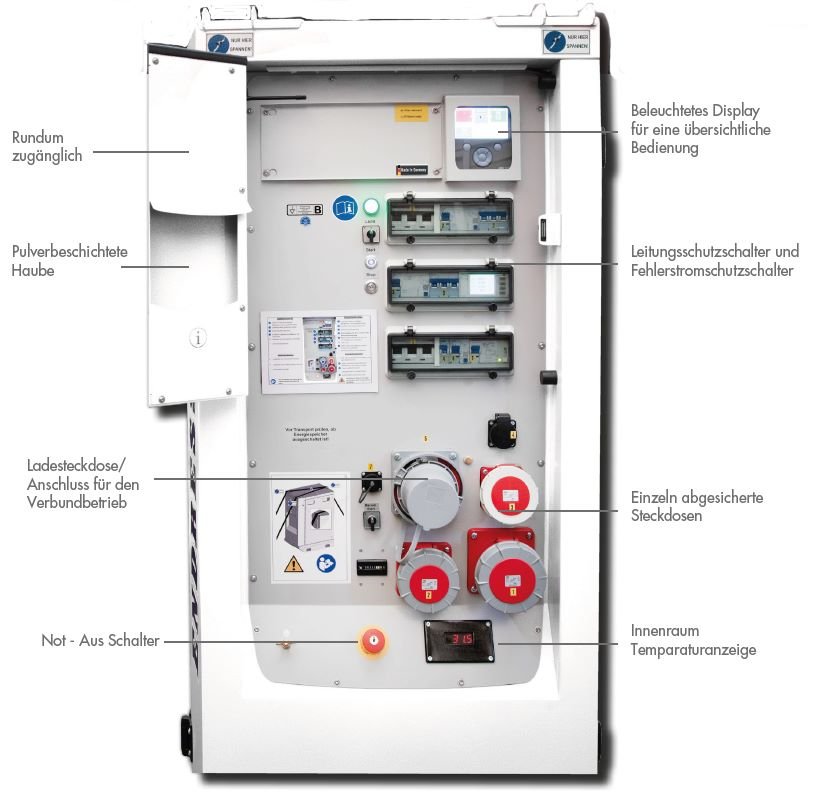

Secure Installation

Emergency stop Switch
Powerlock power strip (optional)
Sockets for every consumer
Pass-through limitation 11 - 100A
incl.Grounding stake (for network type TN-S)

The mobile Solution

Made in Germany
compact Euro pallet dimensions and forklift tabs for easy transport
Integrated lifting eye for crane transport
Plastic wear plates as frame protection
Extra large Maintenance doors
Powder coated Hood

Digital connected

Communication with Battery management
Intelligent start - stop function for operating the power generator
Remote monitoring system using Bluetooth mobile device app and desktop (E-RMA) (optionally available)
