SDMO Kohler | SKU: MD-00001

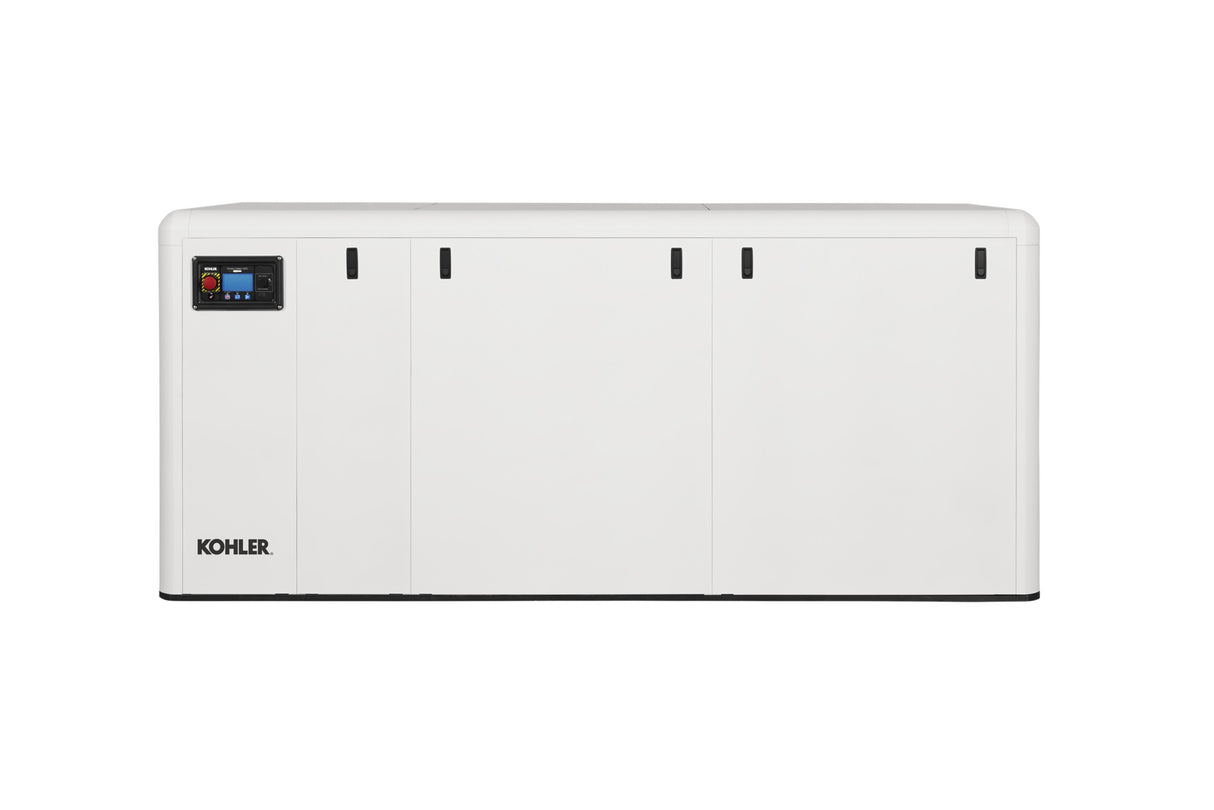

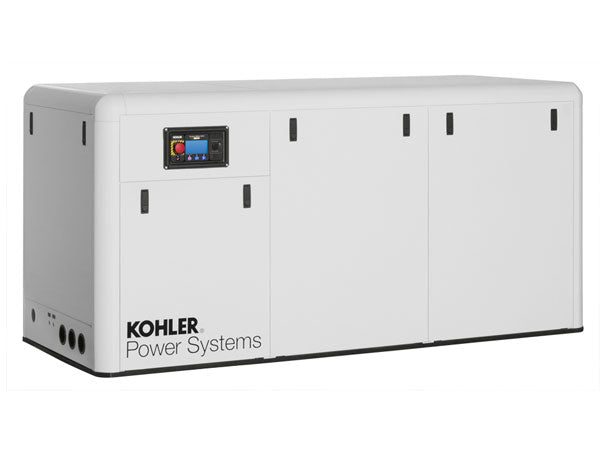

rehlko 175EFOZDJ Marine-Dieselgenerator 175 kW mit Schallhaube

Name: rehlko 175EFOZDJ Marine-Dieselgenerator 175 kW mit Schallhaube
Brand: SDMO Kohler
SKU: MD-00001
Price: 15095700.00 DZD
Availability: InStock

DA 15,095,700.00

Versand wird an der Kasse berechnet.

Lieferzeit: ca. 6 Monate

Fragen zum Produkt?

Kontaktieren Sie uns:

Tel.: 07622 / 6971 150

Mail: sev@sev-stromerzeuger.com

Versandinformationen

Versandkosten werden anhand des Gewichtes und des Ziellandes berechnet. Es steht Ihnen ein Versandkostenkalkulator für den gesamten Inhalt des Warenkorbes hier auf der Produktseite zur Verfügung (unterhalb der Preisinformation).

Wir versenden bis ca. 30 kg mit Paketdienst. Artikel mit höherem Gewicht versenden wir mit Stückgutspedition oder bei großen Aggregaten per Direktfahrt.

Kommen Sie für besondere Anlieferanforderungen gerne auf uns zu.

219 kVA / 175 kW Prime Power, 400V / 230V, 50Hz, 3Ph, 400A, 175 kWe @ 1.500 min-1, 24 V Battery

Scope of delivery:
· Literature Language English
· Approvals and Listings Lloyd's Type Approval
· Generator 175EFOZDJ, 24V, 50Hz, Keel Cooling
· Nameplate Rating Prime 115C Rise
· Voltage 50Hz, 230/400V, Wye, 3Ph, 4W
· Alternator 4UA10
· Skid and Mounting Rectangular Focused Mounts
· Controller DEC3500
· Sound Enclosure, Installed Sound Shield
· Electrical Accy., Installed Generator Heater
· Dry Contacts, Installed 15 Relay
· Line Circuit Breaker, Installed Circuit Breaker, 3 Pole
· Line Circuit Breaker Amps 400
· Fuel Lines, Installed Double Wall w/Leak Alarm
· Packaging Export Packing
· Warranty Standard

rehlko maritime diesel generator 175 kW

The Rehlko 175EFOZDJ is a high-performance marine diesel generator set designed for demanding maritime applications. This 50 Hz, 3-phase generator offers robust power output and reliability for various vessel types.

Key Features

Power Output: 175 kW / 219 kVA prime rating
Voltage Options: Multiple reconnectable voltage configurations (110/190V, 110/220V, 120/208V, 220/380V, 230/400V, 240/416V)
Engine: 6-cylinder, inline, 4-cycle diesel engine with turbocharging and aftercooling2
Displacement: 9.0 L (549 cu. in.)
Rated Speed: 1500 rpm
Fuel Efficiency: 53.1 L/h (14.0 gal/h) at 100% load

Technical Specifications

Engine Performance:

Maximum power at rated rpm: 261 HP
Compression ratio: 16.3:1
Direct injection combustion system

Electrical System:

12V or 24V battery options
60A charging alternator (24V system)

Cooling System:

Heat exchanger cooling type
Seawater pump with 3.0 m (10.0 ft) maximum suction lift
Engine water pump flow: 268 Lpm (70.8 gpm)

Fuel System:

High Pressure Common Rail (HPCR) fuel injection system
Compatible with EN 590 or ASTM D975 diesel fuel
Approved for use with certified renewable Hydrotreated Vegetable Oil (HVO) / Renewable Diesel (RD) fuels

Alternator:

Brushless, permanent-magnet excitation system
Class H insulation with 90°C temperature rise
±0.5% voltage regulation (no load to full load)
2% total harmonic distortion

Advanced Control System

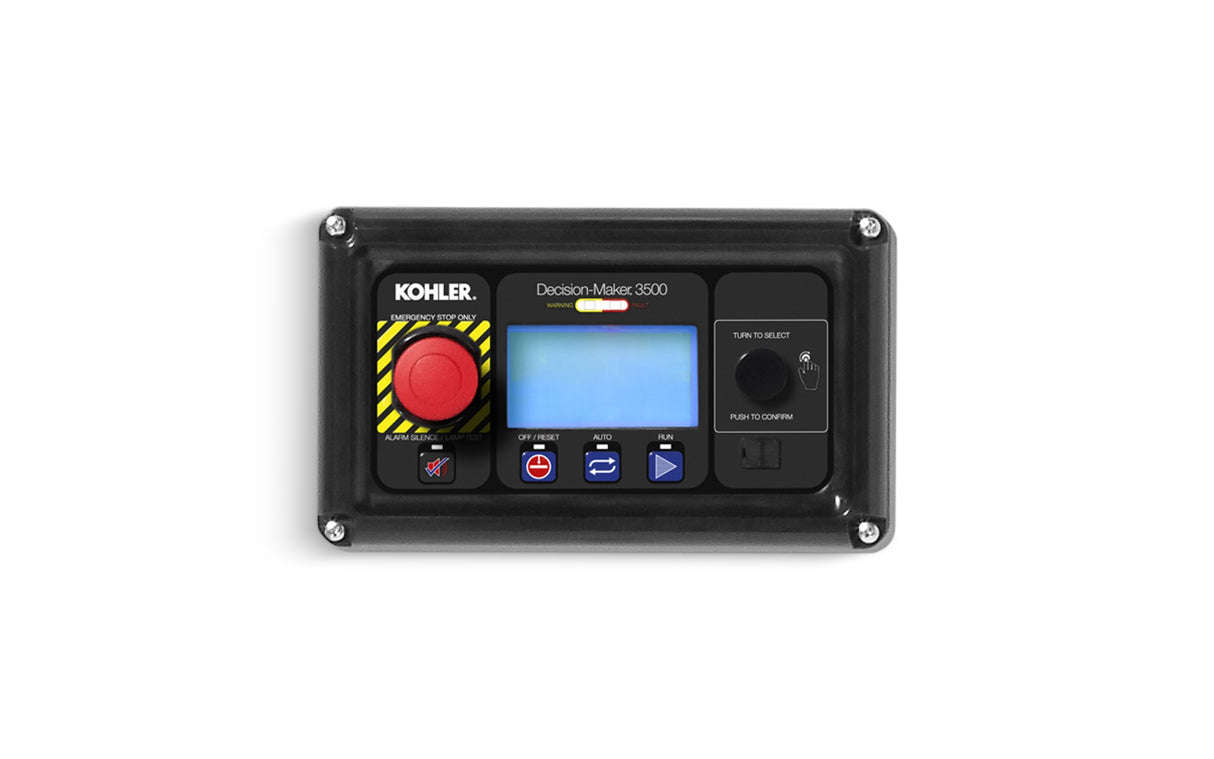

The Decision-Maker® 3500 Paralleling Controller provides:

Advanced system monitoring and diagnostics
Graphical display for easy data access
Modbus® protocol support for network integration
Integrated hybrid voltage regulator

Certifications and Compliance

Optional type approvals available from major maritime classification societies (DNV-GL, CCS, Lloyd's Register, BV, ABS)
EPA Marine Tier III compliant (60 Hz model)

Dimensions and Weight without sound shield

Length: 2490 mm (98.04 in.)
Width: 970 mm (38.19 in.)
Height: 1086 mm (42.76 in.)
Wet Weight: 2067 kg (4558 lb.)

Dimensions and Weight with sound shield

Length: 2661 mm (104.76 in.)
Width: 1048 mm (41.26 in.)
Height: 1174 mm (46.21 in.)
Wet Weight: 2466 kg (5437 lb.)

The Rehlko 175EFOZDJ marine generator set combines robust performance, fuel flexibility, and advanced control features, making it an ideal choice for maritime professionals seeking reliable power generation solutions for their vessels.
